MV06340004
Solenoid valve DN20 G 3/4" Inch NBR 110V brass
- Delivery time
- 3 - 5 working days
Equipment
hose nozzle 3/4" 19.0 mm stainless steel 1.4408 ST01
€4.28 VAT included.
hexagon nipple 3/4" inch male stainless steel 316
€3.45 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

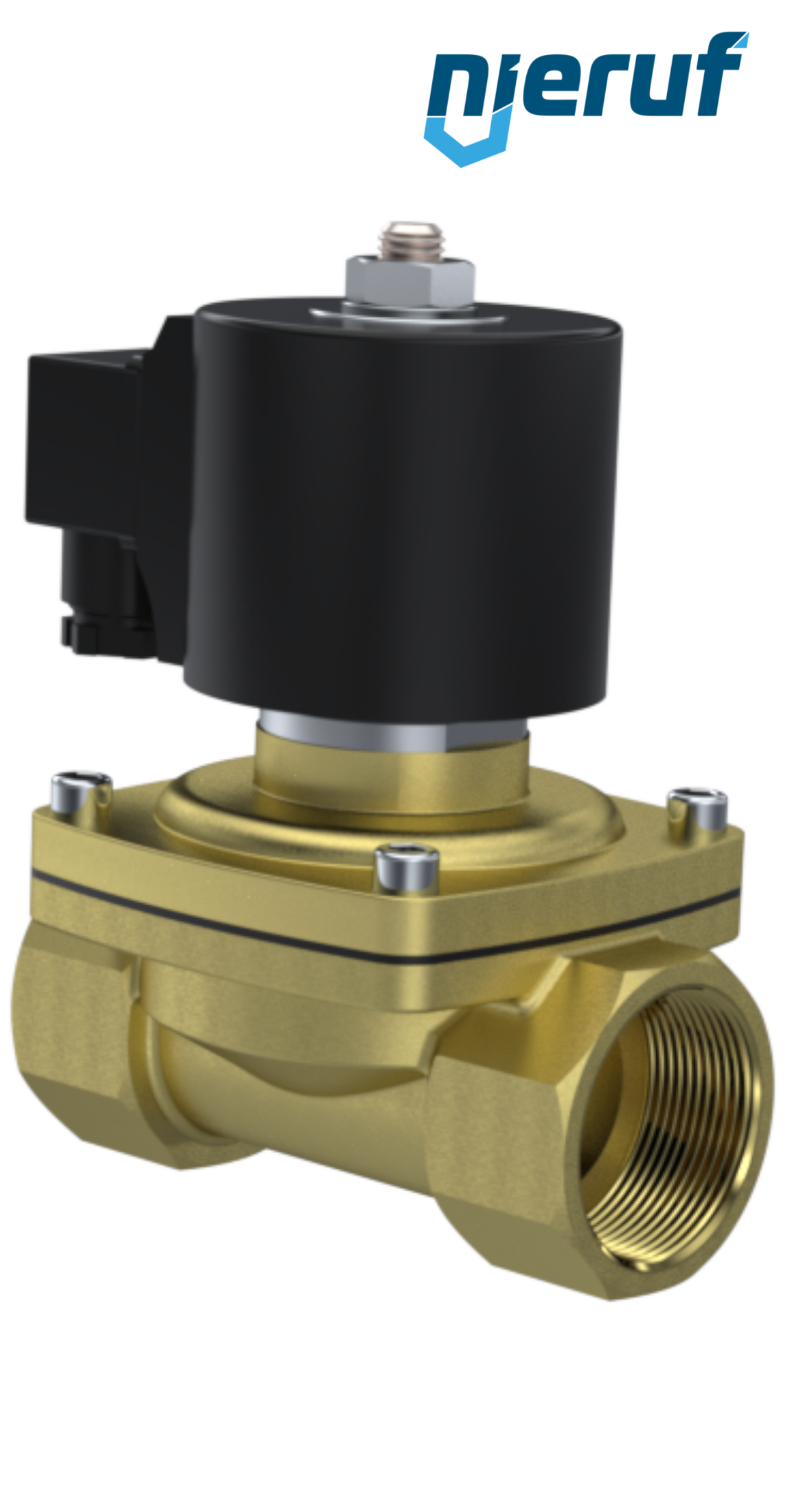

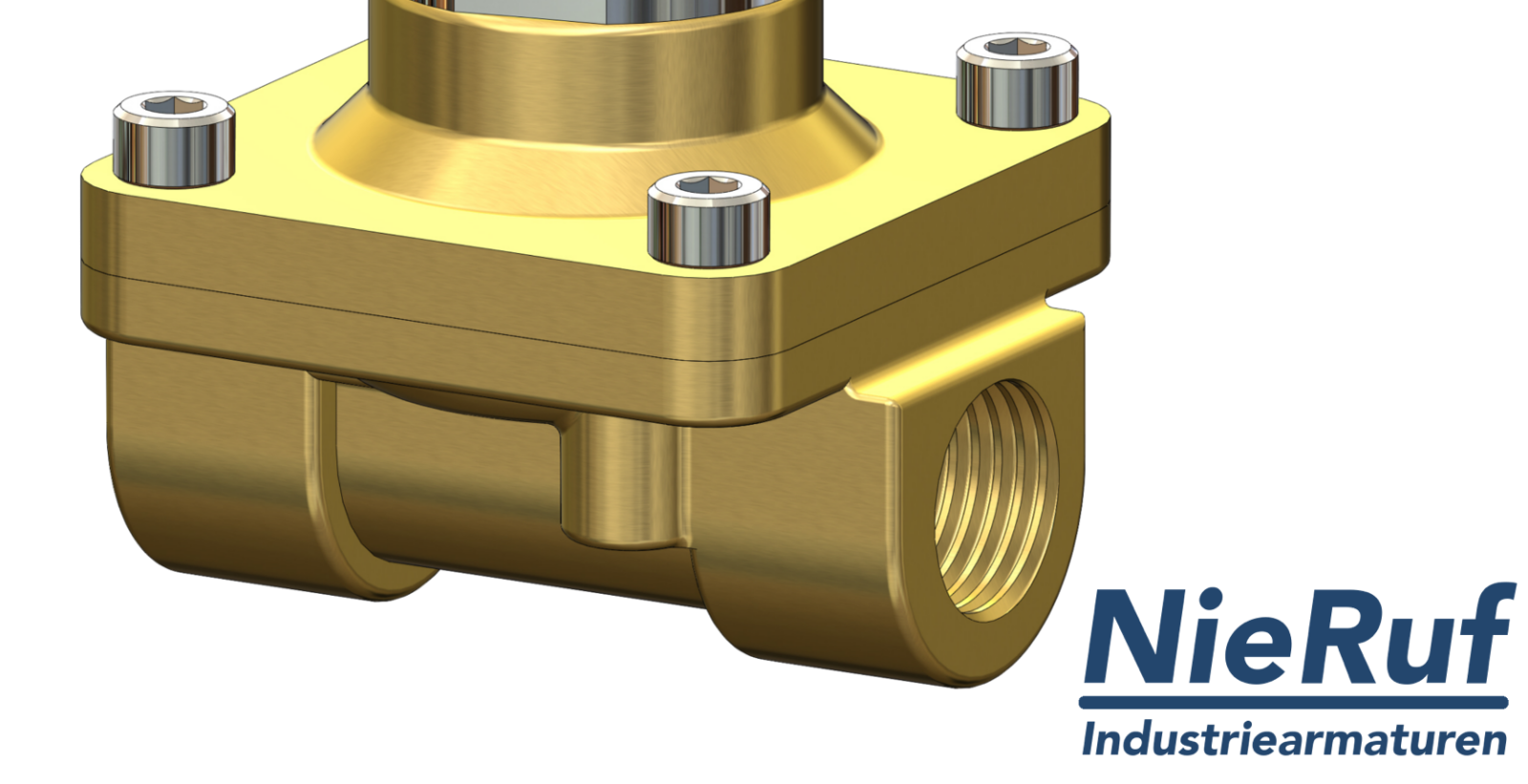

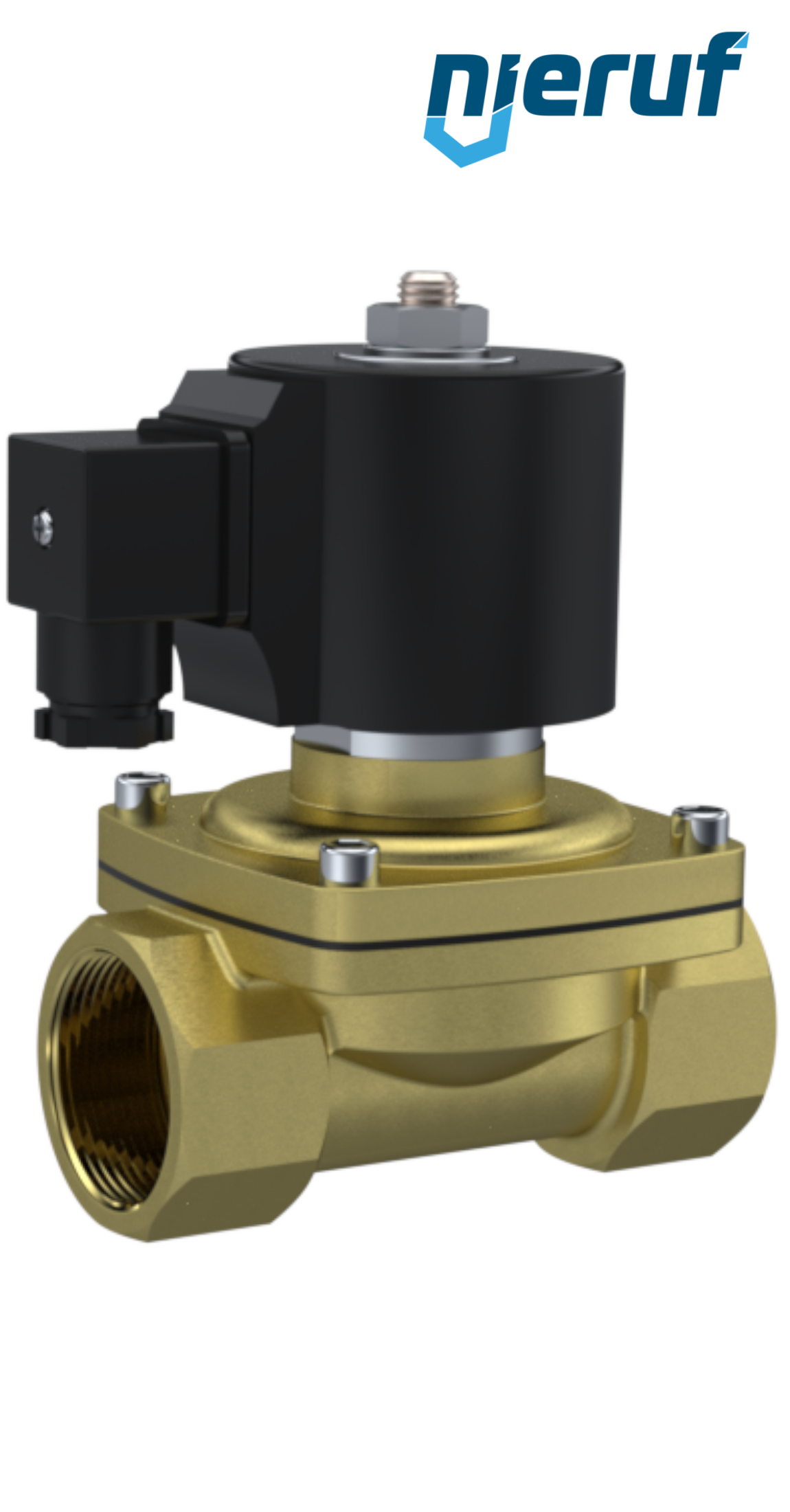

Solenoid valve DN20 G 3/4" Inch NBR 110V brass
110V Solenoid valve DN20 G 3/4" Inch NBR Type MV06 NC - normally closed brass liquid and gaseous media
| product | Solenoid valve |
|---|---|
| type | MV06 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN20 |
| connection | G 3/4" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 6.5 m³/h |
| function | NC - normally closed |
| control | force pilot operated |
| material | brass |
| seal | NBR |
| voltage | 110V |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 20 VA |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | liquid and gaseous media |
| temperature media | -10°C up to +90°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0.0 - 8 bar |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve DN20 G 3/4" Inch NBR 110V brass
Article no.
: MV06340004
product:
Solenoid valve
type:
MV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN20
connection:
G 3/4" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
6.5 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
brass
seal:
NBR
voltage:
110V
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
20 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +90°C
temperature ambiente:
max up to +50°C
max. pressure:
0.0 - 8 bar
installation position:
any position, solenoid preferably standing
