NA01000003

3/2 ways NAMUR-Solenoid valve G 1/2" Inch NA01 230V 50Hz

€184.50*

€219.56 VAT included.

*Prices excl. VAT plus shipping costs

Delivery time: 2 - 3 weeks

Equipment

EF07000310

rotary elbow male adaptor parallel EF07 brass NBR G1/2" D10mm

€4.20*

€5.00 VAT included.

EF01000308

Straight male adaptor EF01 brass NBR G1/2" D8mm

€2.30*

€2.74 VAT included.

SD01000003

Silencer 1/2" inch made of sintered bronze

€4.80*

€5.71 VAT included.

Resistance check

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE

24 months warranty

Downloads

3D model

Datasheet

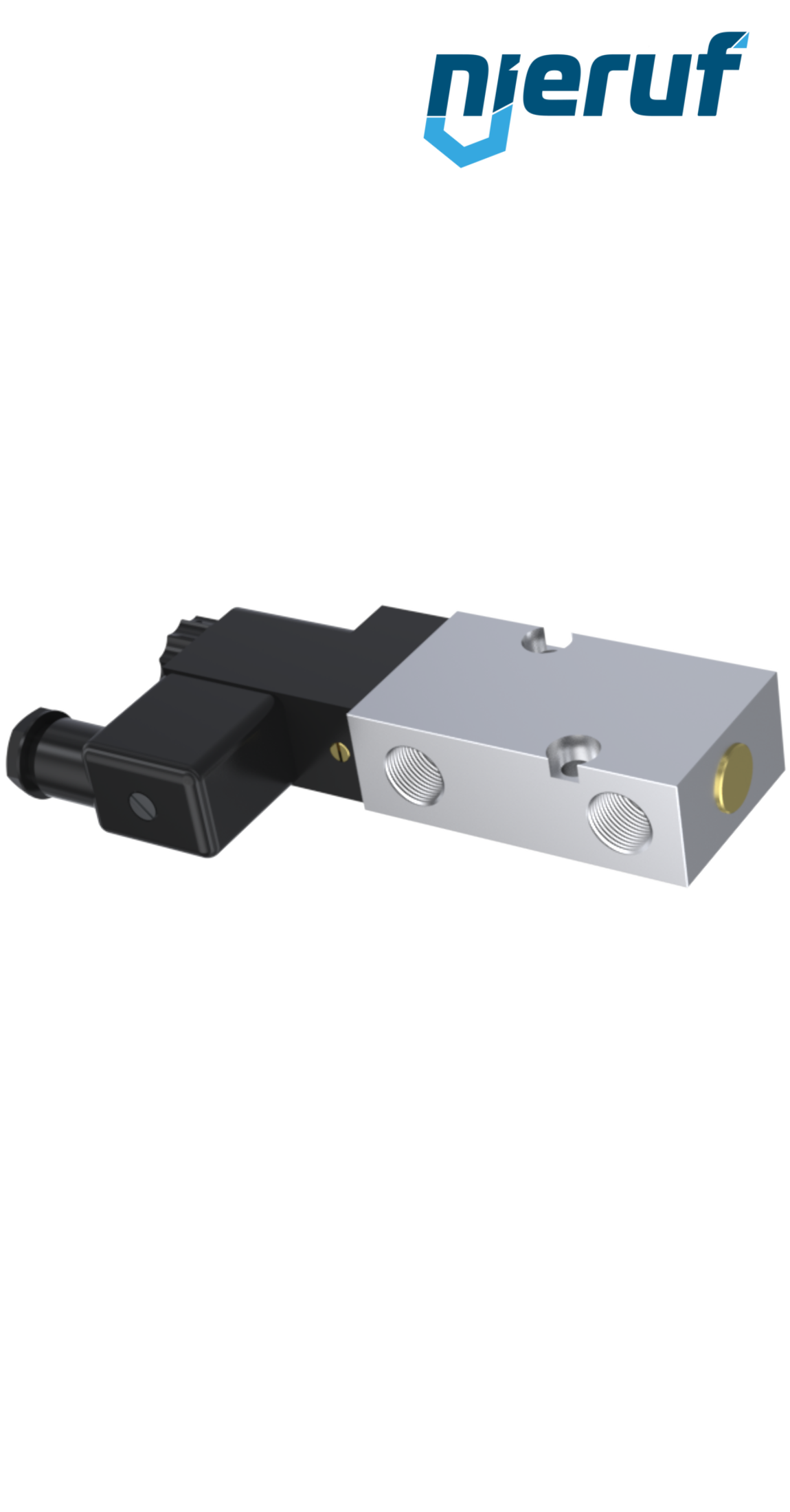

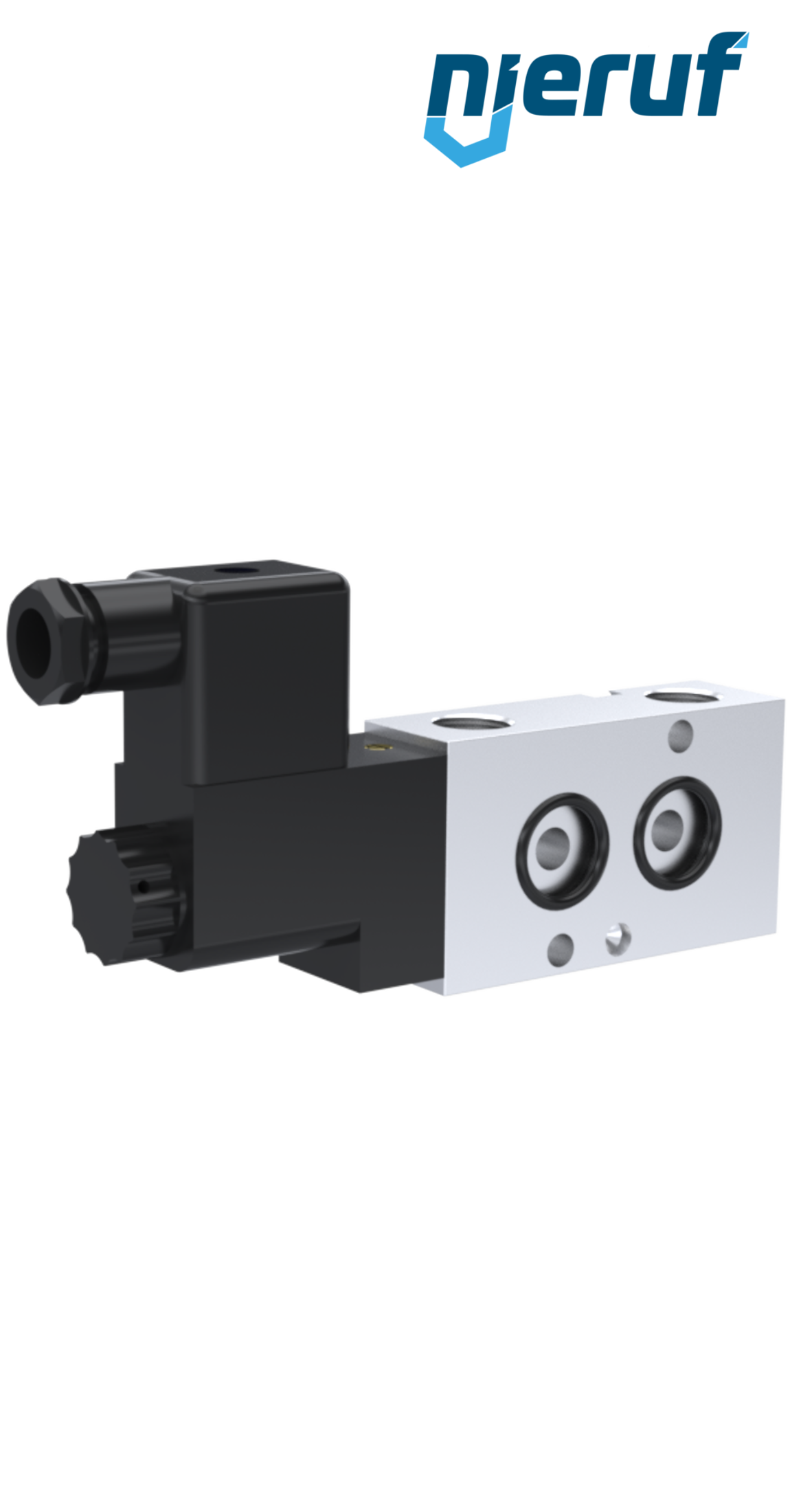

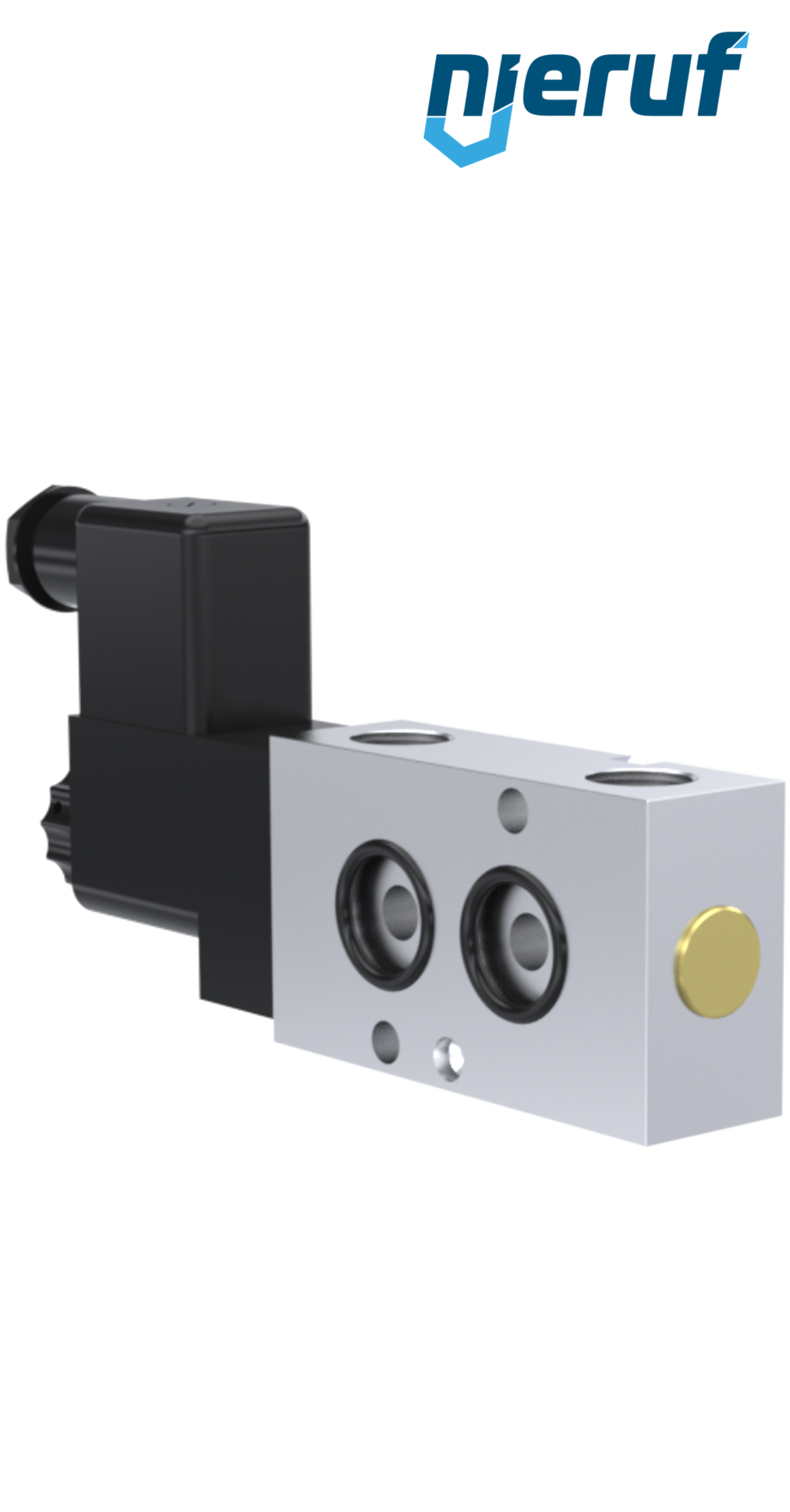

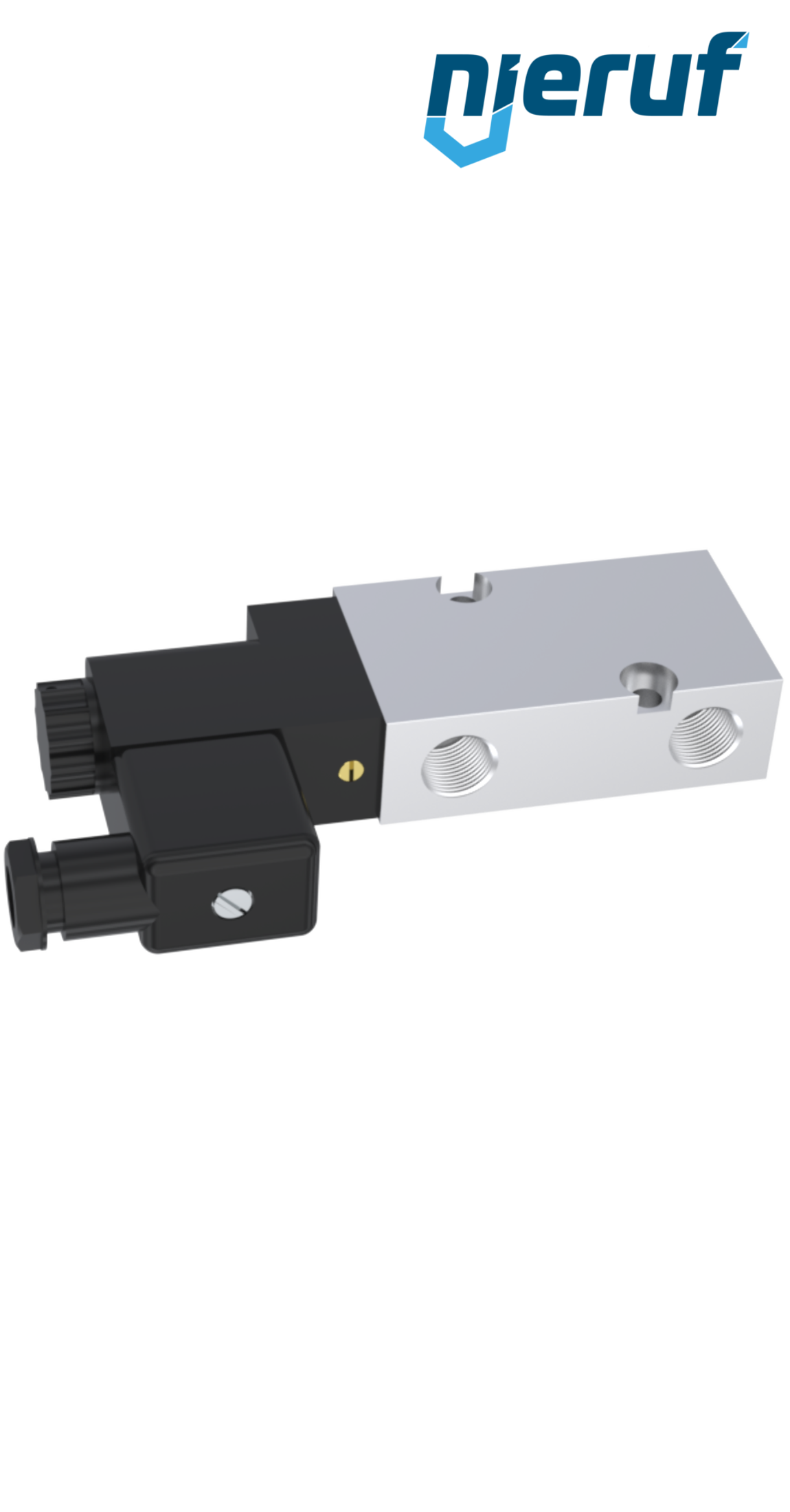

3/2 ways NAMUR-Solenoid valve G 1/2" Inch NA01 230V 50Hz

3/2 ways NAMUR Solenoid valve G 1/2" Inch made of aluminium NBR voltage 230V AC Druck 1,0 - 10,0 bar

product	Solenoid valve
type	NA01
manufacturer	NieRuf
design	Namur-valve with spring chamber ventilation
diameter	DN12,0
connection	G 1/2" Inch
type of connection	Namur
Type of design	3/2 ways
flow rate	3000 l/min
function	spring chamber ventilation
material	aluminium
seal	NBR
voltage	230V AC
media	pressure air
temperature ambiente	max up to +80°C
max. pressure	1,0 - 10,0 bar
installation position	any position, solenoid valve preferably upwards

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

3/2 ways NAMUR-Solenoid valve G 1/2" Inch NA01 230V 50Hz

Article no. : NA01000003
product: Solenoid valve
type: NA01
manufacturer: NieRuf
design: Namur-valve with spring chamber ventilation
diameter: DN12,0
connection: G 1/2" Inch
type of connection: Namur
Type of design: 3/2 ways
flow rate: 3000 l/min
function: spring chamber ventilation
material: aluminium
seal: NBR
voltage: 230V AC
media: pressure air
temperature ambiente: max up to +80°C
max. pressure: 1,0 - 10,0 bar
installation position: any position, solenoid valve preferably upwards
