NA01010003
3/2 ways NAMUR-Solenoid valve G 1/2" Inch NA01 24V DC
- Delivery time
- 2 - 3 weeks
Equipment
rotary elbow male adaptor parallel EF07 brass NBR G1/2" D10mm
€5.00 VAT included.
Straight male adaptor EF01 brass NBR G1/2" D8mm
€2.74 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

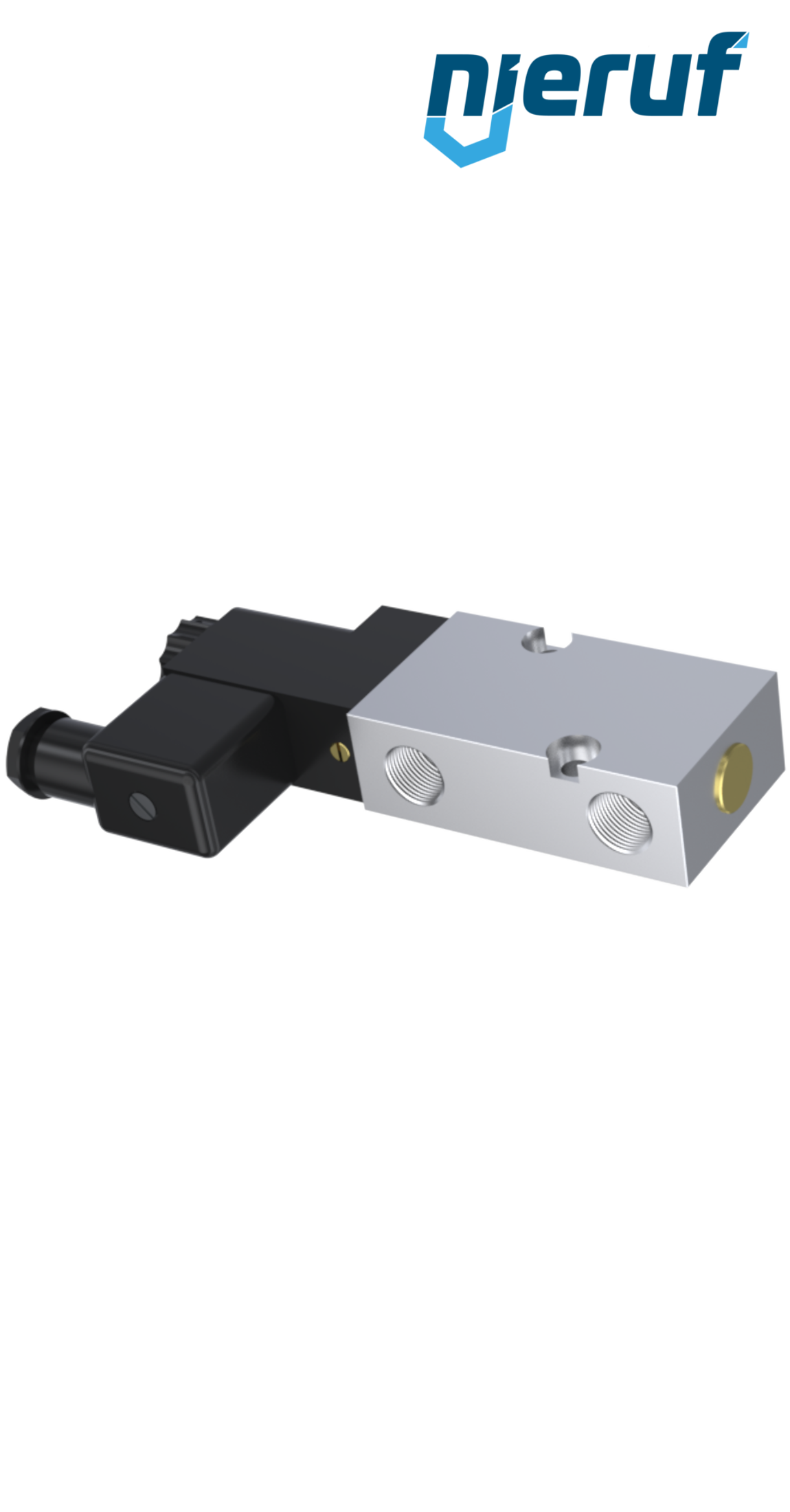

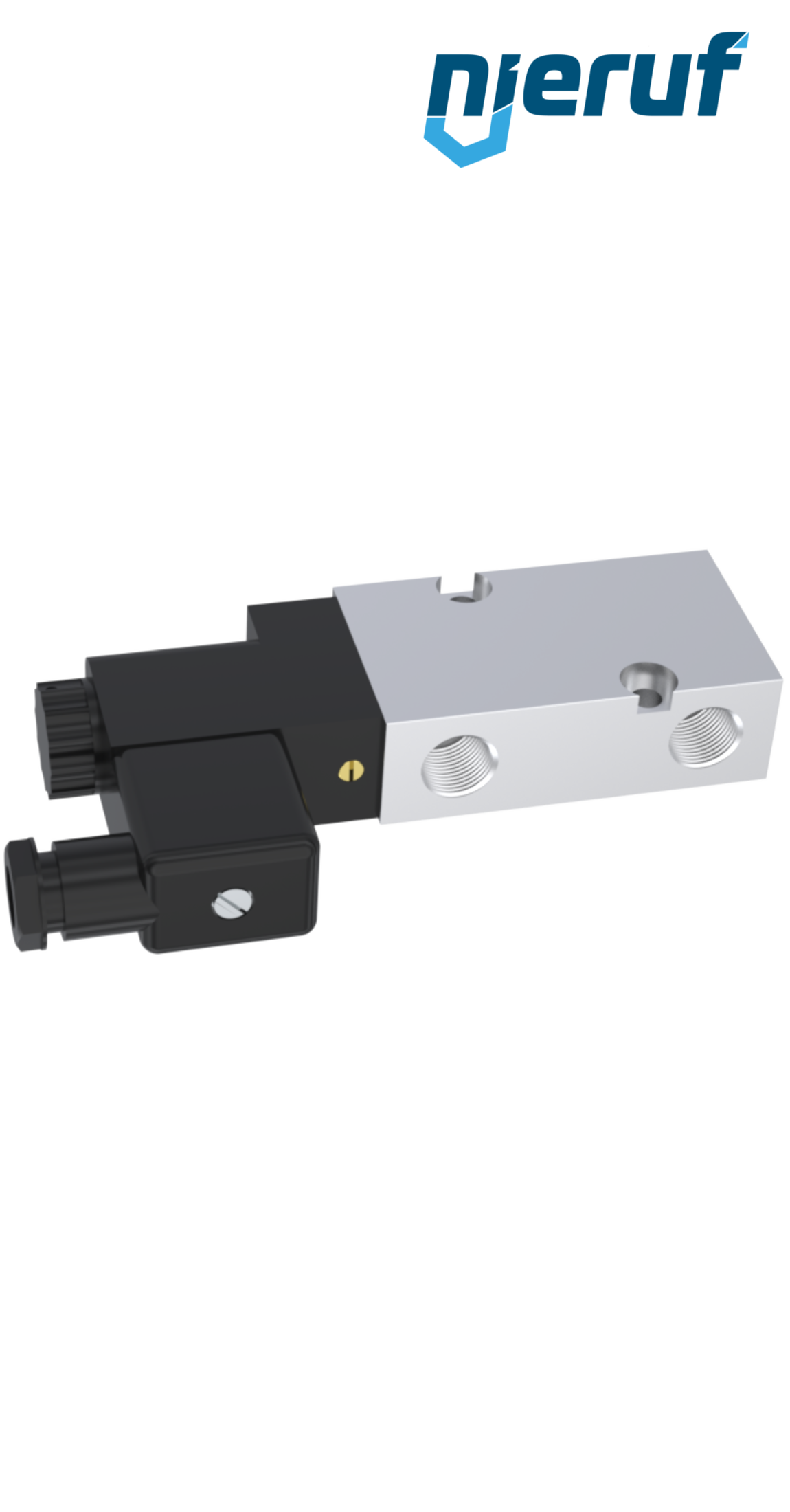

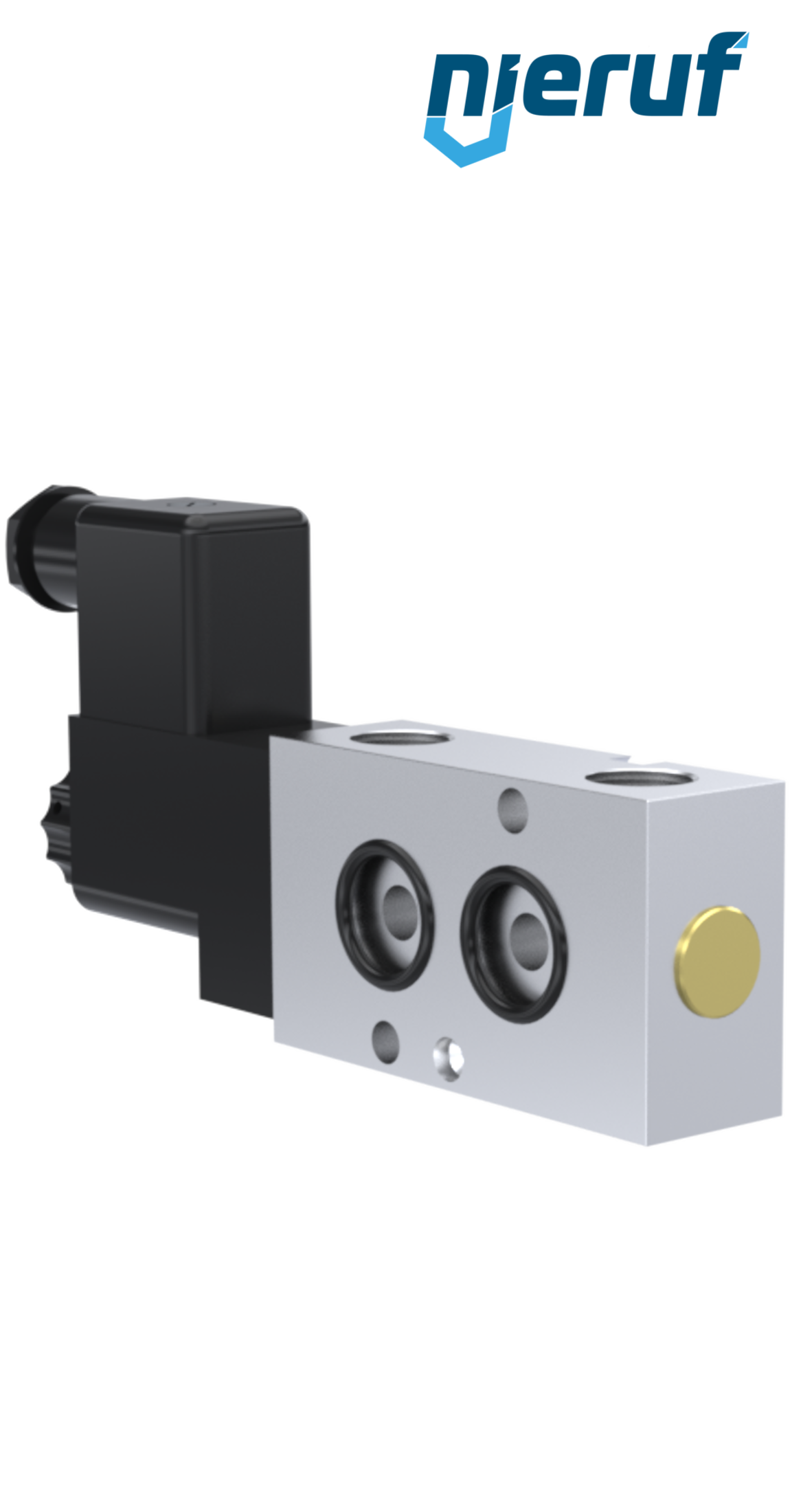

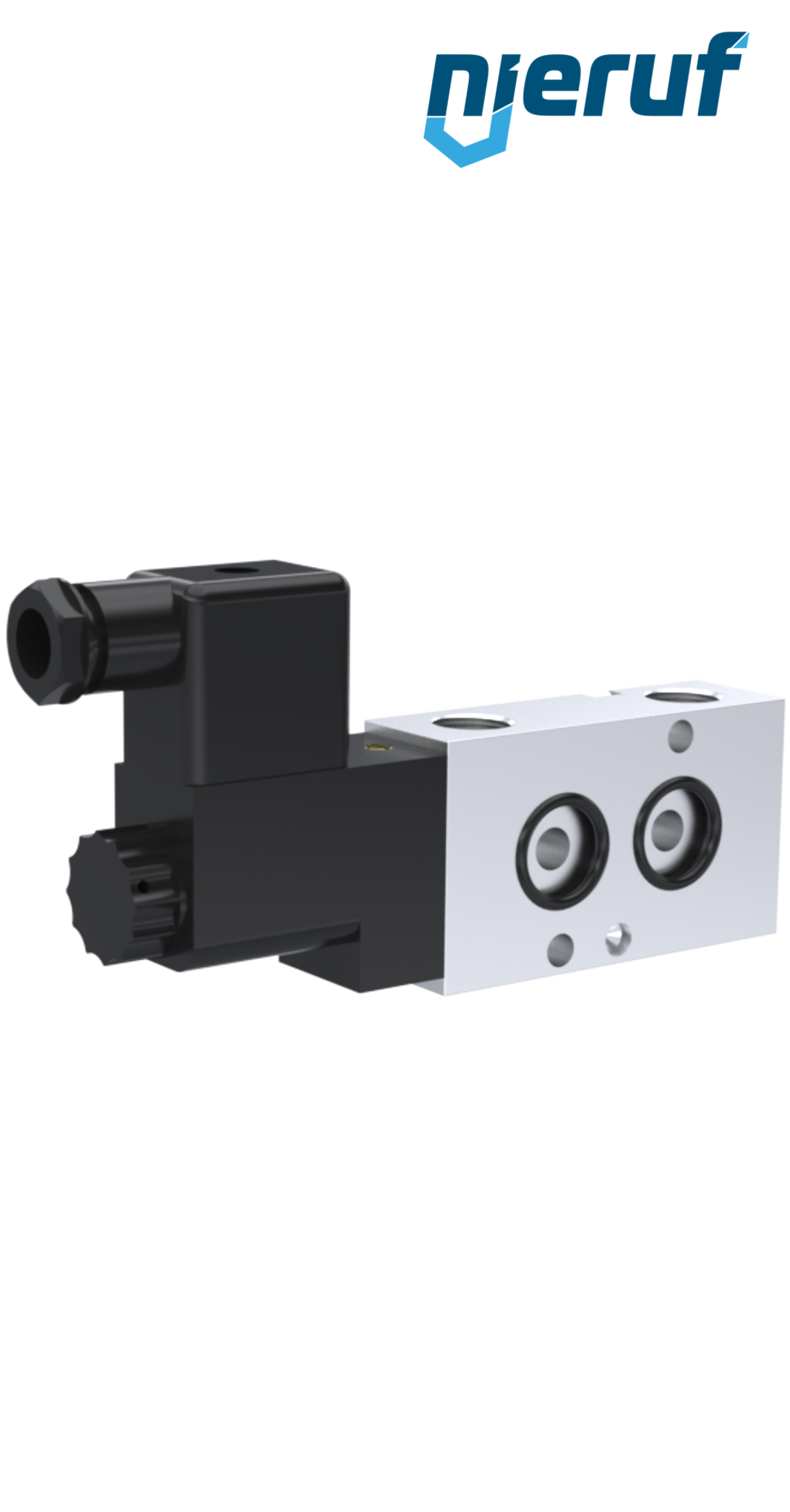

3/2 ways NAMUR-Solenoid valve G 1/2" Inch NA01 24V DC
3/2 ways NAMUR Solenoid valve G 1/2" Inch made of aluminium NBR voltage 24V DC Druck 1,0 - 10,0 bar
| product | Solenoid valve |
|---|---|
| type | NA01 |
| manufacturer | NieRuf |
| design | Namur-valve with spring chamber ventilation |
| diameter | DN12,0 |
| connection | G 1/2" Inch |
| type of connection | Namur |
| Type of design | 3/2 ways |
| flow rate | 3000 l/min |
| function | spring chamber ventilation |
| material | aluminium |
| seal | NBR |
| voltage | 24V DC |
| media | pressure air |
| temperature ambiente | max up to +80°C |
| max. pressure | 1,0 - 10,0 bar |
| installation position | any position, solenoid valve preferably upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
3/2 ways NAMUR-Solenoid valve G 1/2" Inch NA01 24V DC
Article no.
: NA01010003
product:
Solenoid valve
type:
NA01
manufacturer:
NieRuf
design:
Namur-valve with spring chamber ventilation
diameter:
DN12,0
connection:
G 1/2" Inch
type of connection:
Namur
Type of design:
3/2 ways
flow rate:
3000 l/min
function:
spring chamber ventilation
material:
aluminium
seal:
NBR
voltage:
24V DC
media:
pressure air
temperature ambiente:
max up to +80°C
max. pressure:
1,0 - 10,0 bar
installation position:
any position, solenoid valve preferably upwards
