GK09010002

3-way ball valve DN10 - 3/8" inch GK09 stainless steel L drilling

€47.00*

€55.93 VAT included.

*Prices excl. VAT plus shipping costs

Delivery time: in stock

Equipment

GF01300002

hexagon nipple 3/8" inch male stainless steel 316

€1.70*

€2.02 VAT included.

ST01000002

hose nozzle 3/8" 11.0 mm stainless steel 1.4408 ST01

€2.40*

€2.86 VAT included.

Resistance check

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE

NieRuf-Exchange

Certified

Downloads

3D model

Datasheet

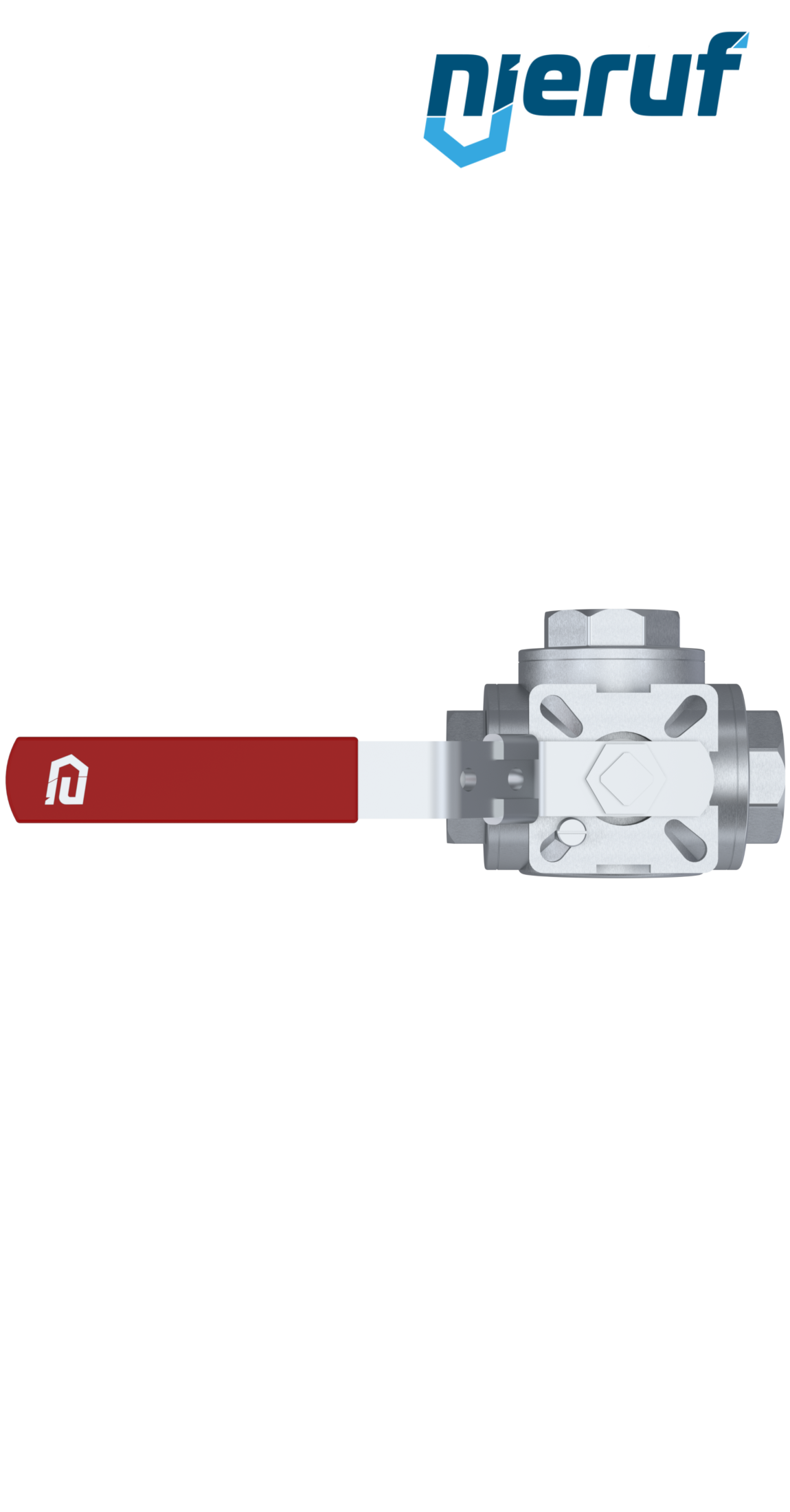

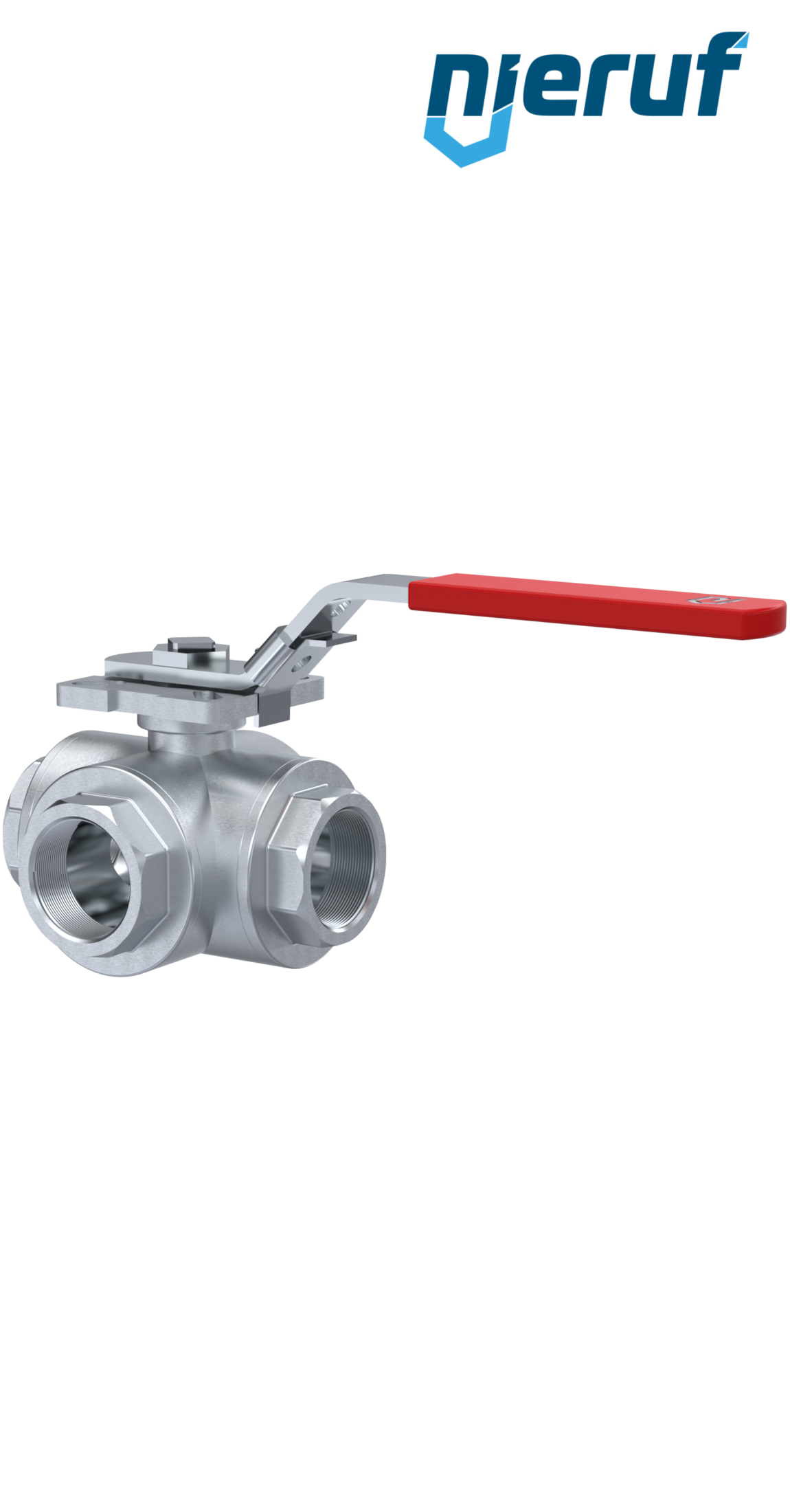

3-way ball valve DN10 - 3/8" inch GK09 stainless steel L drilling

3-way ball valve DN10 - 3/8" inch L drilling seal made of PTFE in stainless steel for liquid and gaseous media

product	3-way ball valve
type	GK09
manufacturer	NieRuf
diameter	DN10 - 3/8" inch
connection	female thread
Seal steam	PTFE
ball seal	PTFE
media	liquid and gaseous media
temperature	-25°C up to +180°C - depending on working pressure and media
max. pressure	PN40
design	L drilling
body material	stainless steel 1.4408
ball material	stainless steel
actuator	hand lever made of stainless steel with locking device
installation position	any position
product description	This high quality three-way ball valve is made of stainless steel with blow out proof stem design, floating ball and 4 ball seats. This valve has a L-drilling.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

3-way ball valve DN10 - 3/8" inch GK09 stainless steel L drilling

Article no. : GK09010002
product: 3-way ball valve
type: GK09
manufacturer: NieRuf
diameter: DN10 - 3/8" inch
connection: female thread
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: -25°C up to +180°C - depending on working pressure and media
max. pressure: PN40
design: L drilling
body material: stainless steel 1.4408
ball material: stainless steel
actuator: hand lever made of stainless steel with locking device
installation position: any position
product description: This high quality three-way ball valve is made of stainless steel with blow out proof stem design, floating ball and 4 ball seats. This valve has a L-drilling.
