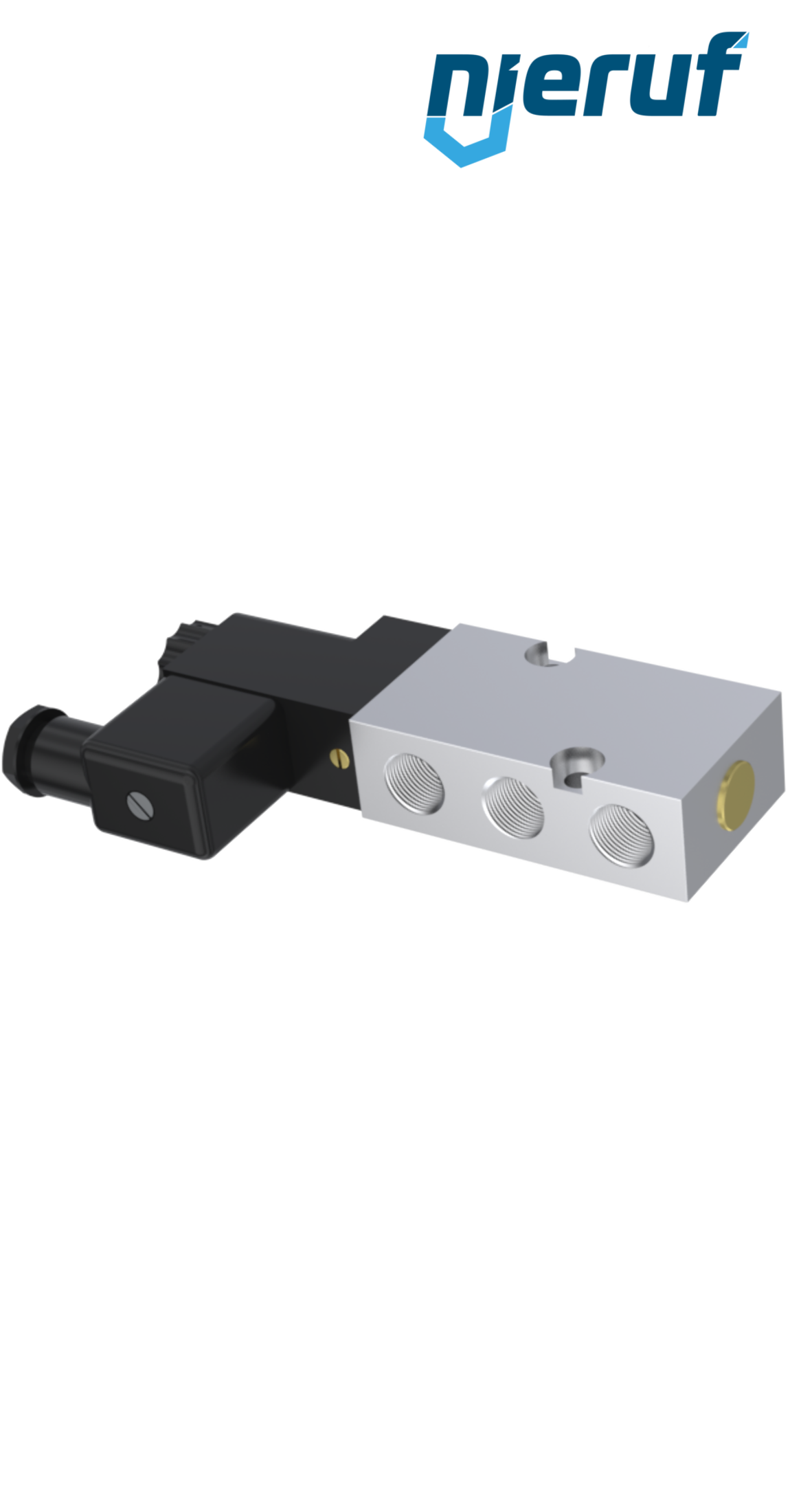

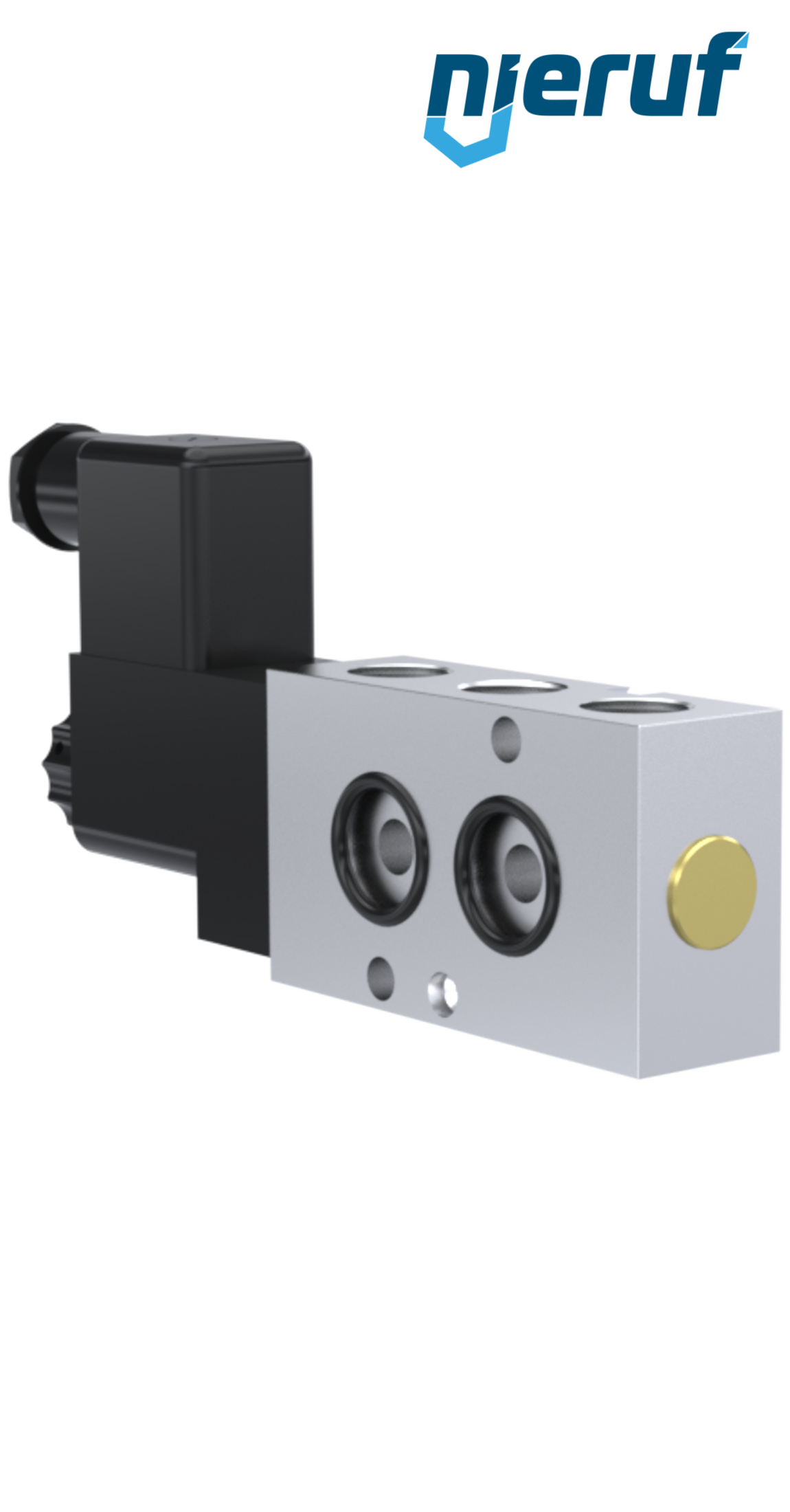

5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC
5/2 ways NAMUR Solenoid valve G 1/4" Inch DN 8 made of aluminium NBR voltage 24V DC Druck 2,0 - 10,0 bar
| product | Solenoid valve |
|---|---|
| type | NA02 |
| manufacturer | NieRuf |
| design | Namur-valve with spring chamber ventilation |
| diameter | DN 8 |
| connection | G 1/4" Inch |
| type of connection | Namur |
| Type of design | 5/2 ways |
| flow rate | 1250 l/min |
| material | aluminium |
| seal | NBR |
| voltage | 24V DC |
| media | pressure air |
| temperature ambiente | max up to +80°C |
| max. pressure | 2,0 - 10,0 bar |
| installation position | any position, solenoid valve preferably upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC
Article no.
: NA02010001
product:
Solenoid valve
type:
NA02
manufacturer:
NieRuf
design:
Namur-valve with spring chamber ventilation
diameter:
DN 8
connection:
G 1/4" Inch
type of connection:
Namur
Type of design:
5/2 ways
flow rate:
1250 l/min
material:
aluminium
seal:
NBR
voltage:
24V DC
media:
pressure air
temperature ambiente:
max up to +80°C
max. pressure:
2,0 - 10,0 bar
installation position:
any position, solenoid valve preferably upwards
