KP05000009

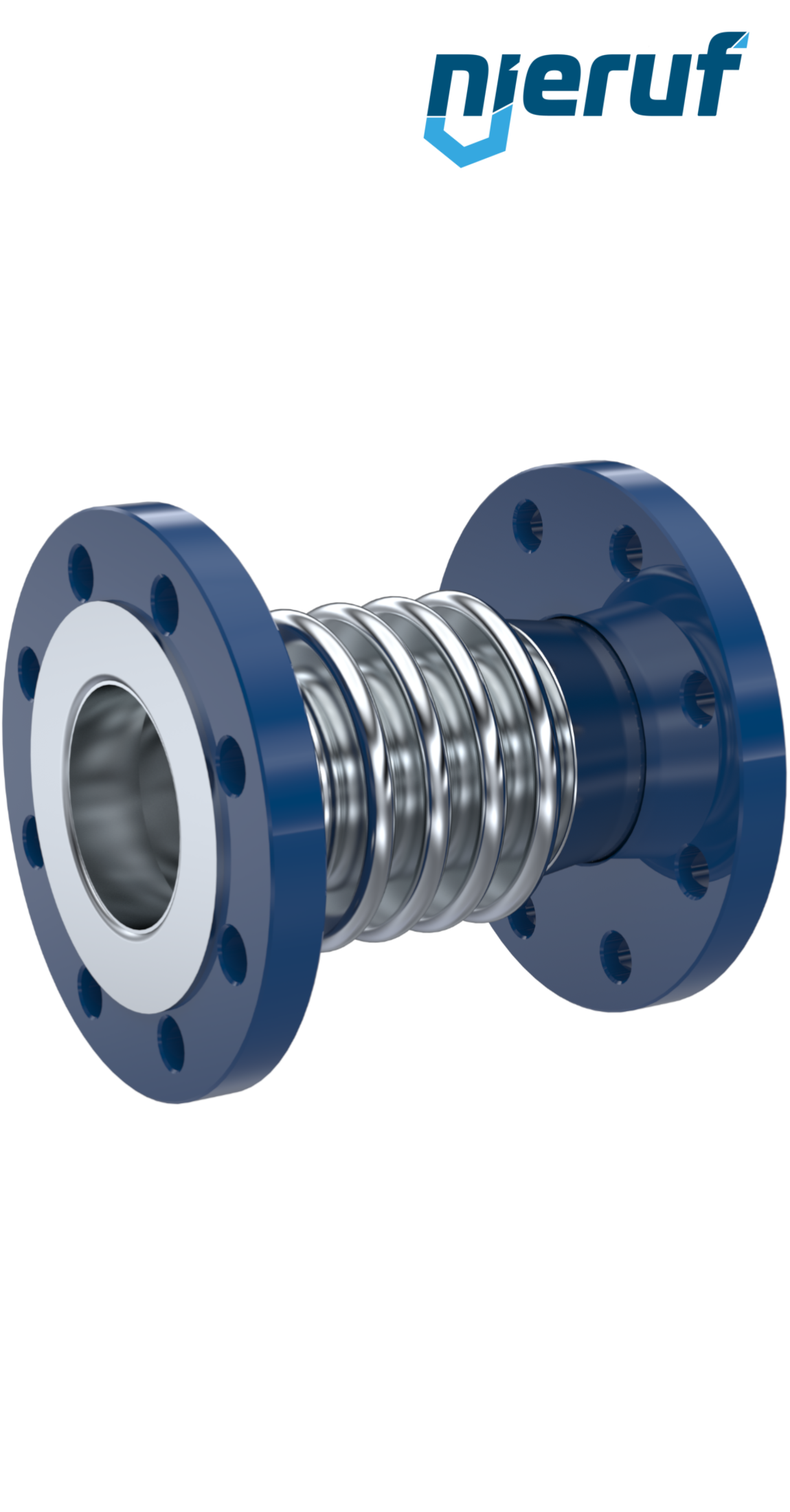

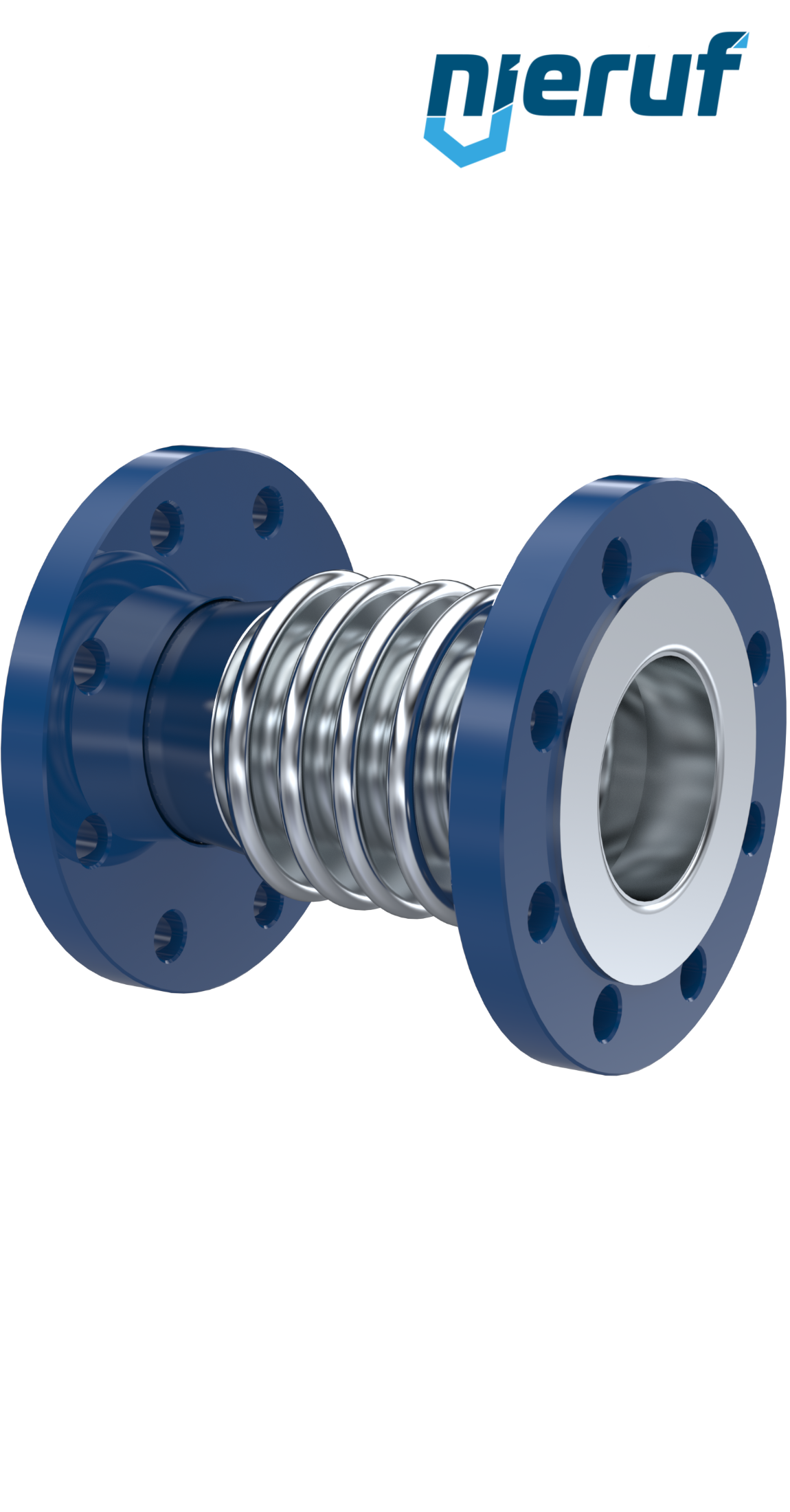

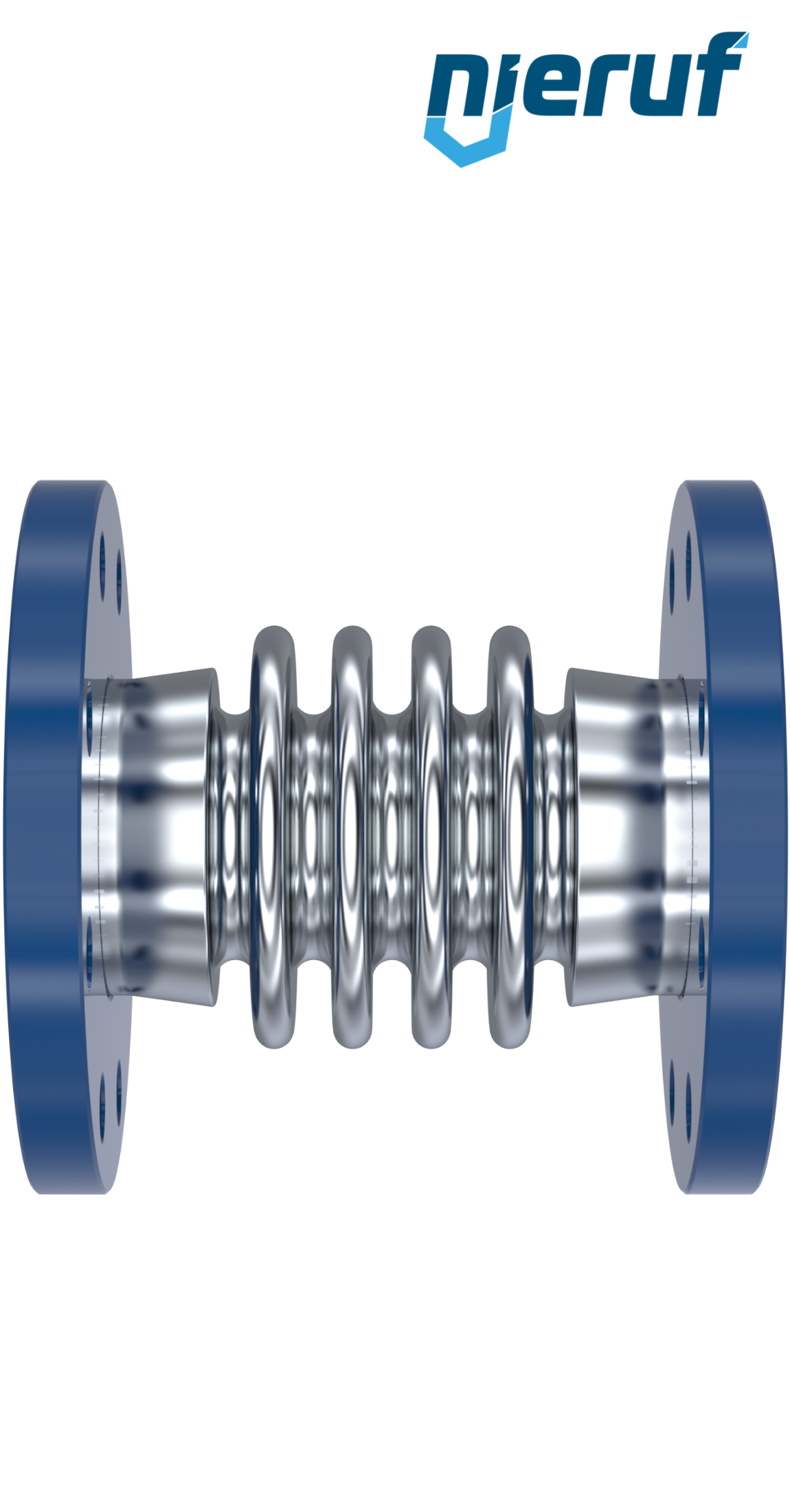

Axial expansion joint DN65 type KP05 flared flanges and stainless steel-bellows
- Delivery time
- 3 - 5 working days
Equipment
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
€4.28 VAT included.
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 stainless steel
€10.00 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Downloads
Axial expansion joint DN65 type KP05 flared flanges and stainless steel-bellows
Axial expansion joint DN65 with stainless steel-bellows und flared flanges acc. DIN EN 1092-1 PN16 for liquid media, gases media and steam
| product | Axial expansion joint |
|---|---|
| type | KP05 |
| manufacturer | NieRuf |
| diameter | DN65 |
| connection | flared flanges acc. DIN EN 1092-1 PN16 |
| max. pressure | max. 10 bar |
| nominal pressure | PN 10 |
| material | steel 235JR |
| sleeves | stainless steel |
| media | liquid media, gases media and steam |
| temperature | -10°C up to +300°C |
| design | straightway form |
| product feature | This high quality axial-compensator joint with stainless steel bellows and flared flanges made of steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Axial expansion joint DN65 type KP05 flared flanges and stainless steel-bellows
Article no.
: KP05000009
product:
Axial expansion joint
type:
KP05
manufacturer:
NieRuf
diameter:
DN65
connection:
flared flanges acc. DIN EN 1092-1 PN16
max. pressure:
max. 10 bar
nominal pressure:
PN 10
material:
steel 235JR
sleeves:
stainless steel
media:
liquid media, gases media and steam
temperature:
-10°C up to +300°C
design:
straightway form
product feature:
This high quality axial-compensator joint with stainless steel bellows and flared flanges made of steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube.
Equipment
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 stainless steel
Delivery time: in stock
