GK11000003
ball valve made of brass DN15 - 1/2" inch GK11 female thread
- Delivery time
- in stock
Equipment
hexagon nipple 1/2" inch male stainless steel 316
€2.38 VAT included.
hose nozzle 1/2" 12.7 mm stainless steel 1.4408 ST01
€3.33 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
NIERUF-SERVICE

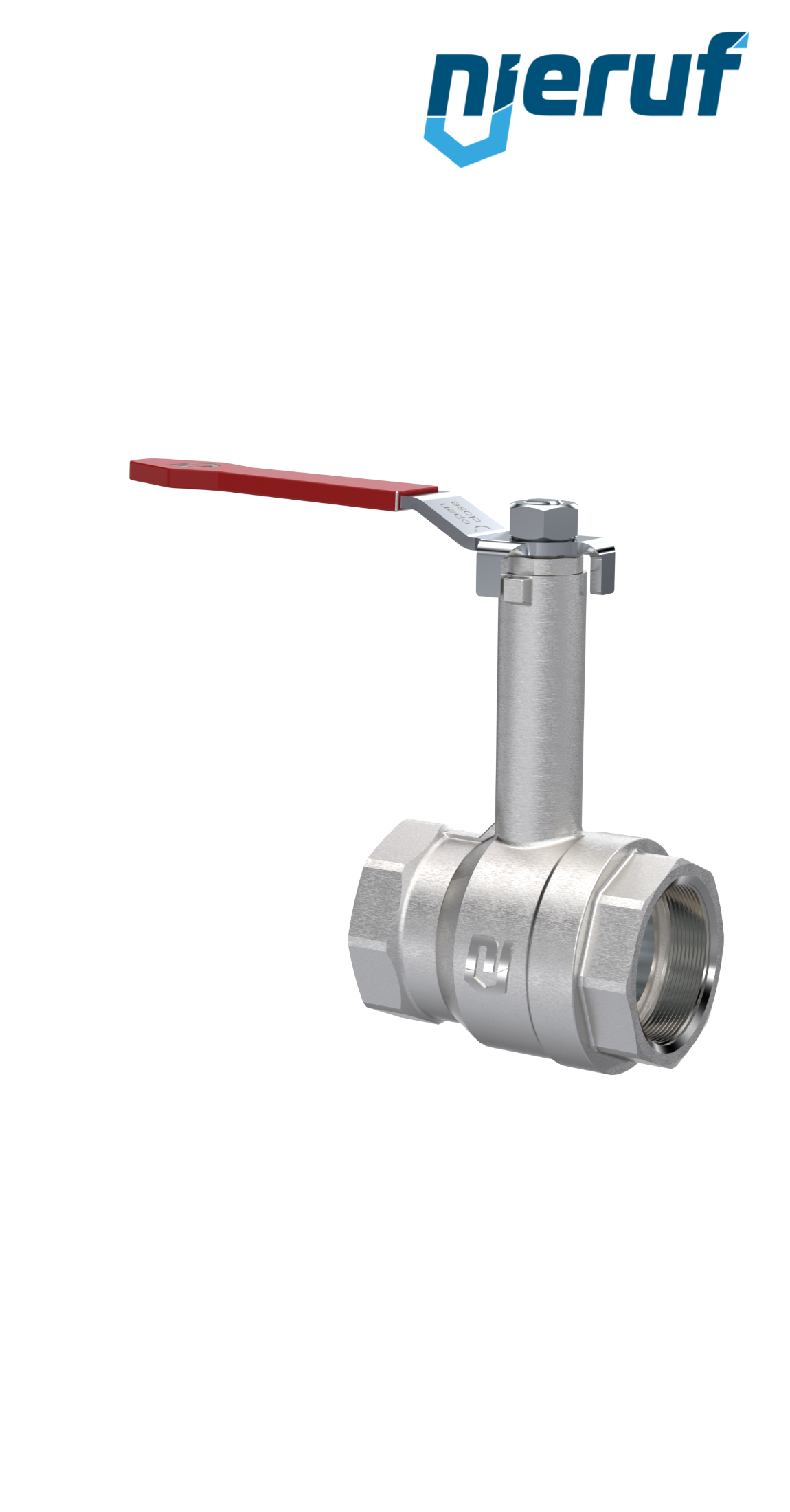

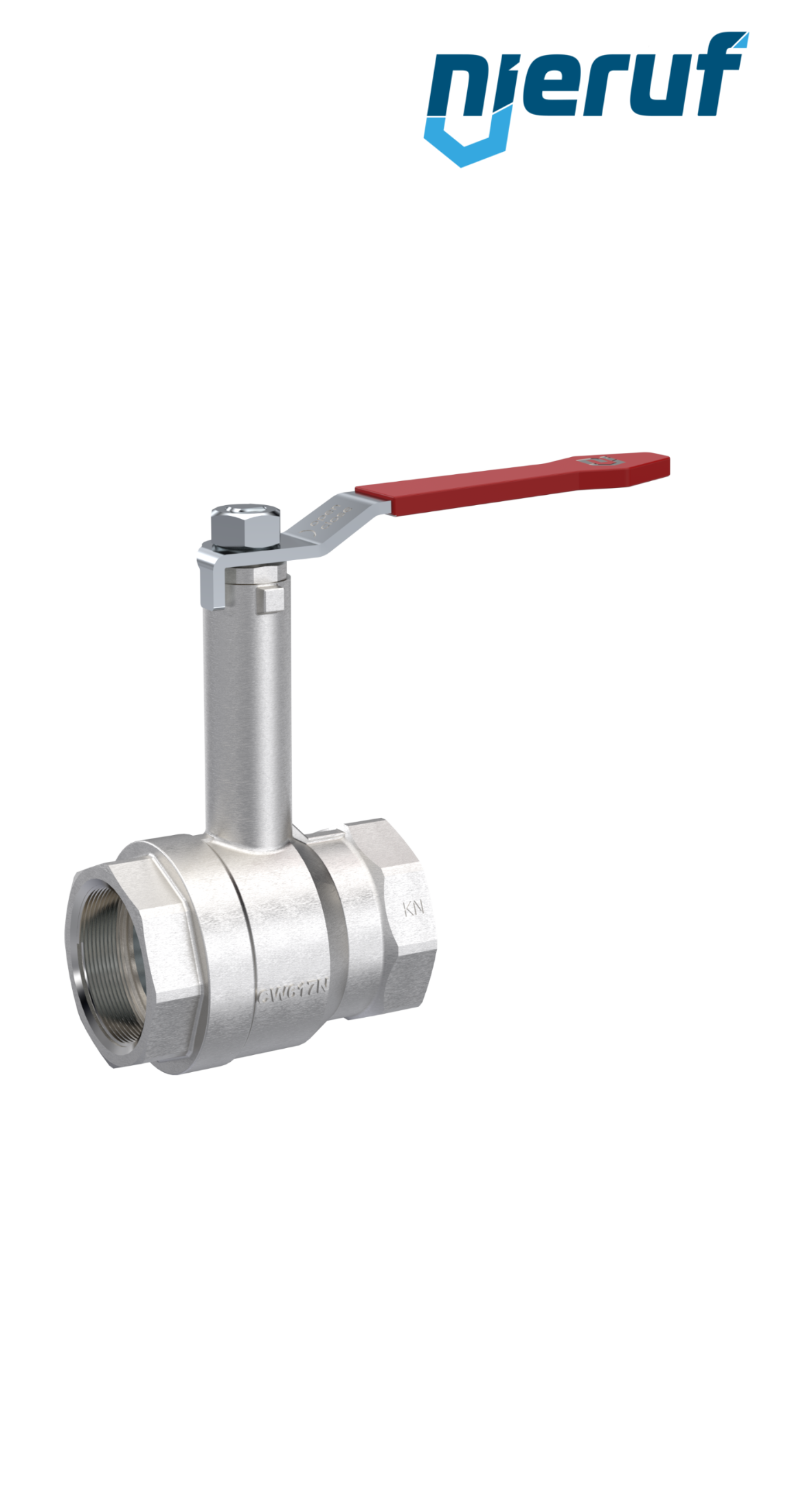

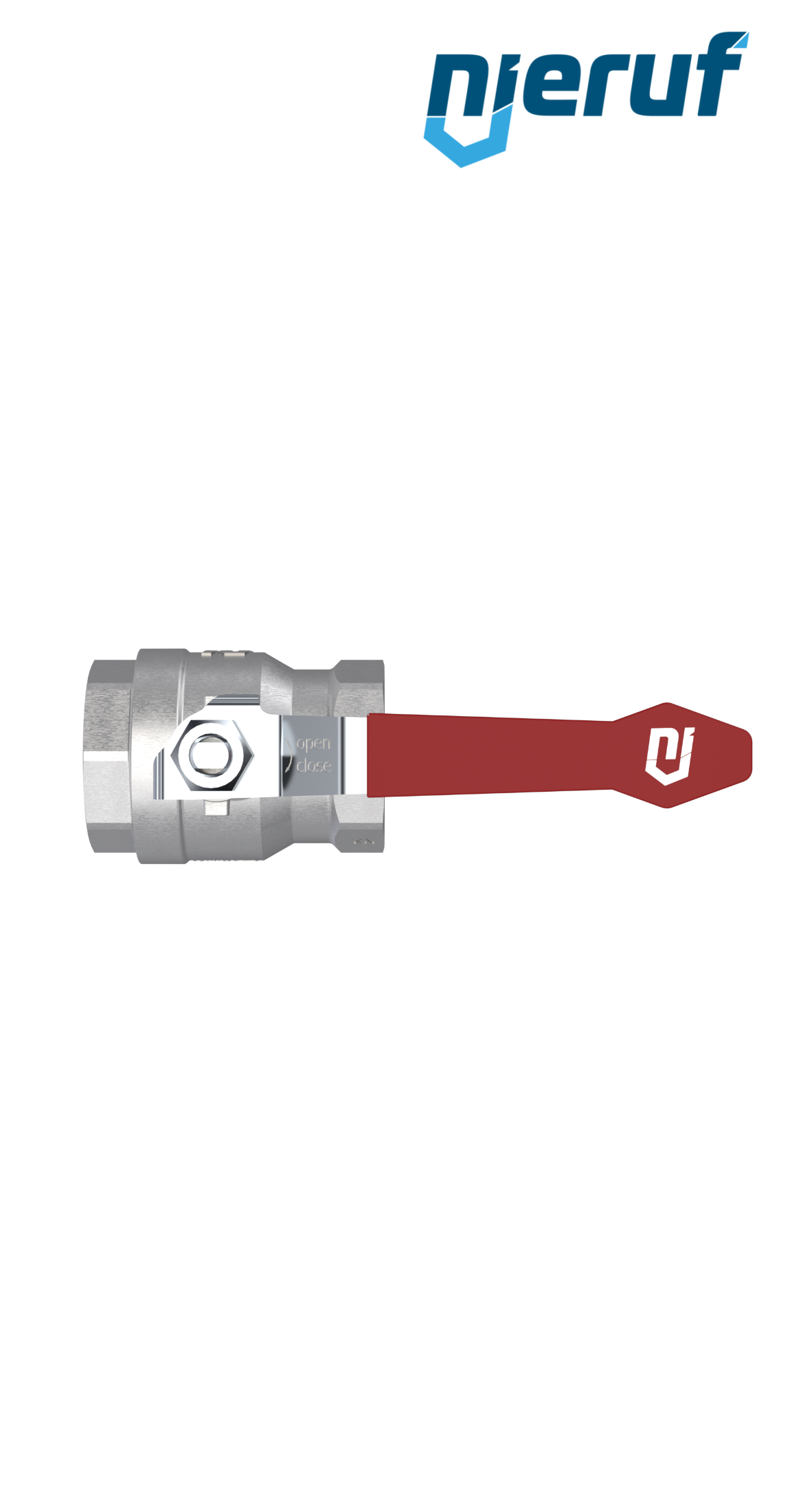

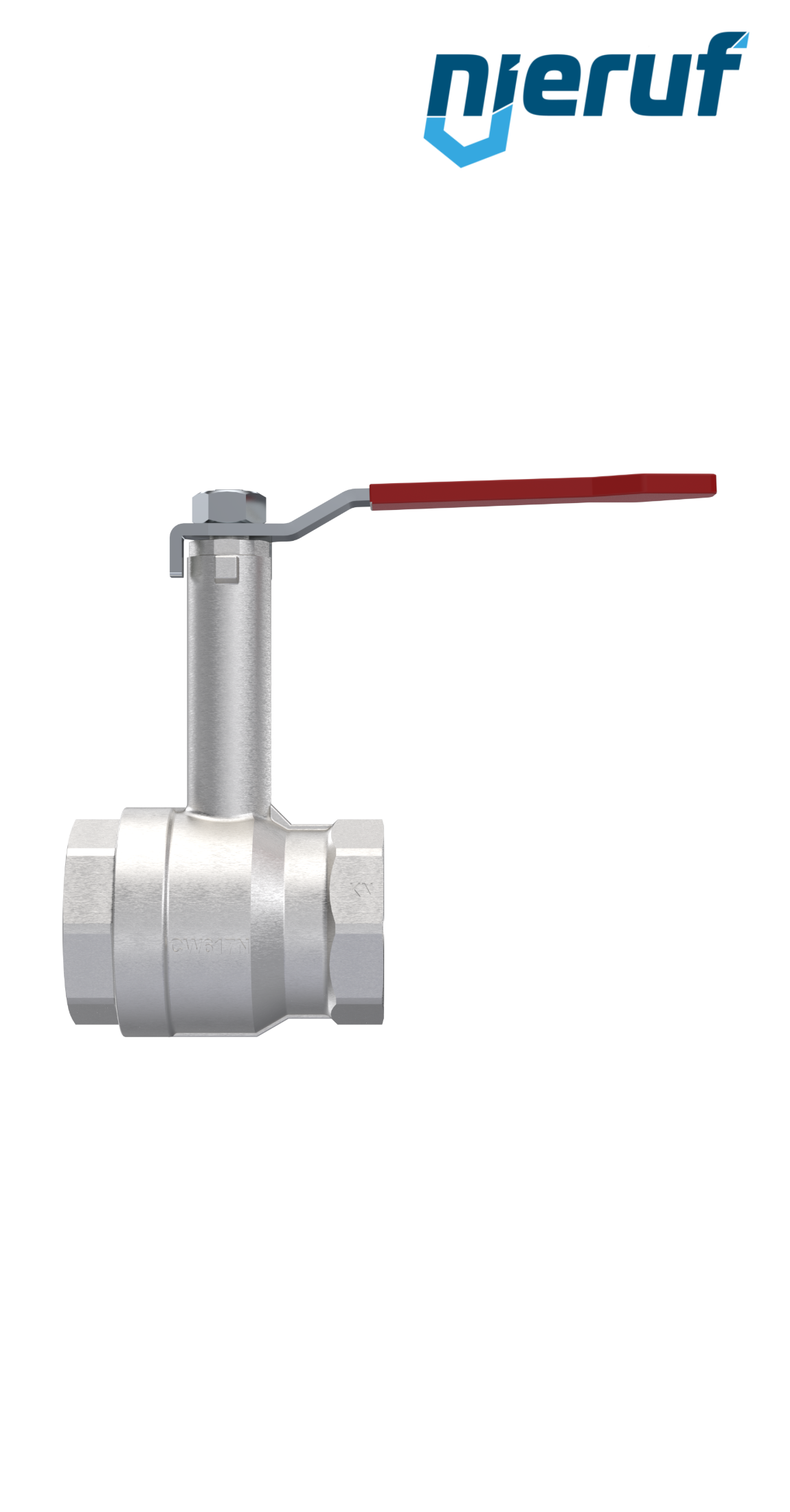

ball valve made of brass DN15 - 1/2" inch GK11 female thread
ball valve made of brass DN15 - 1/2" inch full port design seal made of O-ring Viton for liquid and gaseous media
| product | ball valve made of brass |
|---|---|
| type | GK11 |
| manufacturer | NieRuf |
| diameter | DN15 - 1/2" inch |
| connection | female thread |
| Seal steam | O-ring Viton |
| ball seal | PTFE |
| media | liquid and gaseous media |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN40 |
| design | full port design |
| body material | CW617N nickel plated |
| ball material | CW614N chrome plated |
| length | 50mm |
| actuator | lever handle made of steel, zinc coated with red plastic cover |
| installation position | any position |
| product description | This high quality brass ball valve with extended stem for insulated pipes has a blow out proof nickel plated brass stem |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve made of brass DN15 - 1/2" inch GK11 female thread
Article no.
: GK11000003
product:
ball valve made of brass
type:
GK11
manufacturer:
NieRuf
diameter:
DN15 - 1/2" inch
connection:
female thread
Seal steam:
O-ring Viton
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN40
design:
full port design
body material:
CW617N nickel plated
ball material:
CW614N chrome plated
length:
50mm
actuator:
lever handle made of steel, zinc coated with red plastic cover
installation position:
any position
product description:
This high quality brass ball valve with extended stem for insulated pipes has a blow out proof nickel plated brass stem
