KP04012011

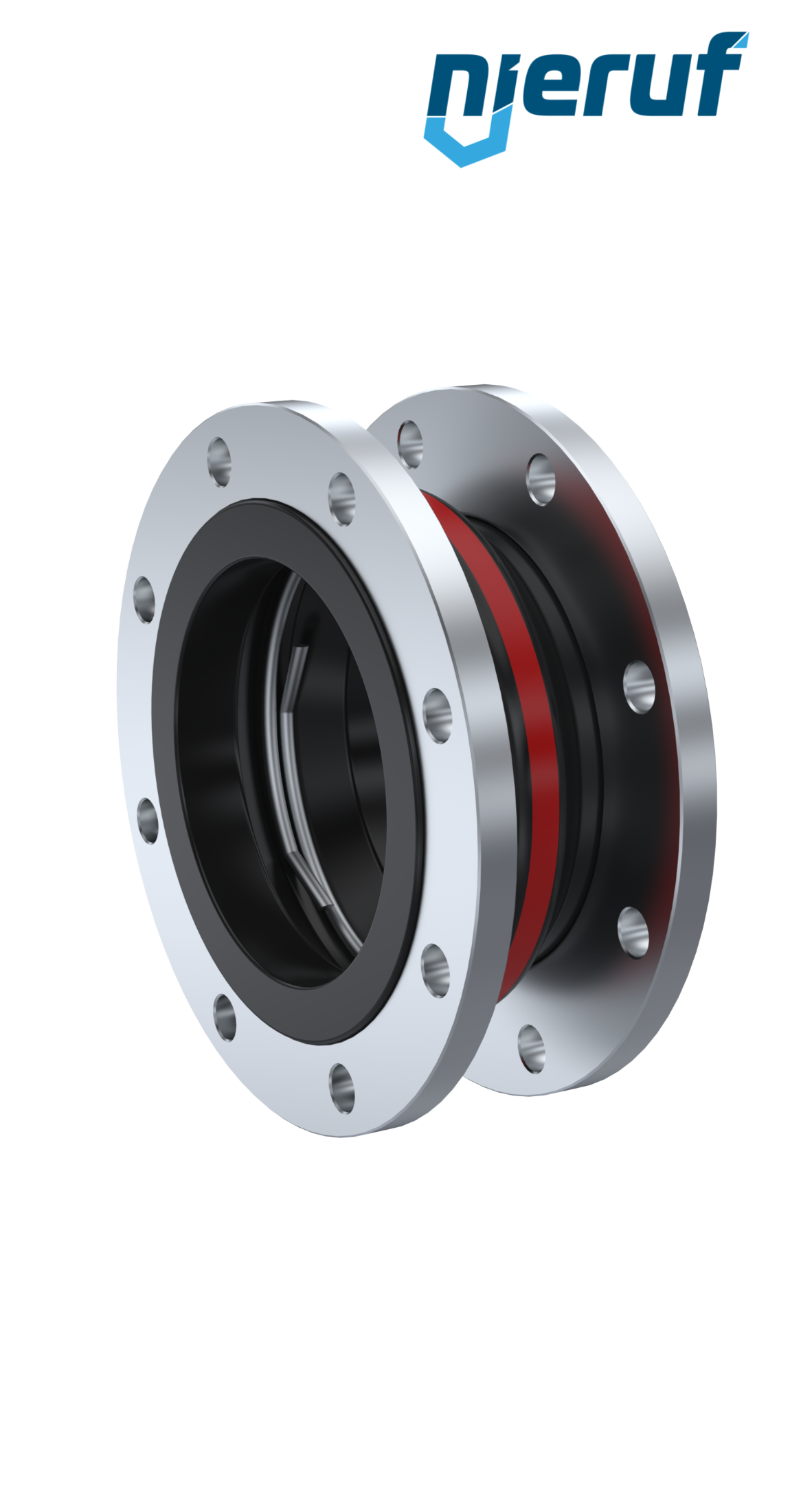

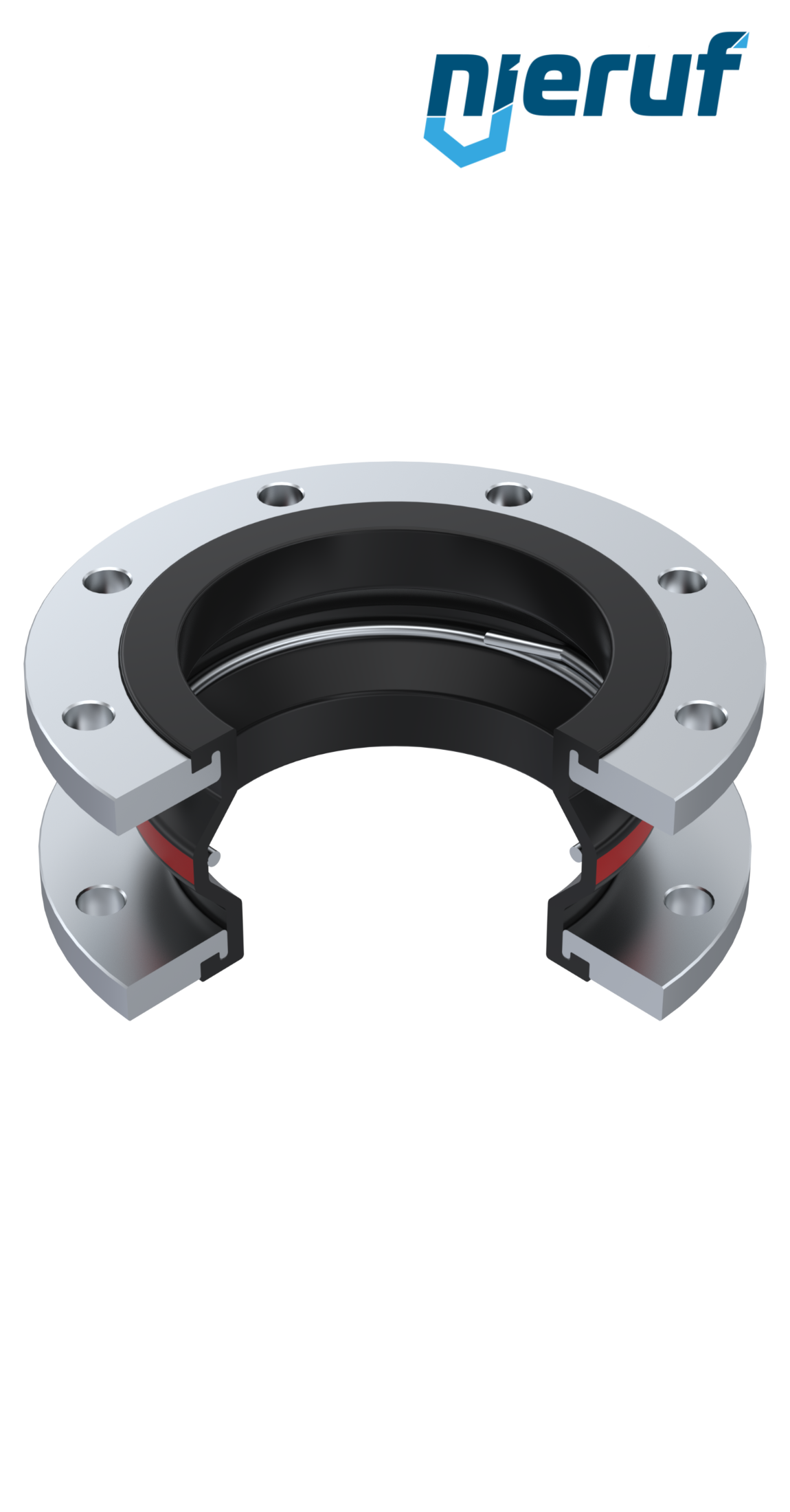

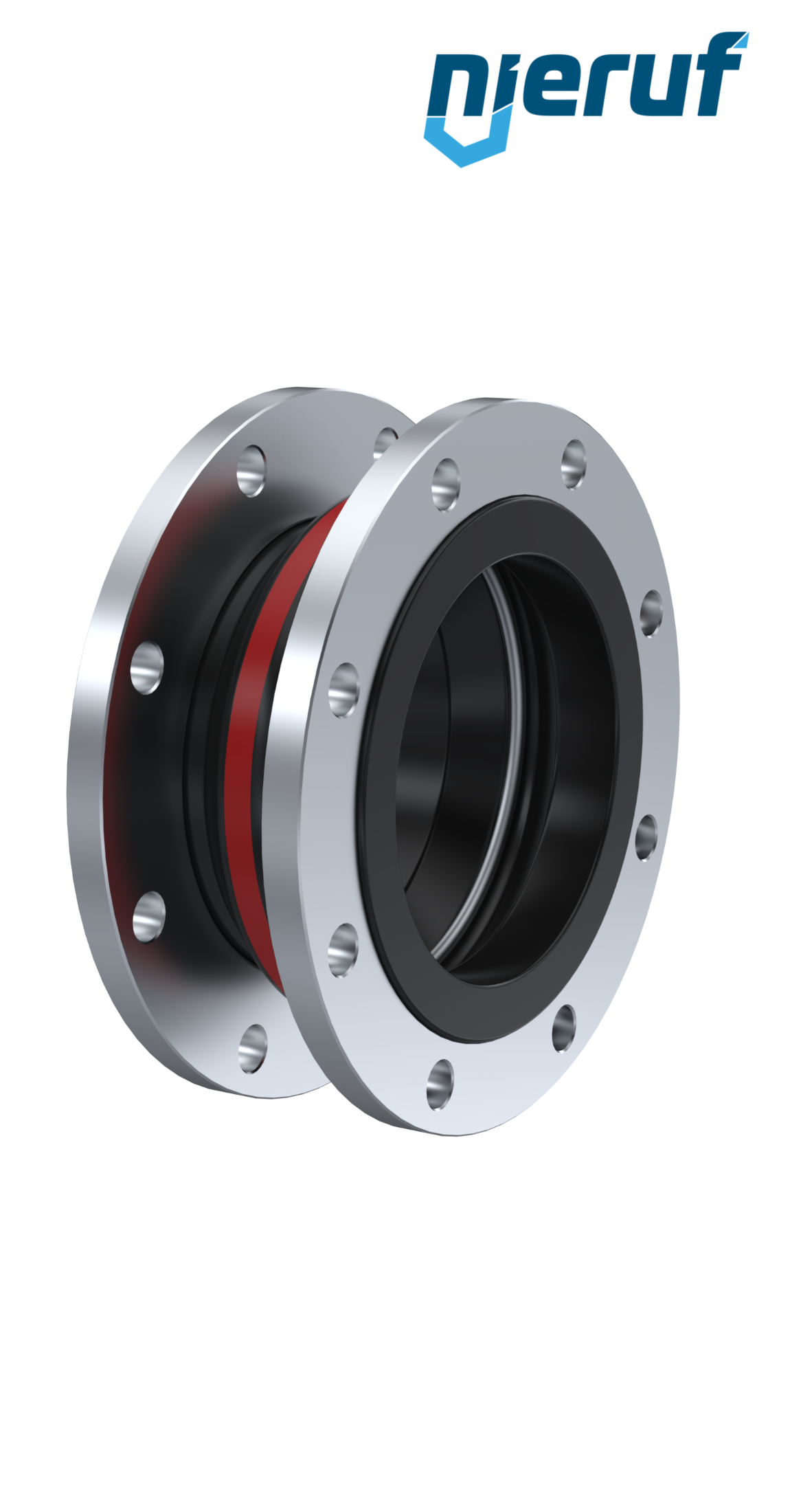

Rubber expansion joint vacuum support ring DN100 type KP04 stainless steel flanges EPDM
- Delivery time
- 3 - 5 working days
Equipment
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
€19.99 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Downloads
Rubber expansion joint vacuum support ring DN100 type KP04 stainless steel flanges EPDM
Rubber expansion joint DN100 vacuum support ring for liquid & gaseous media (no steam) with stainless steel flanges & EPDM seal authorized for DVGW-water
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN100 |
| connection | flange acc. DIN EN 1092-1 PN16 |
| option | vacuum support ring |
| max. pressure | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure | PN 16 |
| material | stainless steel 1.4541 |
| sleeves | EPDM |
| media | liquid media and gases (no steam) and drinking water |
| temperature | -40°C up to +100°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| authorized for | DVGW drinking water |
| product feature | This high quality compensator with EPDM sleeve and stainless steel flanges has a DVGW drinking water authorization. In addition, this componesator is equipped with a vacuum support for negative pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint vacuum support ring DN100 type KP04 stainless steel flanges EPDM
Article no.
: KP04012011
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN100
connection:
flange acc. DIN EN 1092-1 PN16
option:
vacuum support ring
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN 16
material:
stainless steel 1.4541
sleeves:
EPDM
media:
liquid media and gases (no steam) and drinking water
temperature:
-40°C up to +100°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
authorized for:
DVGW drinking water
product feature:
This high quality compensator with EPDM sleeve and stainless steel flanges has a DVGW drinking water authorization. In addition, this componesator is equipped with a vacuum support for negative pressure.
Equipment
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
Delivery time: in stock
