SV05000206
safety valve 1 1/4" x 2" fm SV05 neutral liquid media, stainless steel FKM
- Delivery time
- 3 - 5 working days
Equipment
hexagon nipple 1 1/4" inch male stainless steel 316
€7.02 VAT included.
hexagon nipple 2" inch male stainless steel 316
€12.14 VAT included.
tee 1 1/4" inch stainless steel 316 90° angle FM
€12.14 VAT included.
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you

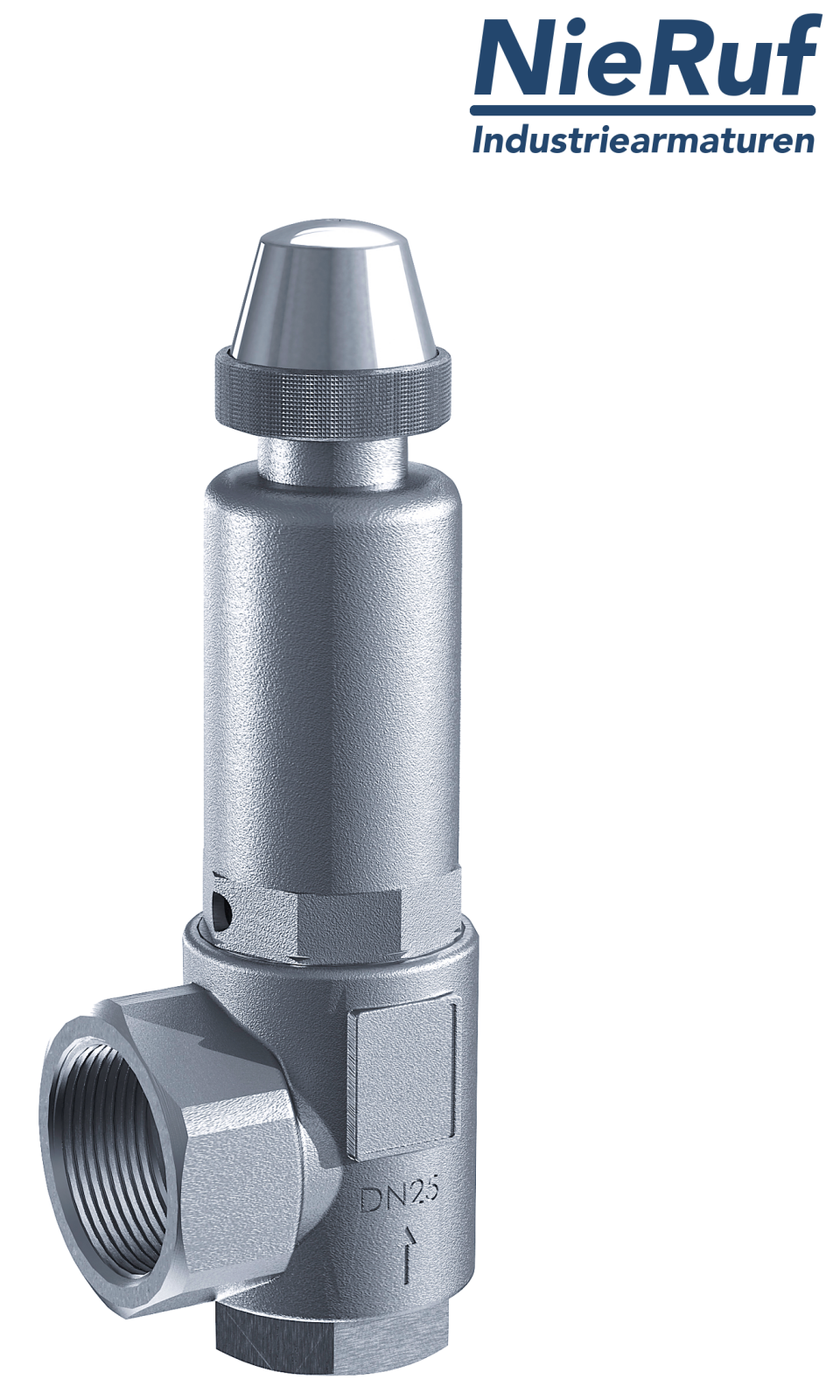

safety valve 1 1/4" x 2" fm SV05 neutral liquid media, stainless steel FKM
safety valve stainless steel 1 1/4" x 2" fm female thread FKM Typ SV05 for neutral liquid media with twist-type lifting mechanism
| product | safety valve |
|---|---|
| type | SV05 |
| manufacturer | NieRuf |
| diameter | 1 1/4" x 2" fm |
| d0 | 30,3 mm |
| connection | Female screw threaded BSP-P |
| seal | FKM |
| media | neutral liquid media |
| temperature | -20°C up to +200°C |
| set pressure | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design | angle-type |
| material | stainless steel |

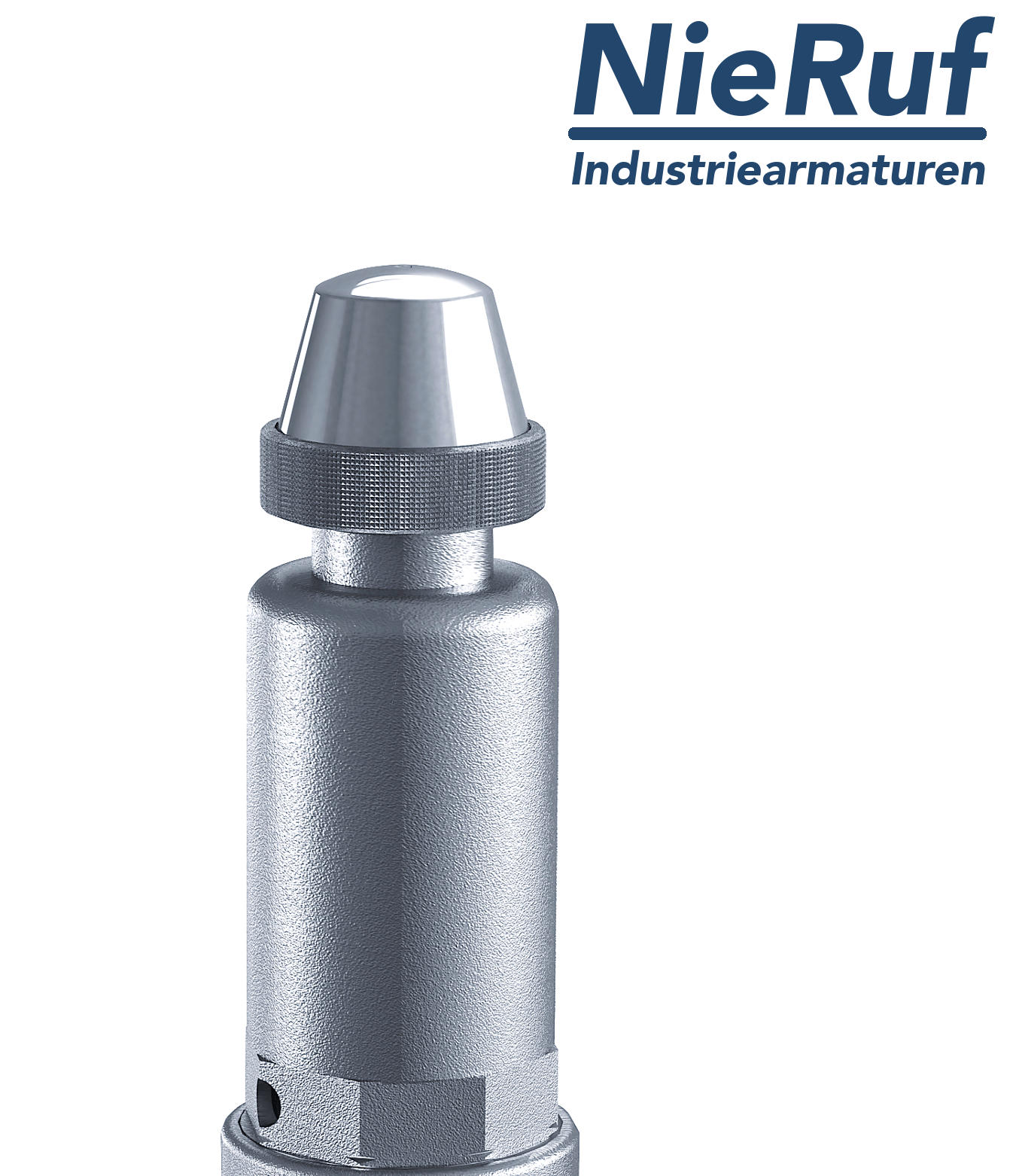

| lifting | twist-type lifting mechanism |
| type test approval | TUV = F / EG = L |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 |
| product feature 1 | without bellows |
| product feature 2 | for neutral media without counter pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1 1/4" x 2" fm SV05 neutral liquid media, stainless steel FKM
Article no.
: SV05000206
product:
safety valve
type:
SV05
manufacturer:
NieRuf
diameter:
1 1/4" x 2" fm
d0:
30,3 mm
connection:
Female screw threaded BSP-P
seal:
FKM
media:
neutral liquid media
temperature:
-20°C up to +200°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
stainless steel
lifting:
twist-type lifting mechanism
type test approval:
TUV = F / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3
product feature 1:
without bellows
product feature 2:
for neutral media without counter pressure.
