EF04010808

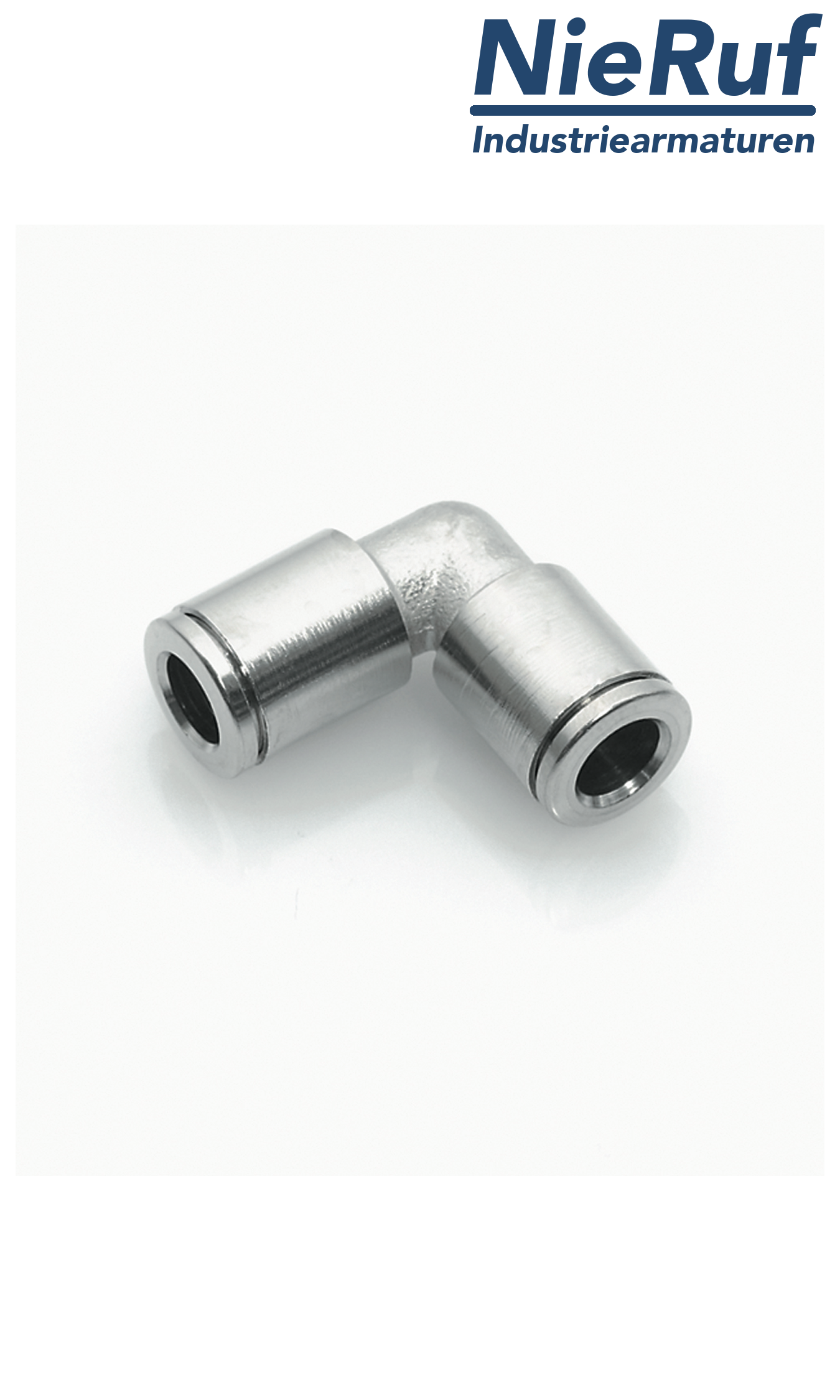

Elbow connector EF04 brass FKM D8mm
- Delivery time
- 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you
Downloads
Elbow connector EF04 brass FKM D8mm
port connection Elbow connector made of brass with FKM-seal D8mm for lubricated & non-lubricated compressed air up to 16 bar
| product | port connection |
|---|---|
| type | EF04 |
| manufacturer | NieRuf |
| design | Elbow connector |
| tube connection 1 | D8mm |
| tube connection 2 | D8mm |
| body material | brass Ms58 nickel-plated |
| seal | FKM |
| collet | stainless steel 1.4401 |
| pressure ring | brass Ms58 nickel-plated |
| thread | cylindrical |
| media | lubricated & non-lubricated compressed air |
| max. working pressure | up to 16 bar |
| product feature | Elbow connector to connect or to plug pipes in pneumatic- or pressure air applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Elbow connector EF04 brass FKM D8mm
Article no.
: EF04010808
product:
port connection
type:
EF04
manufacturer:
NieRuf
design:
Elbow connector
tube connection 1:
D8mm
tube connection 2:
D8mm
body material:
brass Ms58 nickel-plated
seal:
FKM
collet:
stainless steel 1.4401
pressure ring:
brass Ms58 nickel-plated
thread:
cylindrical
media:
lubricated & non-lubricated compressed air
max. working pressure:
up to 16 bar
product feature:
Elbow connector to connect or to plug pipes in pneumatic- or pressure air applications.
