MI01011121

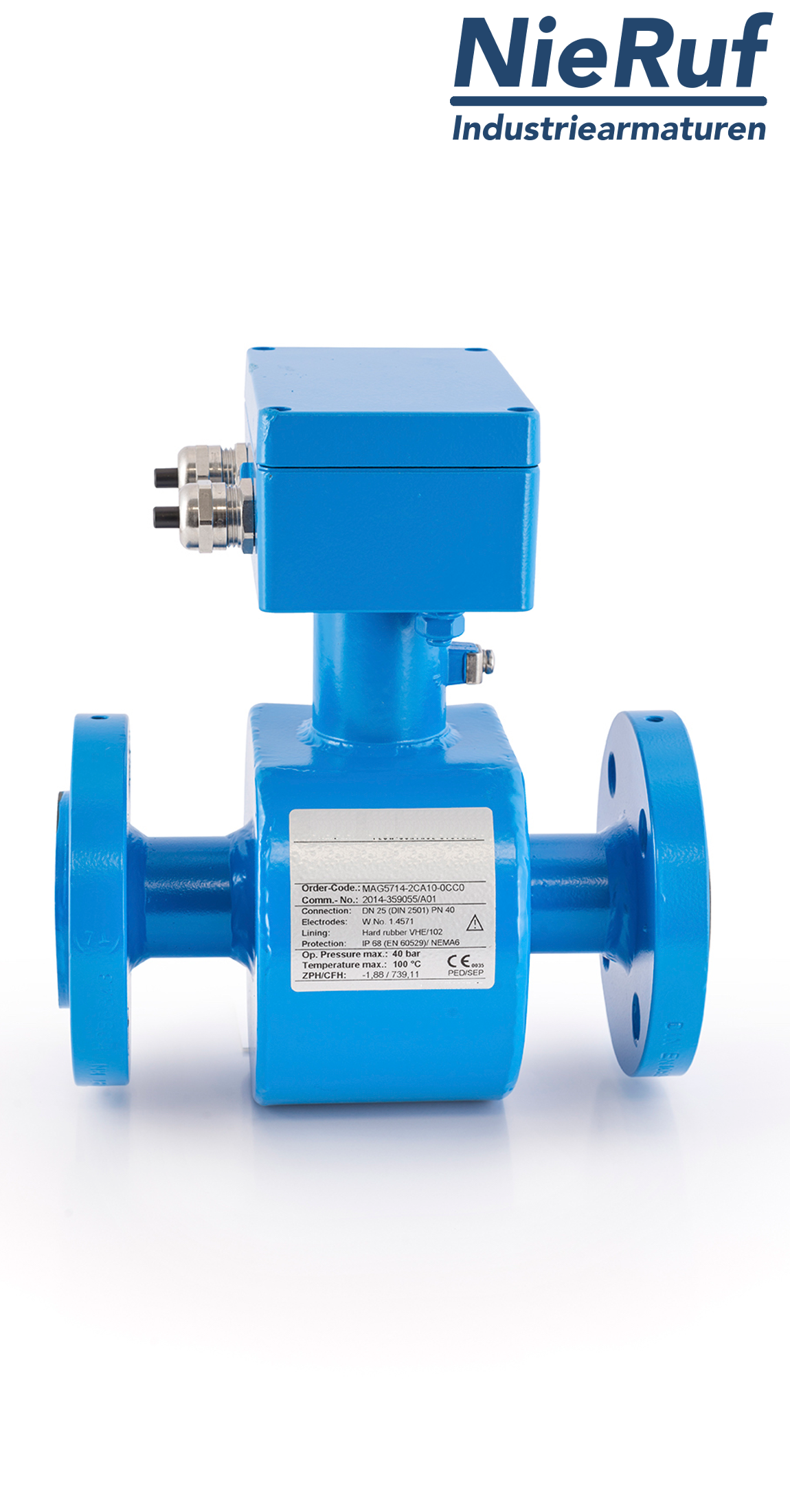

Electromagnetic flow Sensor DN600 MI01, PTFE, AC 230V 50/60hz
- Delivery time
- On request
Questions about the article?
Our employee Max Eisele
will be happy to help you
NIERUF-SERVICE
Electromagnetic flow Sensor DN600 MI01, PTFE, AC 230V 50/60hz
Electromagnetic flow Sensor DN600 Flange DIN 2501 PN10 remote version design, lining of measuring pipe made of PTFE AC 230V 50/60hz
| product | Electromagnetic flow Sensor |
|---|---|
| type | MI01 |
| manufacturer | NieRuf |
| diameter | DN600 |
| connection | Flange DIN 2501 PN10 |
| design | remote design |
| measuring tube | stainless steel 1.4301 |
| solenoid chamber | steel |
| flange | steel |
| coating | Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015 |
| lining of measuring pipe | PTFE |
| electrodes | stainless steel 1.4571 |
| error of measurement | +/- 0,5% of the reading from 0,25 ms to 10m/s |
| repeat accuracy | +/- 0,15% of the reading from 0,25 ms to 10m/s |
| operqting temerature | +180°C |
| protection class | IP67 |
| minimum conductivity media | > 20 μS/cm |
| max. flow rate | 10 m/s |
| flow rate final value | 0,25 - 10 m/s |
| flow rate range | 254,47 - 10178,76 m3/h |
| wiring | 2 x M16 x 1,5 |
| wire | magnetic current cable (3x1,0 mm2) and electrode cable (5x0,5 mm2), length 5 m |
| power supply | AC 230V 50/60hz |
| analogue output | 4 - 20mA |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Electromagnetic flow Sensor DN600 MI01, PTFE, AC 230V 50/60hz
Article no.
: MI01011121
product:
Electromagnetic flow Sensor
type:
MI01
manufacturer:
NieRuf
diameter:
DN600
connection:
Flange DIN 2501 PN10
design:
remote design
measuring tube:
stainless steel 1.4301
solenoid chamber:
steel
flange:
steel
coating:
Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015
lining of measuring pipe:
PTFE
electrodes:
stainless steel 1.4571
error of measurement:
+/- 0,5% of the reading from 0,25 ms to 10m/s
repeat accuracy:
+/- 0,15% of the reading from 0,25 ms to 10m/s
operqting temerature:
+180°C
protection class:
IP67
minimum conductivity media:
> 20 μS/cm
max. flow rate:
10 m/s
flow rate final value:
0,25 - 10 m/s
flow rate range:
254,47 - 10178,76 m3/h
wiring:
2 x M16 x 1,5
wire:
magnetic current cable (3x1,0 mm2) and electrode cable (5x0,5 mm2), length 5 m
power supply:
AC 230V 50/60hz
analogue output:
4 - 20mA
