BE02001103
High pressure vessel horizontal BE02 150 liter, 0-26 bar, steel galvanized
- Delivery time
- On request
Equipment
2 way ball valve DN15 - 1/2" inch GK01 female thread
€8.81 VAT included.
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 40,0 bar without filling, dry
€164.70 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

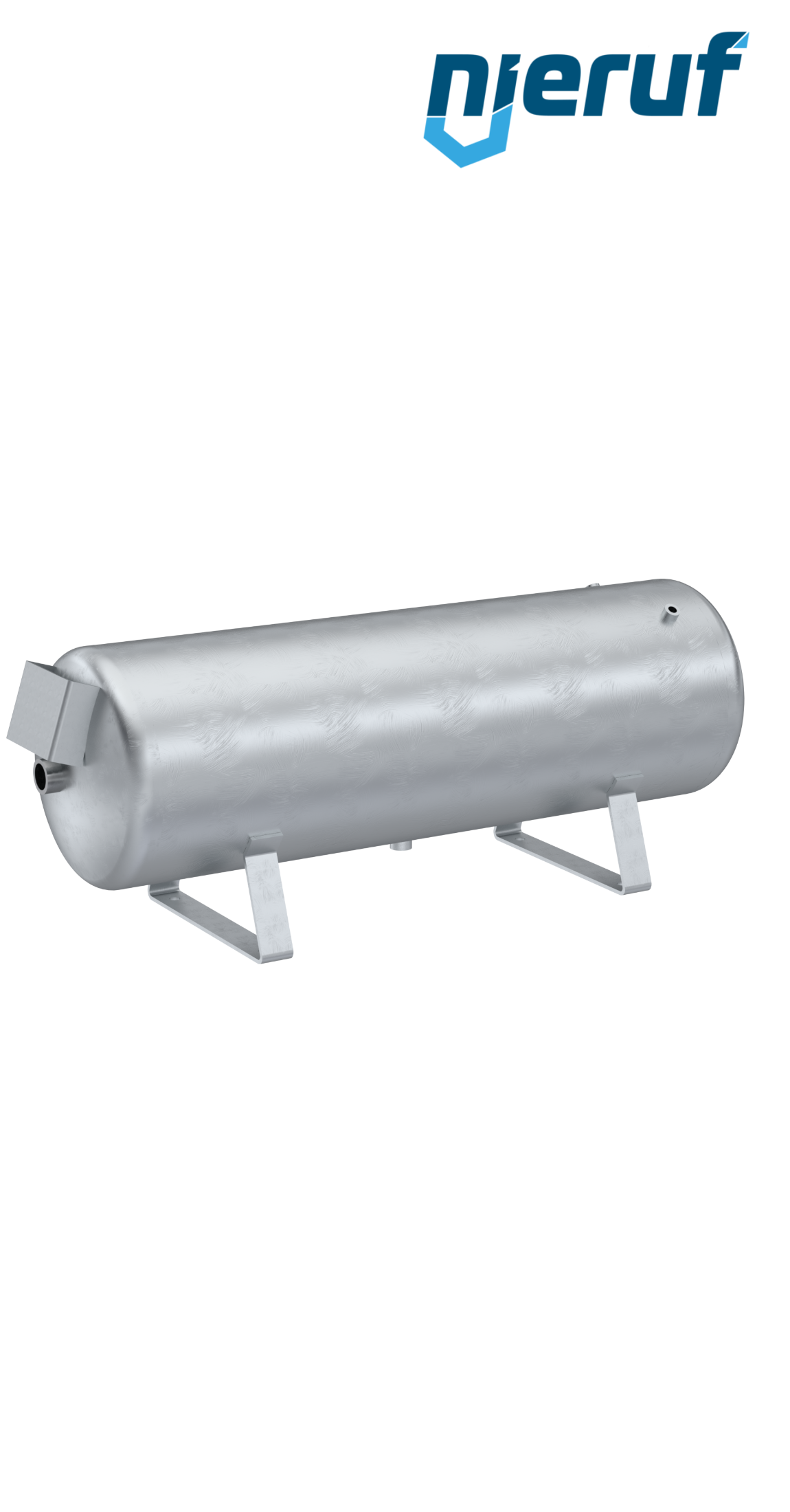

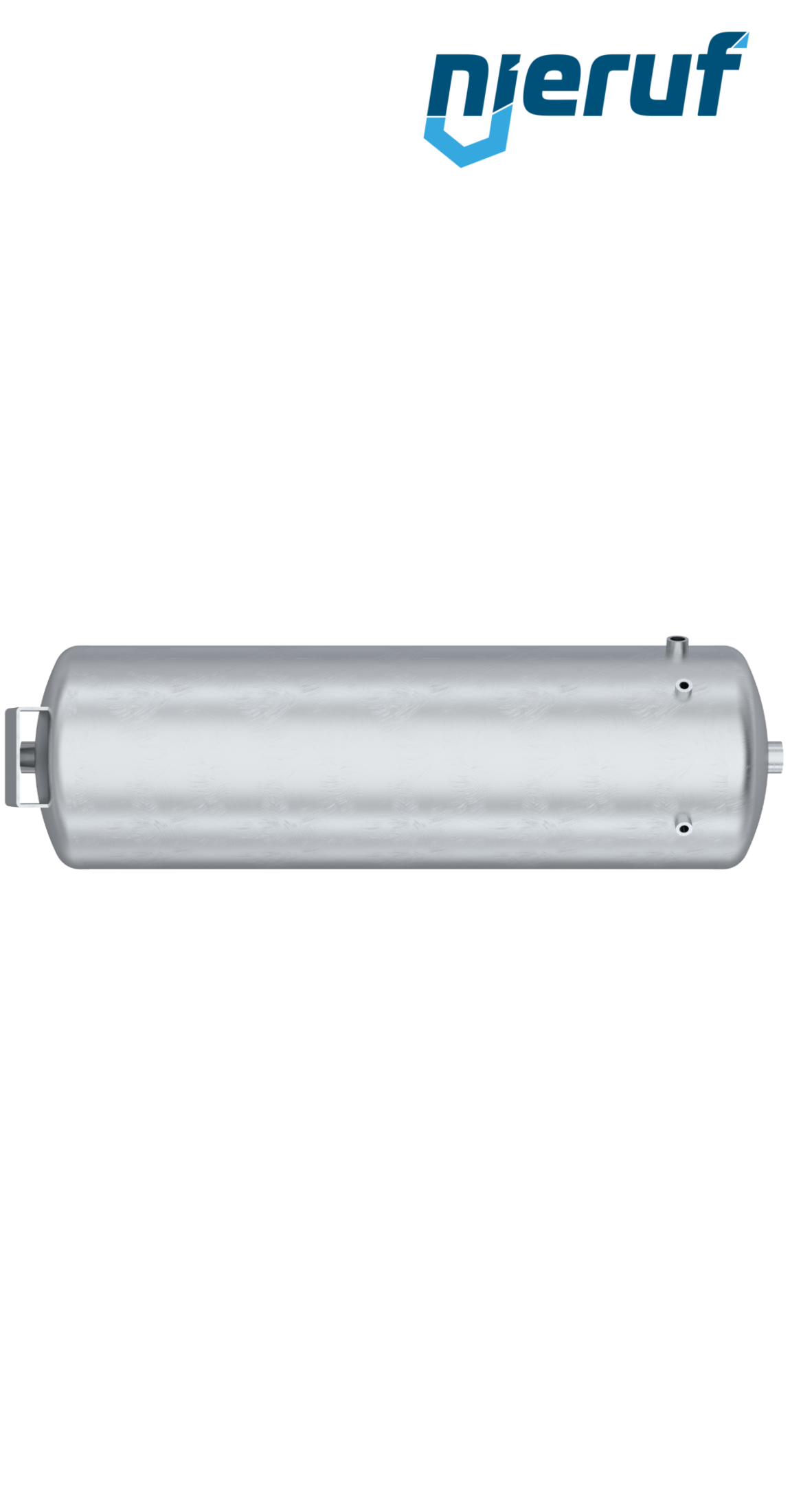

High pressure vessel horizontal BE02 150 liter, 0-26 bar, steel galvanized
High pressure vessel BE02 with 150 liter volume horizontal with operating pressure 0-26 bar made of steel galvanized and nominal size 450 mm
| product | High pressure vessel |
|---|---|
| type | BE02 |
| manufacturer | NieRuf |
| volume | 150 liter |
| nominal size | 450 mm |
| height | 580 mm |
| length | 1030 mm |
| operating pressure | 0-26 bar |
| version | horizontal |
| temperature | -10°C up to +50°C |
| material | steel galvanized |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
High pressure vessel horizontal BE02 150 liter, 0-26 bar, steel galvanized
Article no.
: BE02001103
product:
High pressure vessel
type:
BE02
manufacturer:
NieRuf
volume:
150 liter
nominal size:
450 mm
height:
580 mm
length:
1030 mm
operating pressure:
0-26 bar
version:
horizontal
temperature:
-10°C up to +50°C
material:
steel galvanized
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 40,0 bar without filling, dry
Delivery time: in stock
