BE02012111
High pressure vessel horizontal BE02 3000 liter, 0-31 bar, steel primed
- Delivery time
- On request
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 40,0 bar without filling, dry
€164.70 VAT included.
2 way ball valve DN25 - 1" inch GK01 female thread
€19.52 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

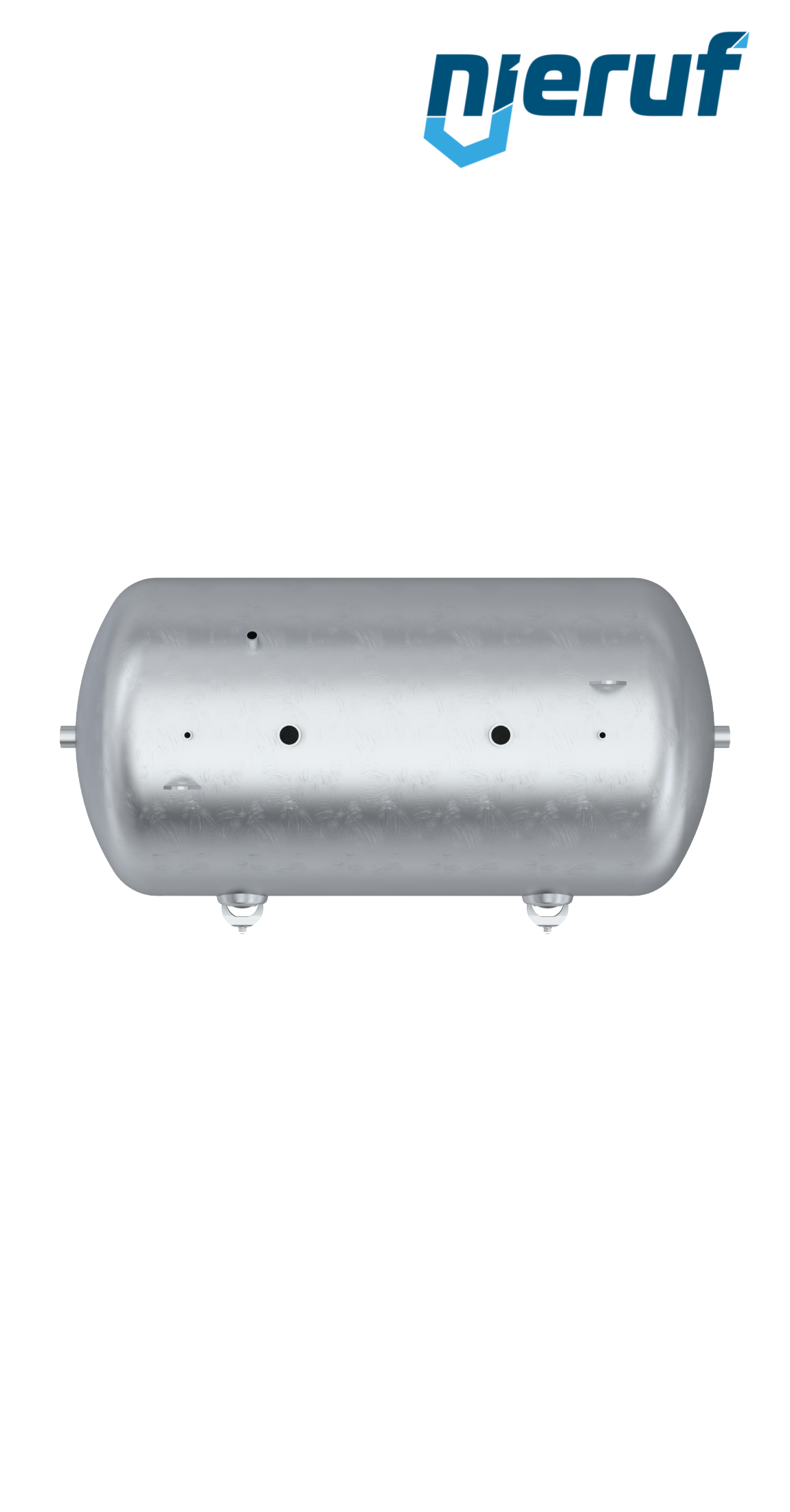

High pressure vessel horizontal BE02 3000 liter, 0-31 bar, steel primed
High pressure vessel BE02 with 3000 liter volume horizontal with operating pressure 0-31 bar made of steel primed (inside raw) and nominal size 1250 mm
| product | High pressure vessel |
|---|---|
| type | BE02 |
| manufacturer | NieRuf |
| volume | 3000 liter |
| nominal size | 1250 mm |
| height | 1450 mm |
| length | 2580 mm |
| operating pressure | 0-31 bar |
| version | horizontal |
| temperature | -10°C up to +50°C |
| material | steel primed (inside raw) |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
High pressure vessel horizontal BE02 3000 liter, 0-31 bar, steel primed
Article no.
: BE02012111
product:
High pressure vessel
type:
BE02
manufacturer:
NieRuf
volume:
3000 liter
nominal size:
1250 mm
height:
1450 mm
length:
2580 mm
operating pressure:
0-31 bar
version:
horizontal
temperature:
-10°C up to +50°C
material:
steel primed (inside raw)
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 40,0 bar without filling, dry
