BE02003009
High pressure vessel vertical BE02 1500 liter, 0-36 bar, steel galvanized
- Delivery time
- On request
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 40,0 bar without filling, dry
€164.70 VAT included.
2 way ball valve DN25 - 1" inch GK01 female thread
€19.52 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

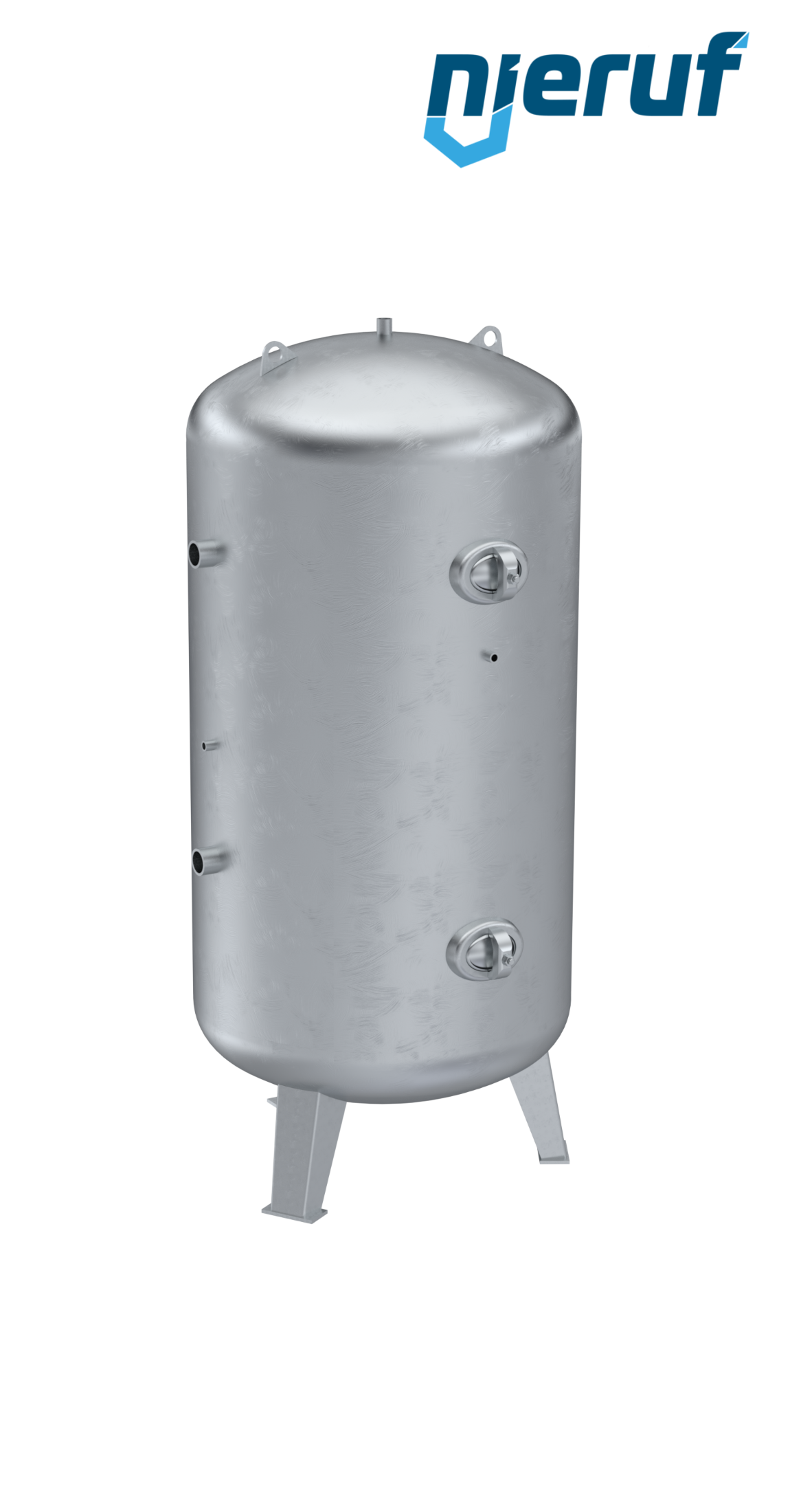

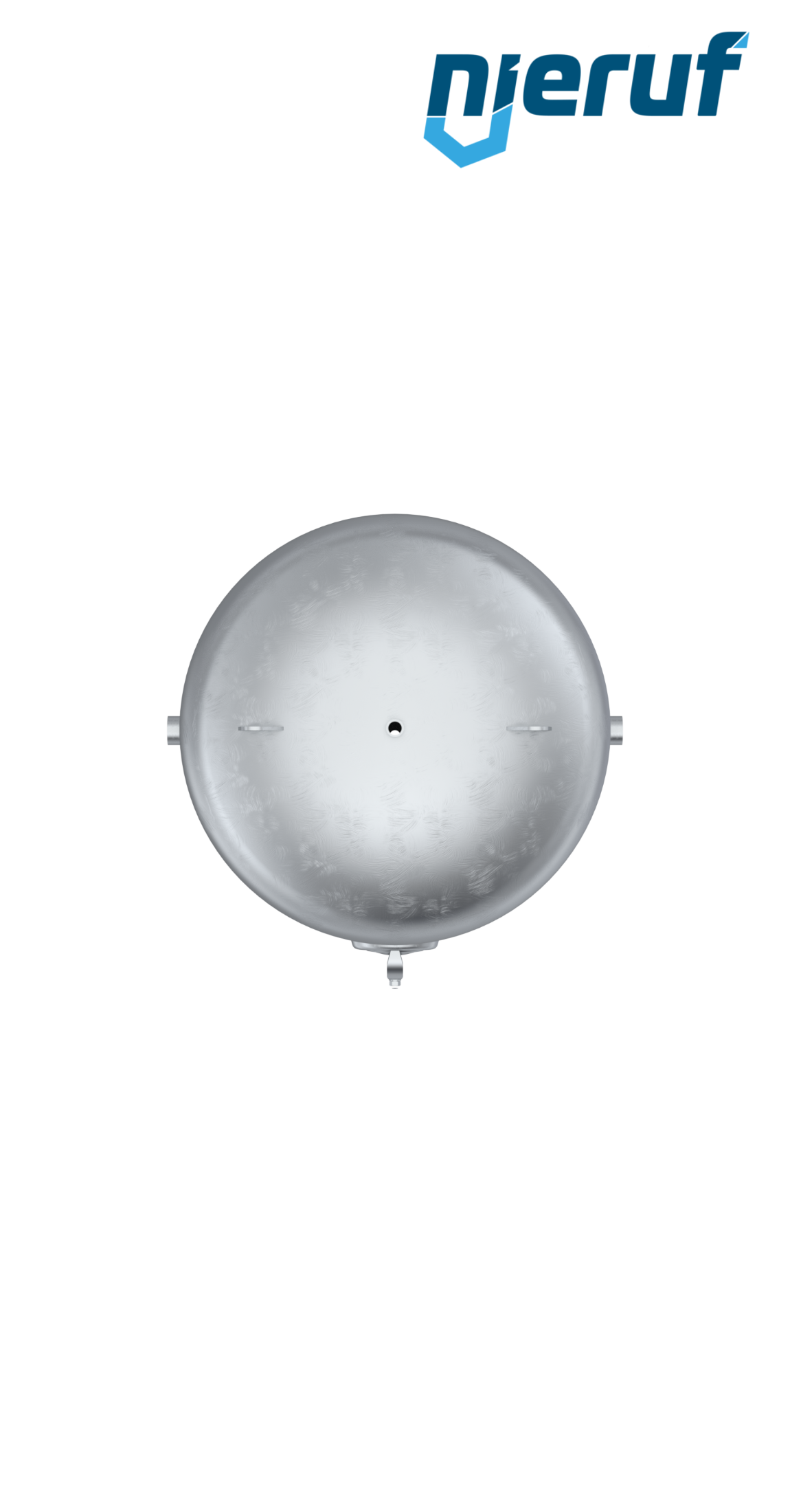

High pressure vessel vertical BE02 1500 liter, 0-36 bar, steel galvanized
High pressure vessel BE02 with 1500 liter volume vertical with operating pressure 0-36 bar made of steel galvanized and nominal size 1000 mm
| product | High pressure vessel |
|---|---|
| type | BE02 |
| manufacturer | NieRuf |
| volume | 1500 liter |
| nominal size | 1000 mm |
| height | 2300 mm |
| operating pressure | 0-36 bar |
| version | vertical |
| temperature | -10°C up to +50°C |
| material | steel galvanized |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
High pressure vessel vertical BE02 1500 liter, 0-36 bar, steel galvanized
Article no.
: BE02003009
product:
High pressure vessel
type:
BE02
manufacturer:
NieRuf
volume:
1500 liter
nominal size:
1000 mm
height:
2300 mm
operating pressure:
0-36 bar
version:
vertical
temperature:
-10°C up to +50°C
material:
steel galvanized
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 40,0 bar without filling, dry
Delivery time: in stock
