EK06010005
compact-automatic-flange ball valve DN25 EK06 24-240V
- Delivery time
- 3 - 5 working days
Equipment
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
€2.26 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

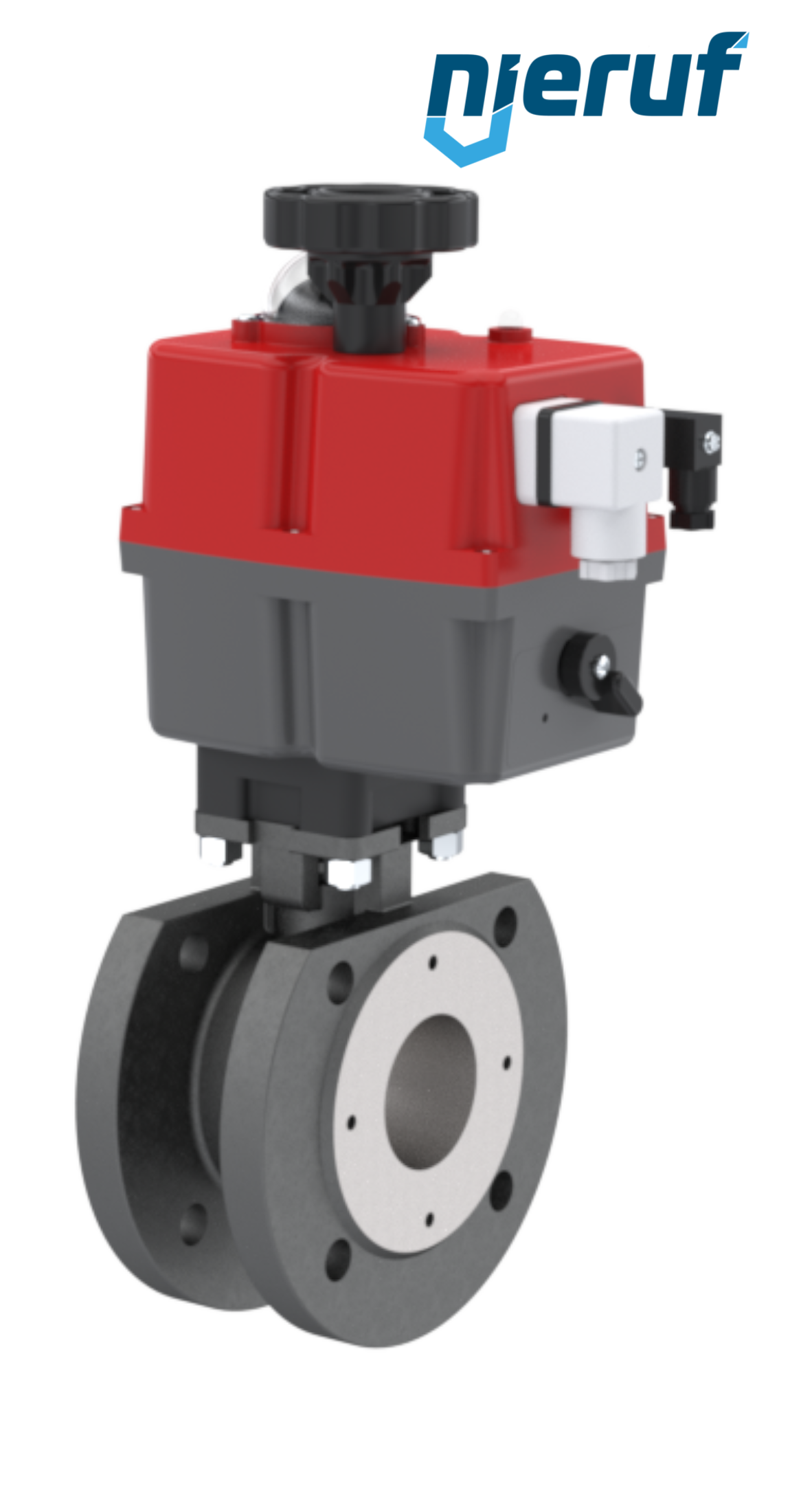

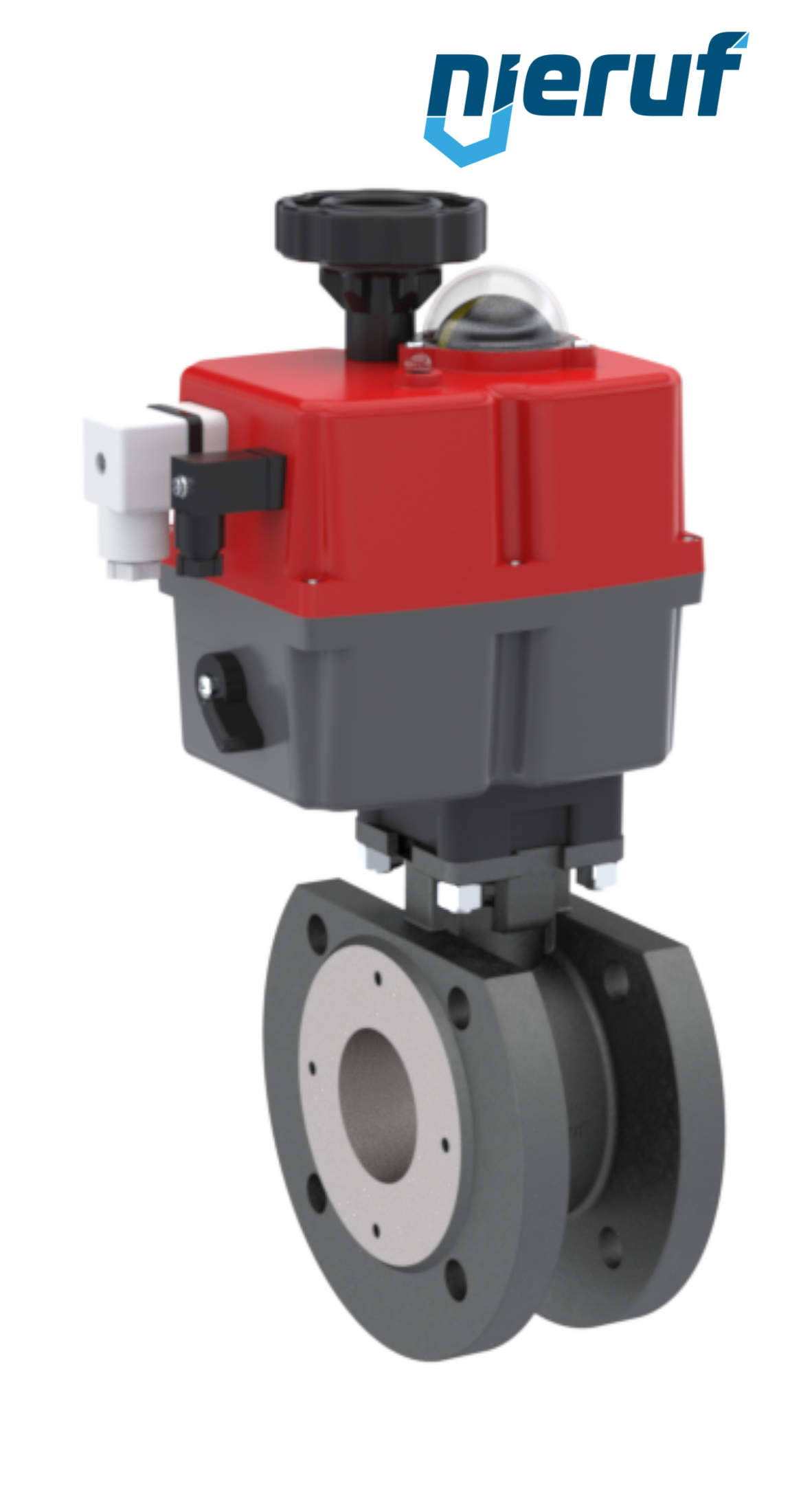

compact-automatic-flange ball valve DN25 EK06 24-240V
compact-automatic-flange ball valve DN25 carbon steel 1.0619 EK06 electronic actuator S20 - series S for 24-240V AC/DC
| product | compact-automatic-flange ball valve |
|---|---|
| type | EK06 |
| manufacturer | NieRuf |
| diameter | DN25 |
| connection | flange dimensions acc. DIN EN 1092-2 PN 16 |
| Seal steam | Viton |
| media | liquid and gaseous media |
| temperature | ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
| max. pressure | PN16 |
| design | flange ball valve with Wafer-design |
| body material | carbon steel 1.0619 |
| ball material | stainless steel 1.4308 |
| ball seal | PTFE / TFM |
| length | 50mm |
| actuator | electronic actuator S20 - series S for 24-240V AC/DC |
| actuator informations | corrosion resistant synthetic body |
| installation position | any position, not upside down |
| authorized for | TA Luft |
| product description | This high quality automatic-flange carbon steel ball valve (Wafer-design) with electronic actuator (series S = multi voltage) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
compact-automatic-flange ball valve DN25 EK06 24-240V
Article no.
: EK06010005
product:
compact-automatic-flange ball valve
type:
EK06
manufacturer:
NieRuf
diameter:
DN25
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
Viton
media:
liquid and gaseous media
temperature:
ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN16
design:
flange ball valve with Wafer-design
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4308
ball seal:
PTFE / TFM
length:
50mm
actuator:
electronic actuator S20 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
authorized for:
TA Luft
product description:
This high quality automatic-flange carbon steel ball valve (Wafer-design) with electronic actuator (series S = multi voltage) with visual position indicator and emergency operating.
Equipment
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel
Delivery time: in stock
