TF0101a005
Malleable cast iron fitting short bend no. 1a, DN25 - 1" inch galvanized
- Delivery time
- 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you
NIERUF-SERVICE

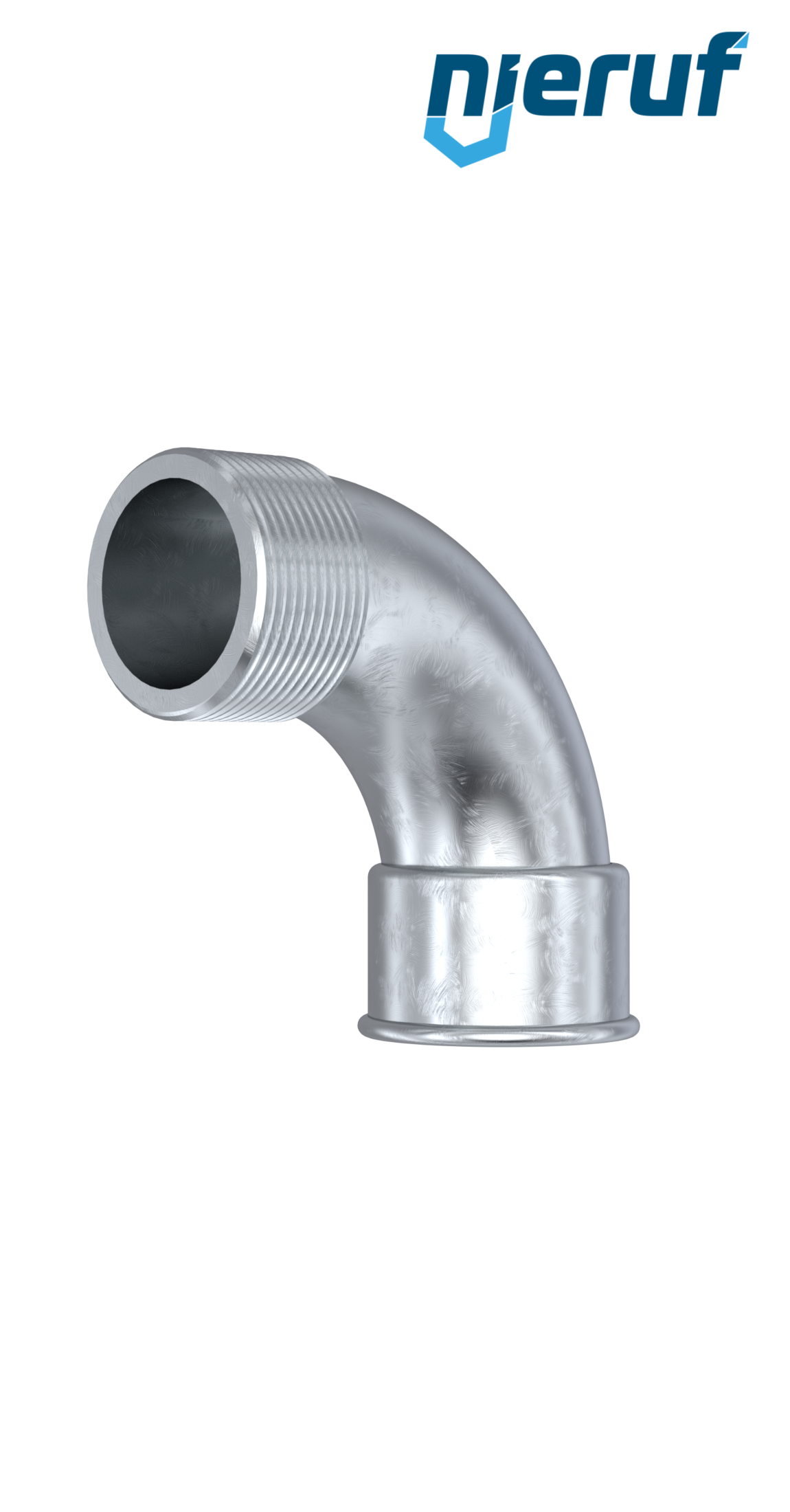

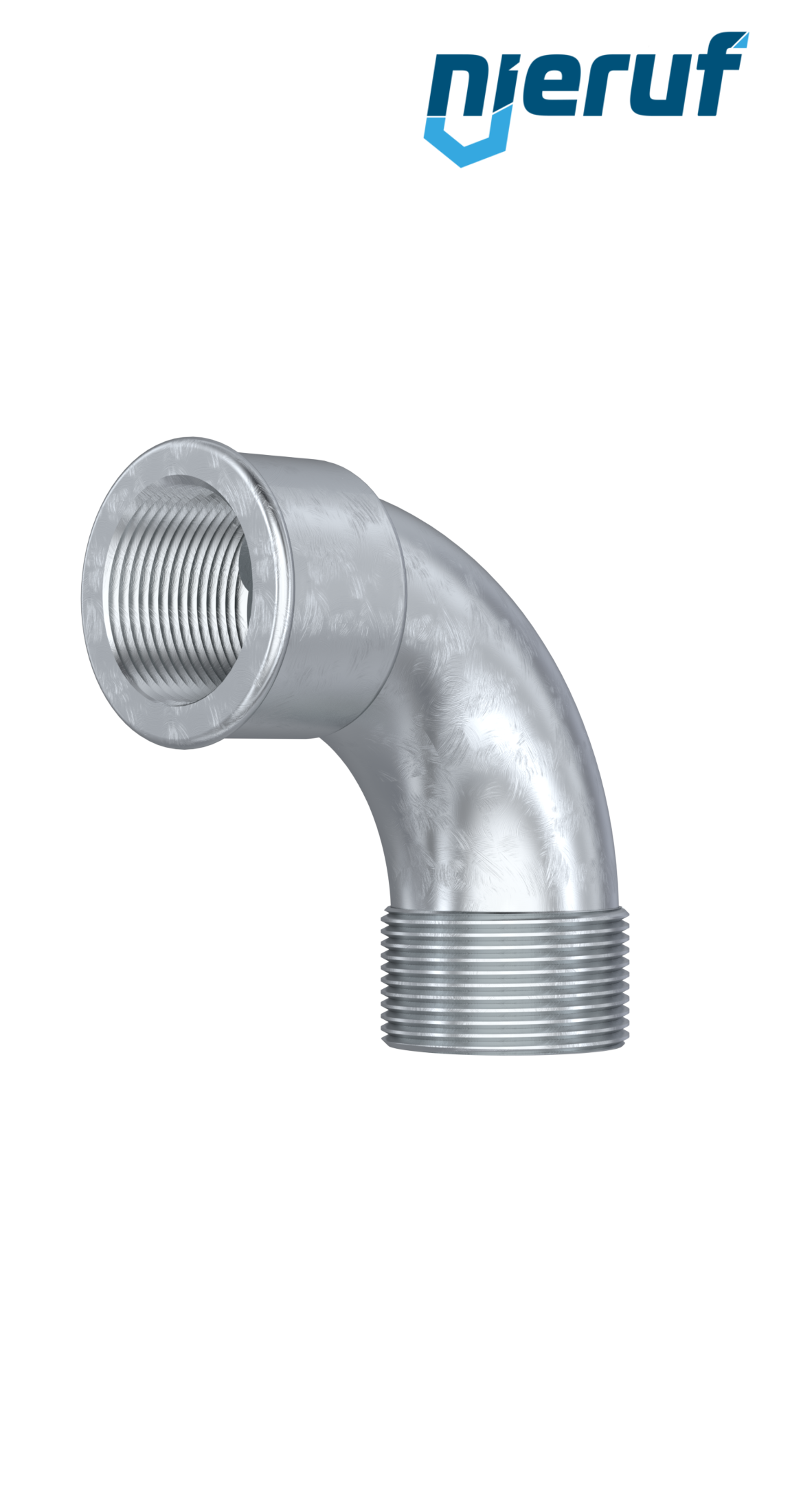

Malleable cast iron fitting short bend no. 1a, DN25 - 1" inch galvanized
short bend no. 1a with female x male thread DN25 - 1" inch malleable cast iron galvanized for liquid & gaseous media
| product | short bend |
|---|---|
| type | TF01-01a |
| manufacturer | NieRuf |
| design | 90° angle |
| version | ISO/EN D4 |
| diameter | DN25 - 1" inch |
| connection | female x male thread |
| thread | acc. to DIN EN 10226-1 / ISO 7-1 |
| authorized for | DVGW |
| max. working pressure | 25 bar from -20°C up to +120°C |
| material | Malleable cast iron EN 1562 galvanized |
| design symbol | A |
| model number | 1a |
| product feature | Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Malleable cast iron fitting short bend no. 1a, DN25 - 1" inch galvanized
Article no.
: TF0101a005
product:
short bend
type:
TF01-01a
manufacturer:
NieRuf
design:
90° angle
version:
ISO/EN D4
diameter:
DN25 - 1" inch
connection:
female x male thread
thread:
acc. to DIN EN 10226-1 / ISO 7-1
authorized for:
DVGW
max. working pressure:
25 bar from -20°C up to +120°C
material:
Malleable cast iron EN 1562 galvanized
design symbol:
A
model number:
1a
product feature:
Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems.
