TF01270009
Malleable cast iron fitting socket no. 270, DN65 - 2 1/2" inch galvanized
- Delivery time
- in stock
Questions about the article?
Our employee Max Eisele
will be happy to help you
NIERUF-SERVICE

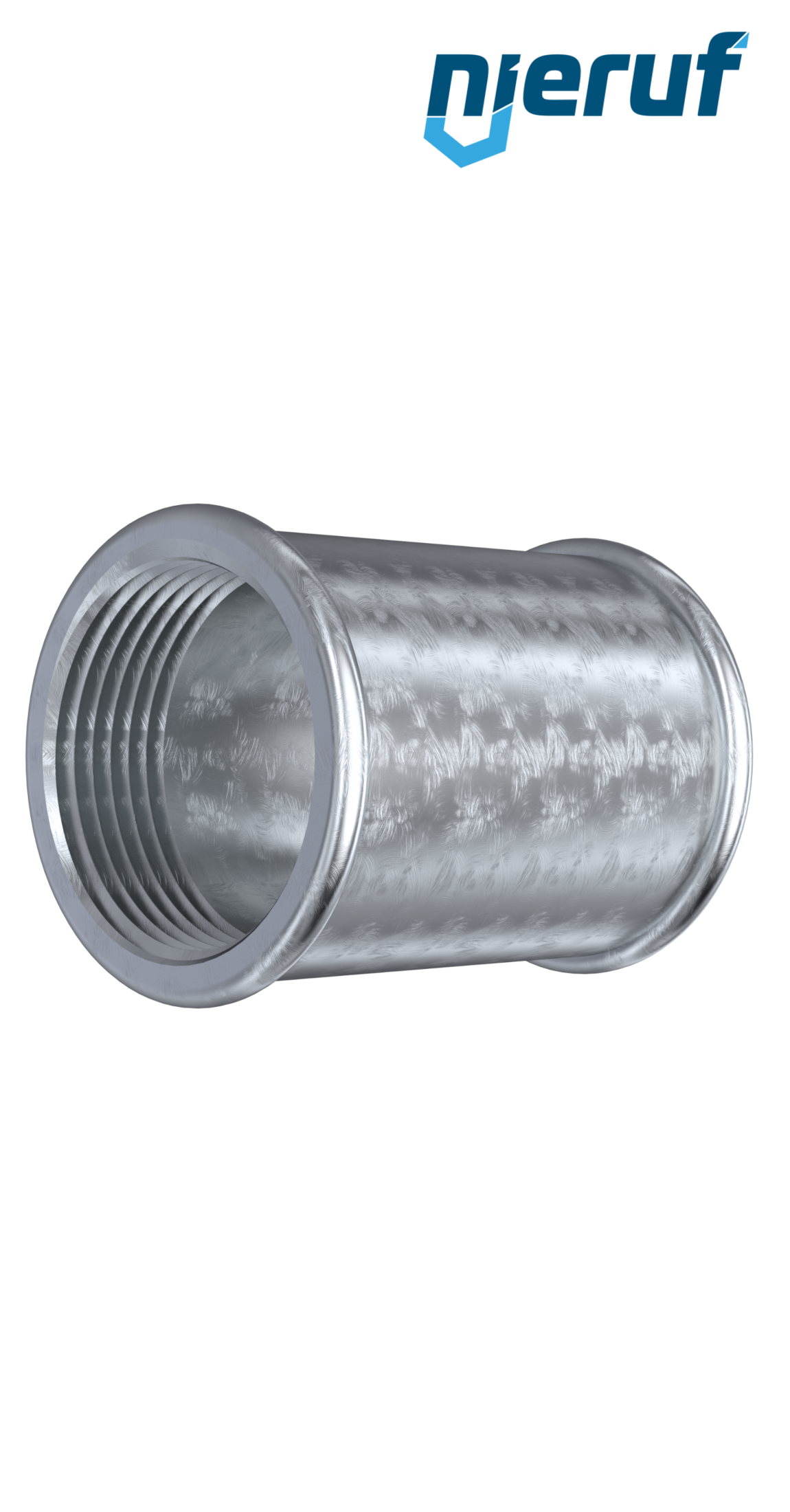

Malleable cast iron fitting socket no. 270, DN65 - 2 1/2" inch galvanized
socket no. 270 with female thread DN65 - 2 1/2" inch malleable cast iron galvanized for liquid & gaseous media
| product | socket |
|---|---|
| type | TF01-270 |
| manufacturer | NieRuf |
| version | ISO/EN M2 |
| diameter | DN65 - 2 1/2" inch |
| connection | female thread |
| thread | acc. to DIN EN 10226-1 / ISO 7-1 |
| authorized for | DVGW |
| max. working pressure | 25 bar from -20°C up to +120°C |
| material | Malleable cast iron EN 1562 galvanized |
| design symbol | A |
| model number | 270 |
| product feature | Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Malleable cast iron fitting socket no. 270, DN65 - 2 1/2" inch galvanized
Article no.
: TF01270009
product:
socket
type:
TF01-270
manufacturer:
NieRuf
version:
ISO/EN M2
diameter:
DN65 - 2 1/2" inch
connection:
female thread
thread:
acc. to DIN EN 10226-1 / ISO 7-1
authorized for:
DVGW
max. working pressure:
25 bar from -20°C up to +120°C
material:
Malleable cast iron EN 1562 galvanized
design symbol:
A
model number:
270
product feature:
Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems.
