PR02010000

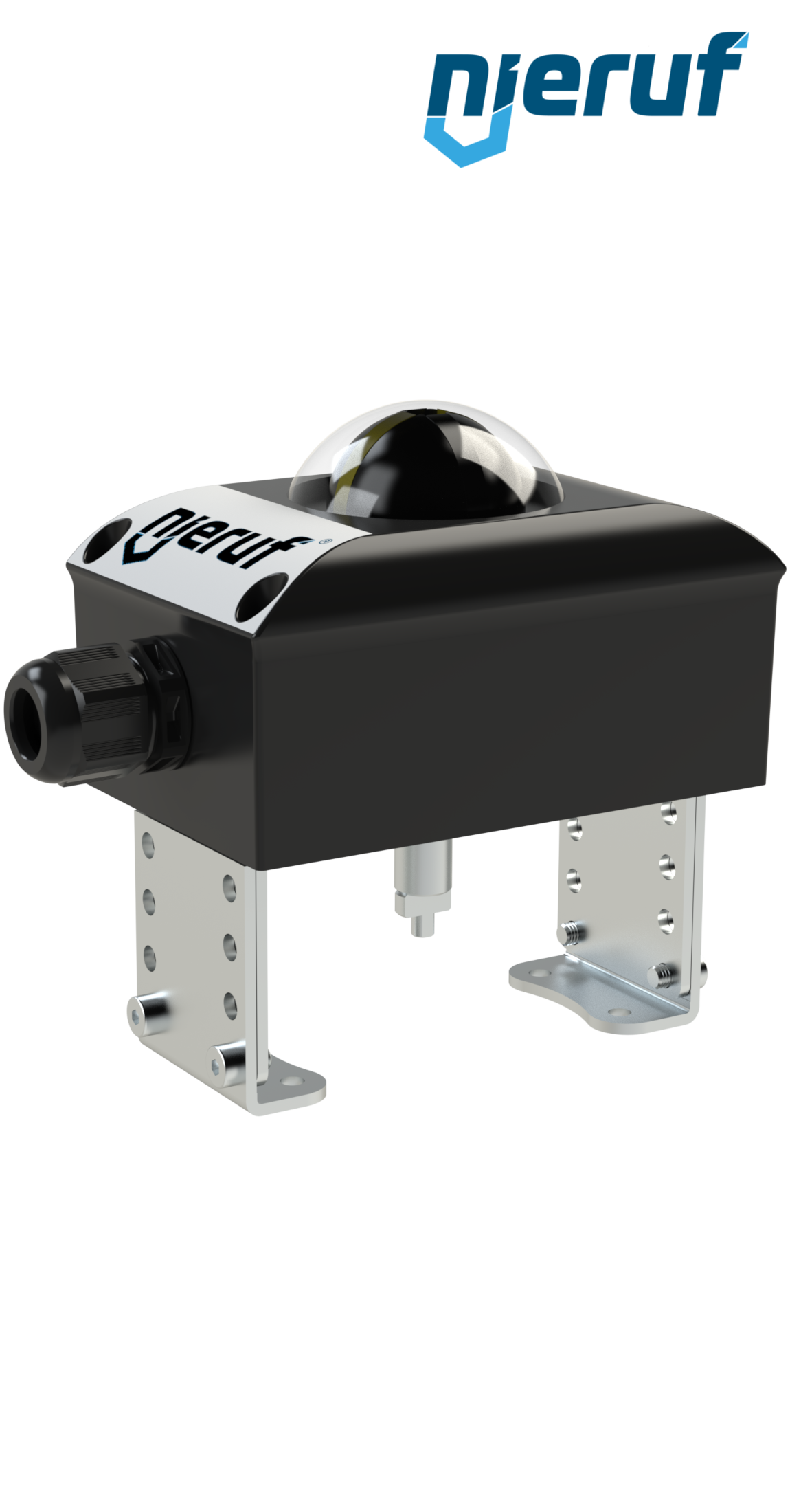

Position indicator PR02 mechanical micro switches ZF, D44X Aluminum
- Delivery time
- 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you
Downloads
Position indicator PR02 mechanical micro switches ZF, D44X Aluminum
Position indicator PR02 mechanical micro switches ZF, D44X, for open / closed - made of Aluminum
| product | Position indicator |
|---|---|
| type | PR02 |
| manufacturer | NieRuf |
| Housing material | Aluminum |
| bridge | Stainless steel AISI 304 |
| axis | Stainless steel AISI 303 |
| seal | EPDM, NBR |
| temperature | -25°C to +80°C |
| voltage | 12 - 250 V AC/DC |
| protection | IP67 VDE 0470 / EN 60529 |
| indication | 3D position indicator |
| Electrical design | mechanical micro switches ZF, D44X |
| signal | open + closed |
| Actuator hole spacings | 80 x 30mm | 130 x 30mm |
| mounting measurements | Cable gland M20x1,5 |

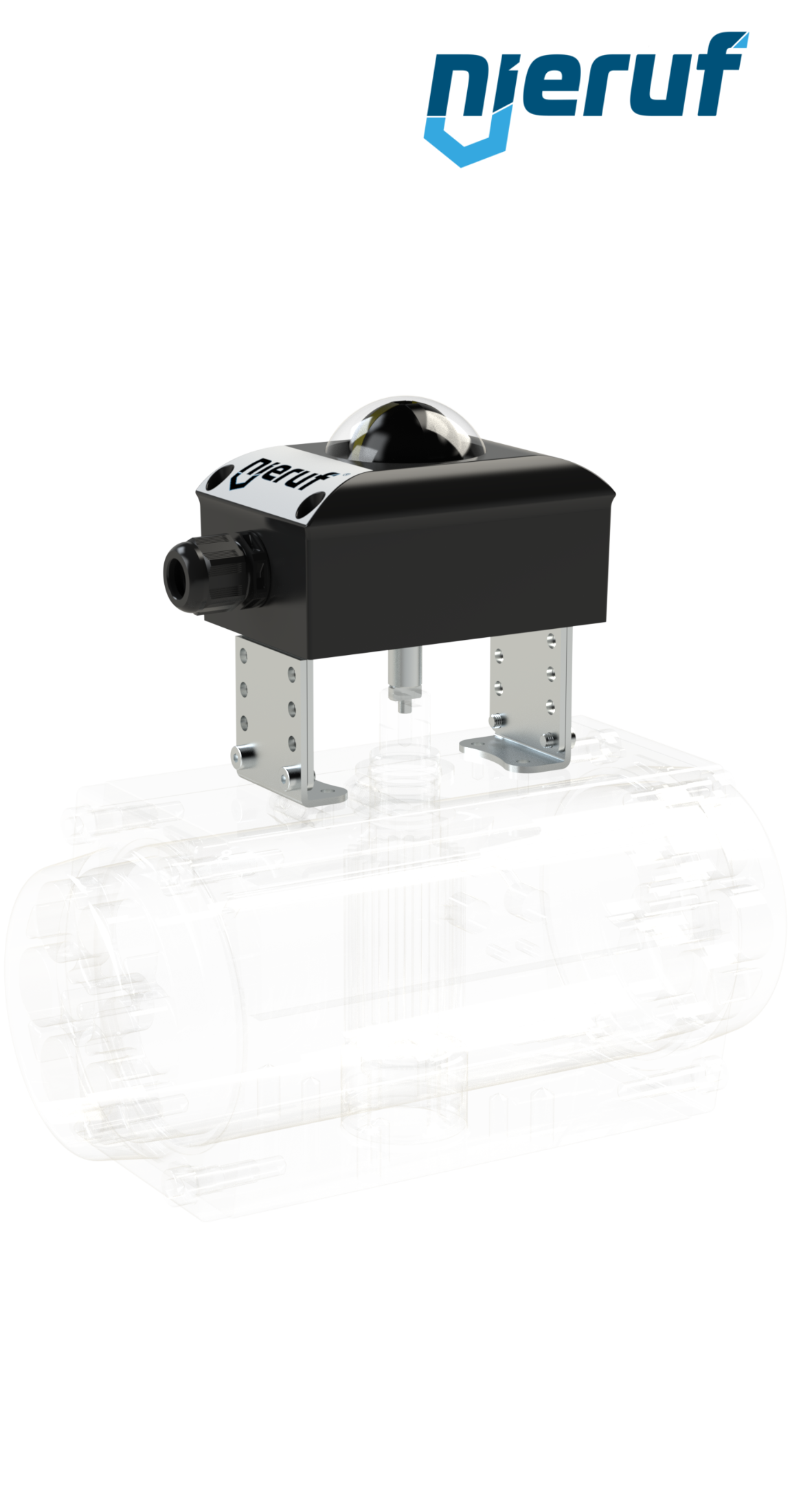

| product feature | Limit switch box with mechanical microswitch D44X, for actuators with hole pattern 80x30 mm or 130x30 mm. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Position indicator PR02 mechanical micro switches ZF, D44X Aluminum
Article no.
: PR02010000
product:
Position indicator
type:
PR02
manufacturer:
NieRuf
Housing material:
Aluminum
bridge:
Stainless steel AISI 304
axis:
Stainless steel AISI 303
seal:
EPDM, NBR
temperature:
-25°C to +80°C
voltage:
12 - 250 V AC/DC
protection:
IP67 VDE 0470 / EN 60529
indication:
3D position indicator
Electrical design:
mechanical micro switches ZF, D44X
signal:
open + closed
Actuator hole spacings:
80 x 30mm | 130 x 30mm
mounting measurements:
Cable gland M20x1,5
product feature:
Limit switch box with mechanical microswitch D44X, for actuators with hole pattern 80x30 mm or 130x30 mm.
