DM07030004
Flange-pressure reducing valve DN 20 PN40 DM07 stainless steel EPDM 5.0 - 15.0 bar
- Delivery time
- 3 - 5 working days
Equipment
pressure gauge 0 - 16,0 bar G 1/4" axial 50 mm stainless steel MM05
€101.27 VAT included.
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Flange DN20 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€14.40 VAT included.
flange seal DN20 PN10/16/25/40 27x61x2 Klingersil C 4400
€2.02 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

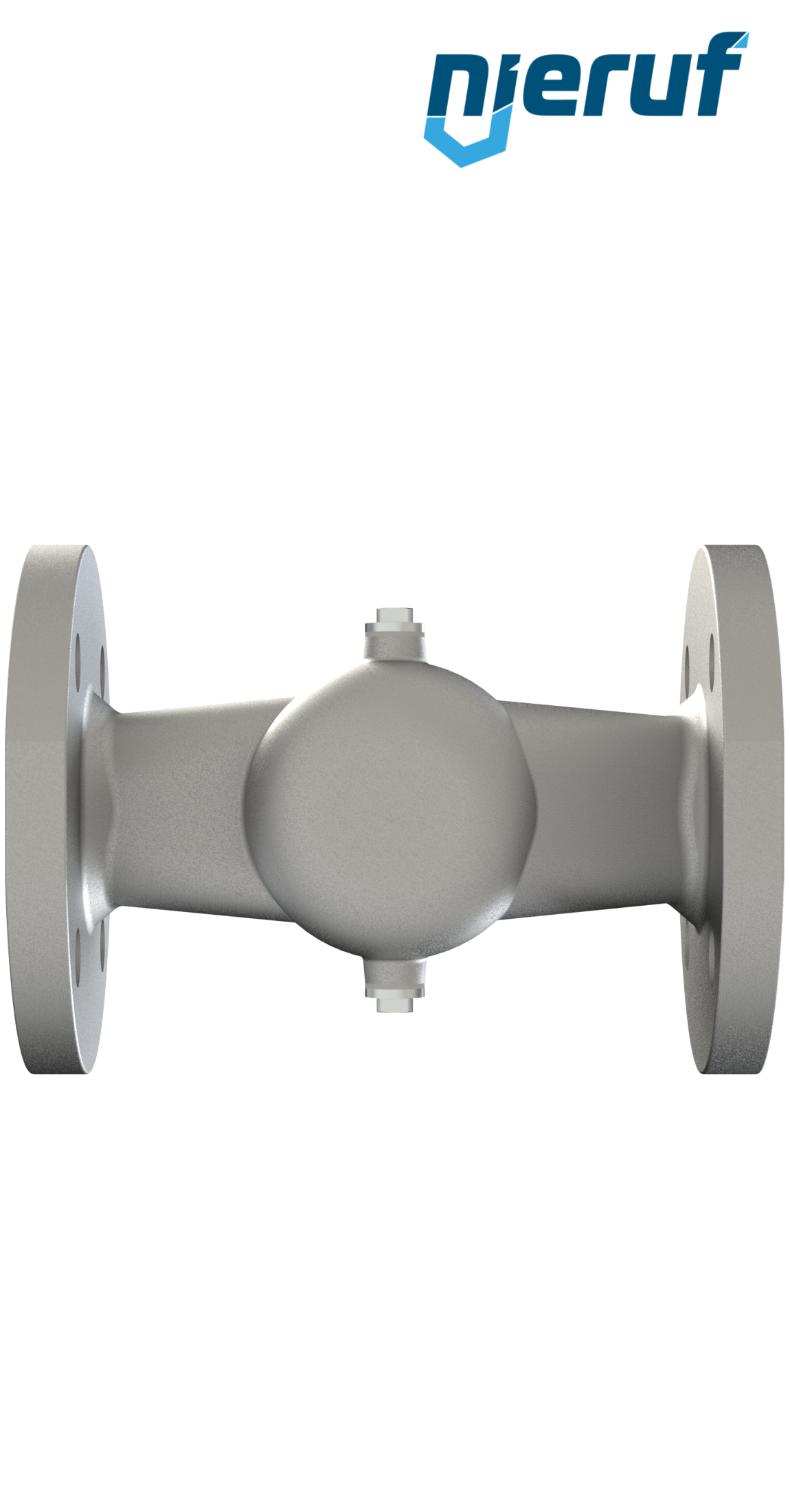

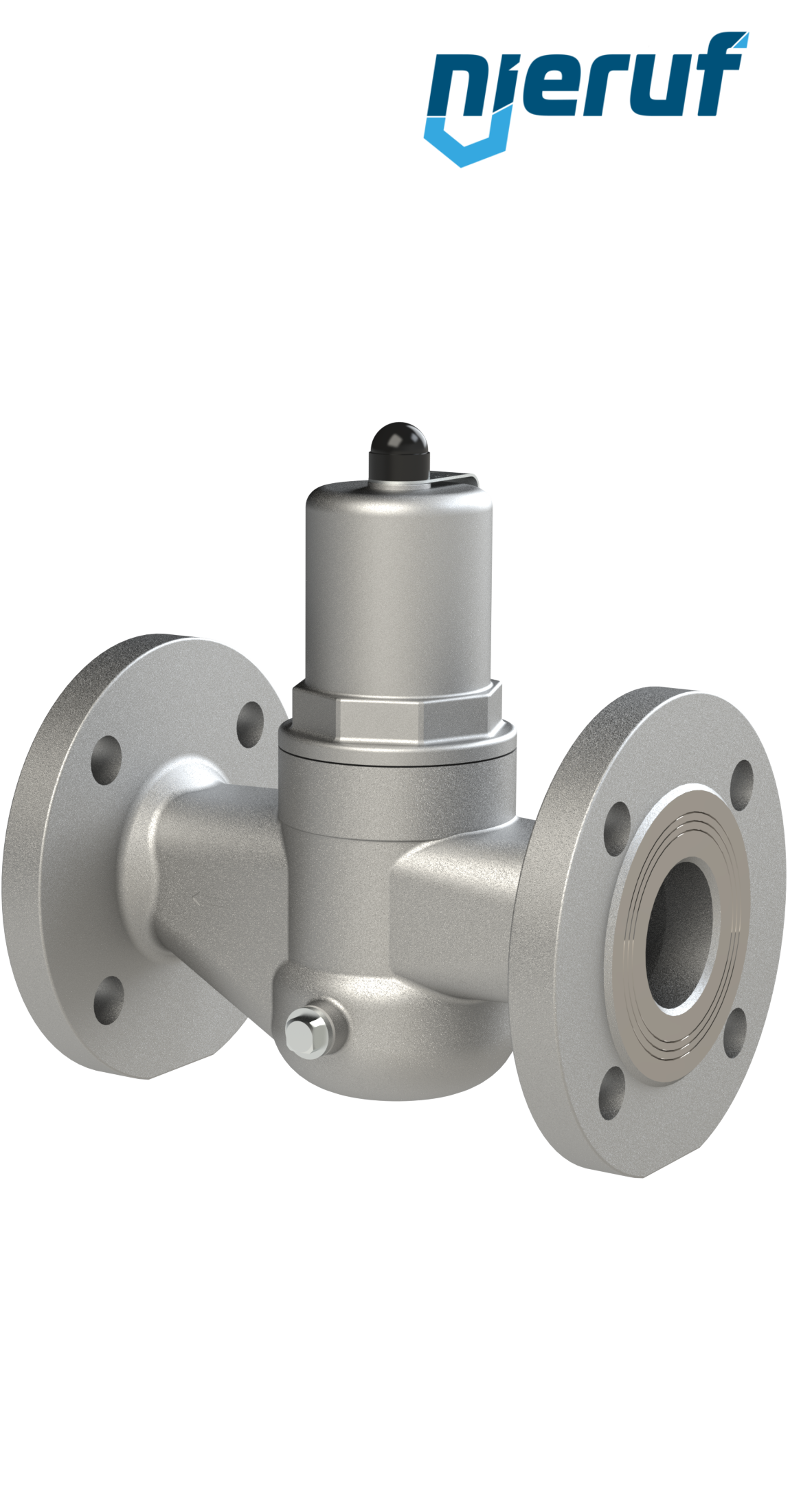

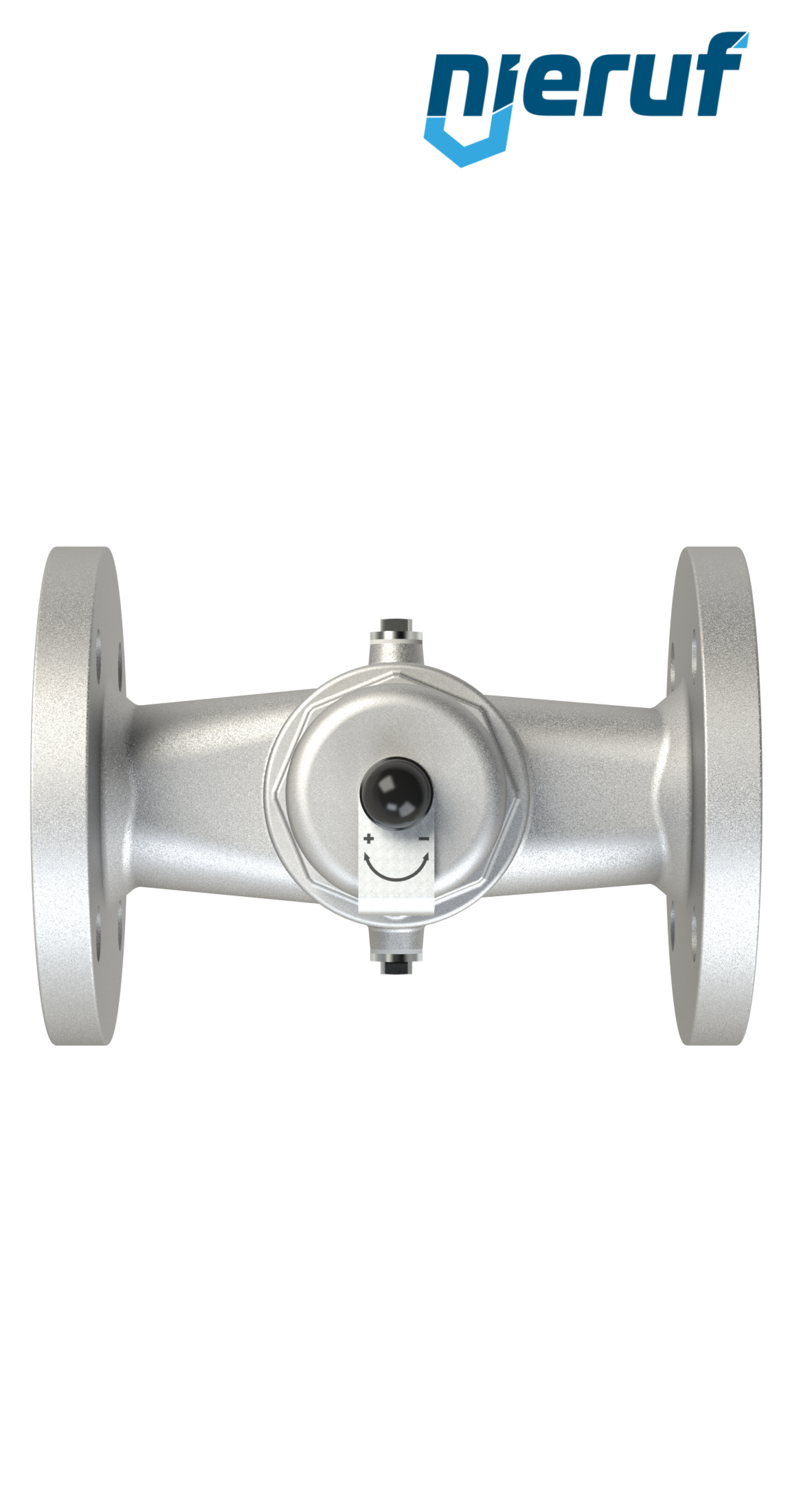

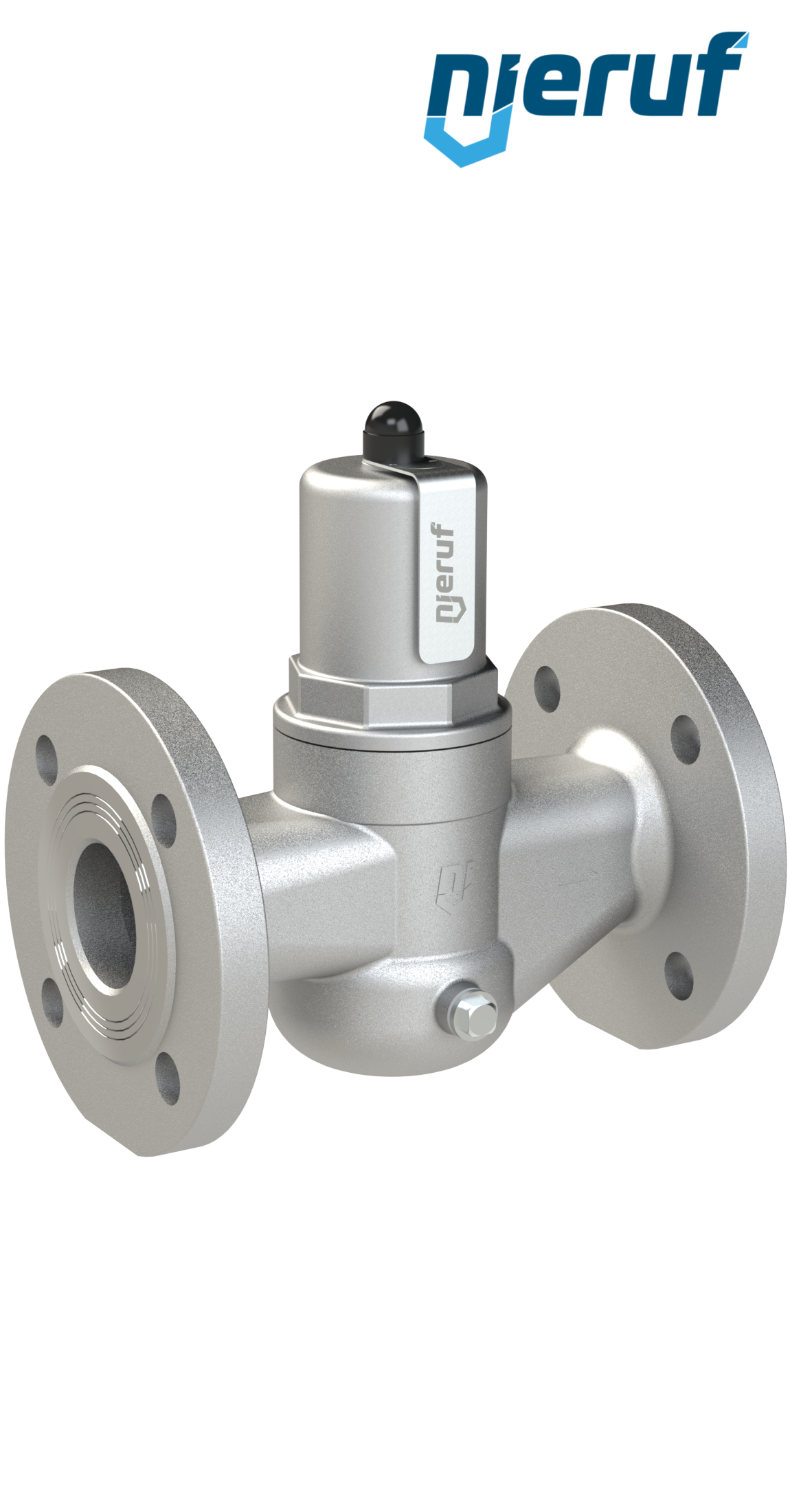

Flange-pressure reducing valve DN 20 PN40 DM07 stainless steel EPDM 5.0 - 15.0 bar
Flange-pressure reducing valve DN 20 PN40 flange acc. DIN EN 1092 made of stainless steel seal EPDM for liquid and gaseous media (no steam), set pressure 5.0 - 15.0 bar
| product | Flange-pressure reducing valve |
|---|---|
| type | DM07 |
| manufacturer | NieRuf |
| diameter | DN 20 PN40 |
| connection | flange acc. DIN EN 1092 |
| material | stainless steel |
| seal | EPDM |
| media | liquid and gaseous media (no steam) |
| temperature | -20°C up to +120°C (back pressure starting 8 bar max. +95°C) |
| range of adjustment | 5.0 - 15.0 bar |
| max. inlet pressure | 40 bar |
| design | straightway form |
| installation position | any position |
| SIL - safety integrity level | SIL 2 |
| product feature | High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange-pressure reducing valve DN 20 PN40 DM07 stainless steel EPDM 5.0 - 15.0 bar
Article no.
: DM07030004
product:
Flange-pressure reducing valve
type:
DM07
manufacturer:
NieRuf
diameter:
DN 20 PN40
connection:
flange acc. DIN EN 1092
material:
stainless steel
seal:
EPDM
media:
liquid and gaseous media (no steam)
temperature:
-20°C up to +120°C (back pressure starting 8 bar max. +95°C)
range of adjustment:
5.0 - 15.0 bar
max. inlet pressure:
40 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle.
