BE01000108
Pressure vessel horizontal BE01 1000 liter, 0-11 bar, steel galvanized
- Delivery time
- 3 - 5 working days
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 16,0 bar without filling, dry
€164.70 VAT included.
2 way ball valve DN25 - 1" inch GK01 female thread
€19.52 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

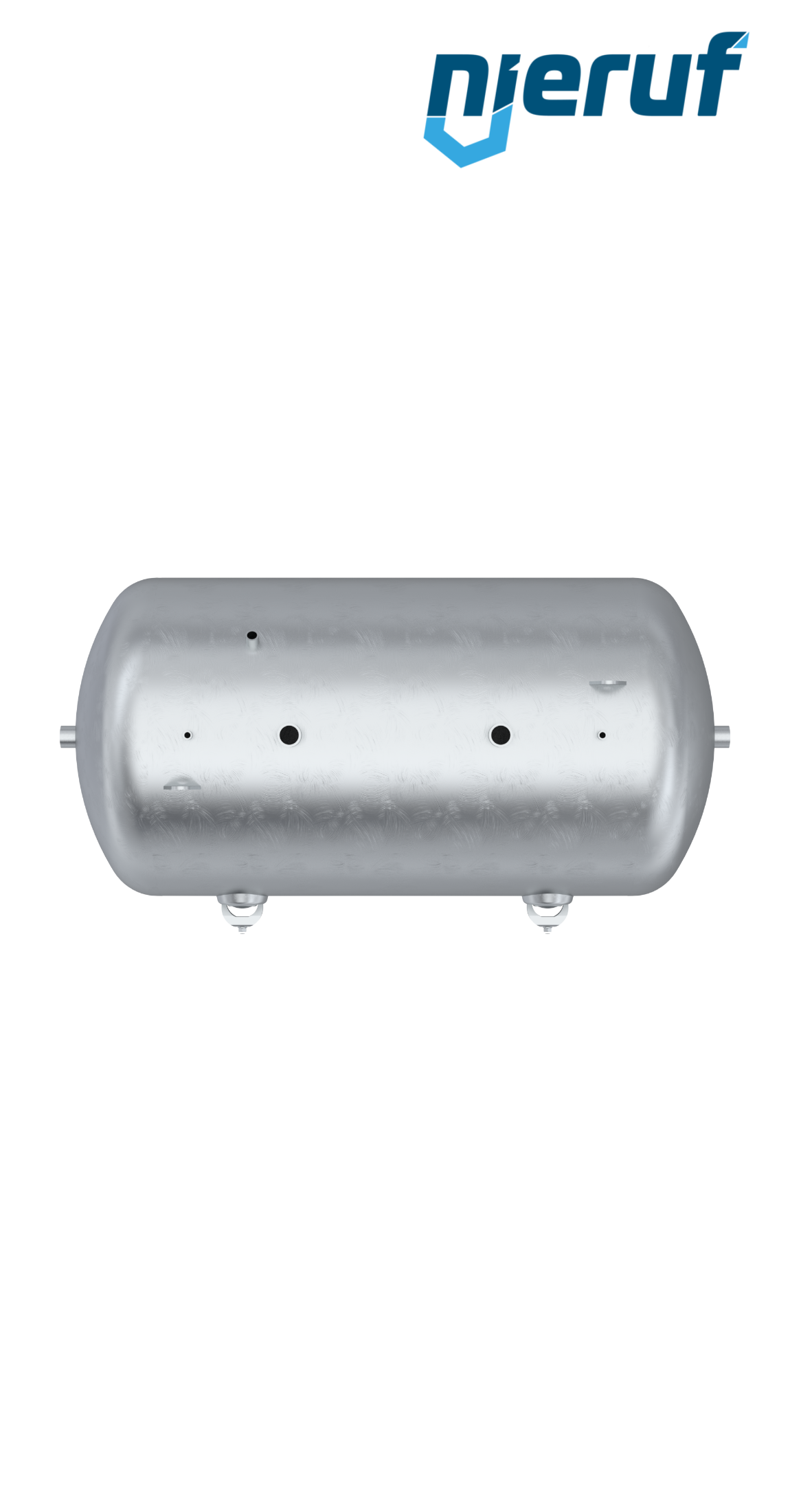

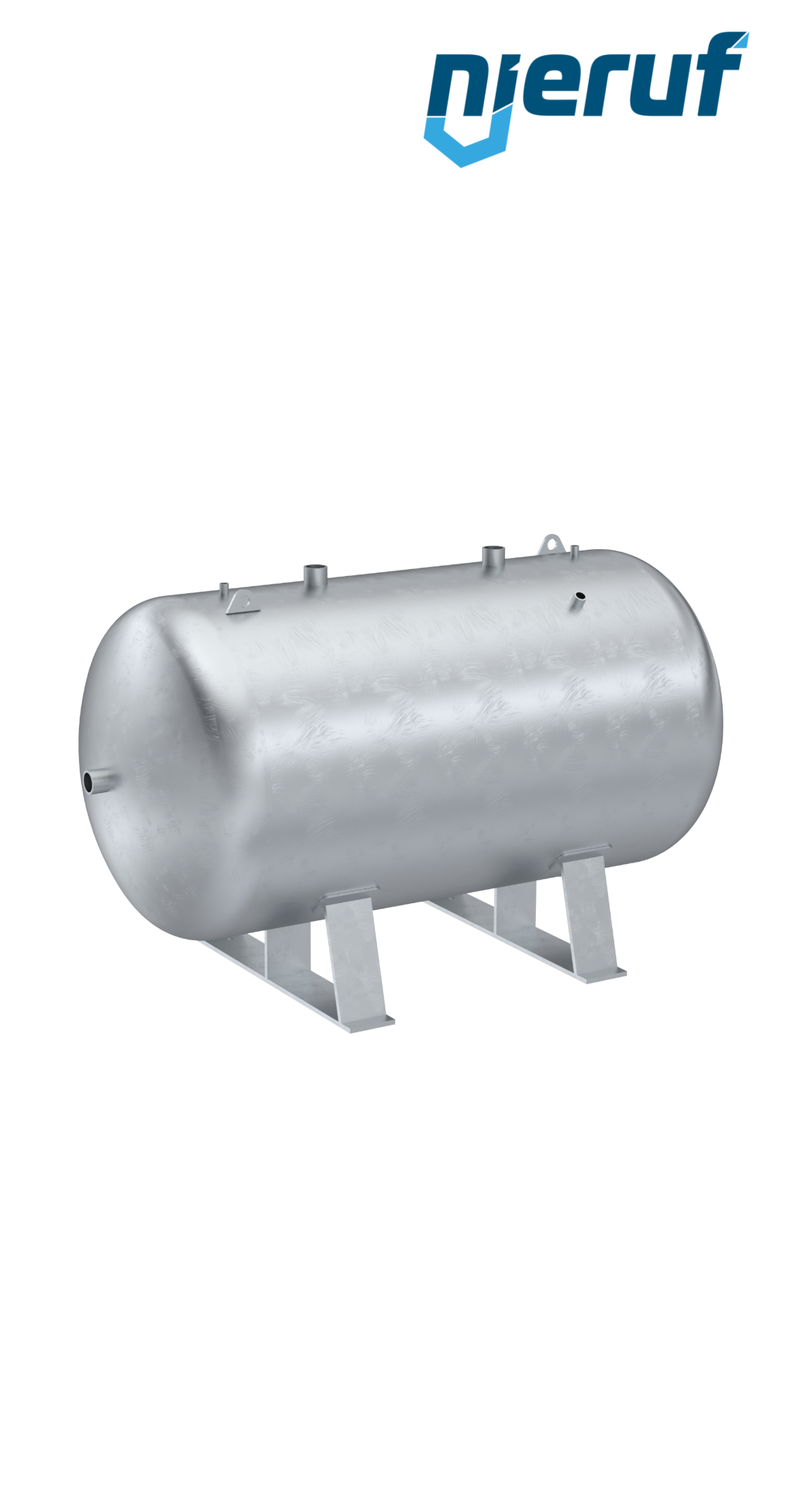

Pressure vessel horizontal BE01 1000 liter, 0-11 bar, steel galvanized
Pressure vessel BE01 with 1000 liter volume horizontal with operating pressure 0-11 bar made of steel galvanized and nominal size 800 mm
| product | Pressure vessel |
|---|---|
| type | BE01 |
| manufacturer | NieRuf |
| volume | 1000 liter |
| nominal size | 800 mm |
| height | 905 mm |
| length | 2120 mm |
| operating pressure | 0-11 bar |
| version | horizontal |
| temperature | -20°C up to +50°C |
| material | steel galvanized |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel horizontal BE01 1000 liter, 0-11 bar, steel galvanized
Article no.
: BE01000108
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
1000 liter
nominal size:
800 mm
height:
905 mm
length:
2120 mm
operating pressure:
0-11 bar
version:
horizontal
temperature:
-20°C up to +50°C
material:
steel galvanized
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 16,0 bar without filling, dry
Delivery time: in stock
