BE01010104
Pressure vessel horizontal BE01 250 liter, 0-11 bar, steel primed
- Delivery time
- 3 - 5 working days
Equipment
2 way ball valve DN15 - 1/2" inch GK01 female thread
€8.81 VAT included.
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 16,0 bar without filling, dry
€164.70 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

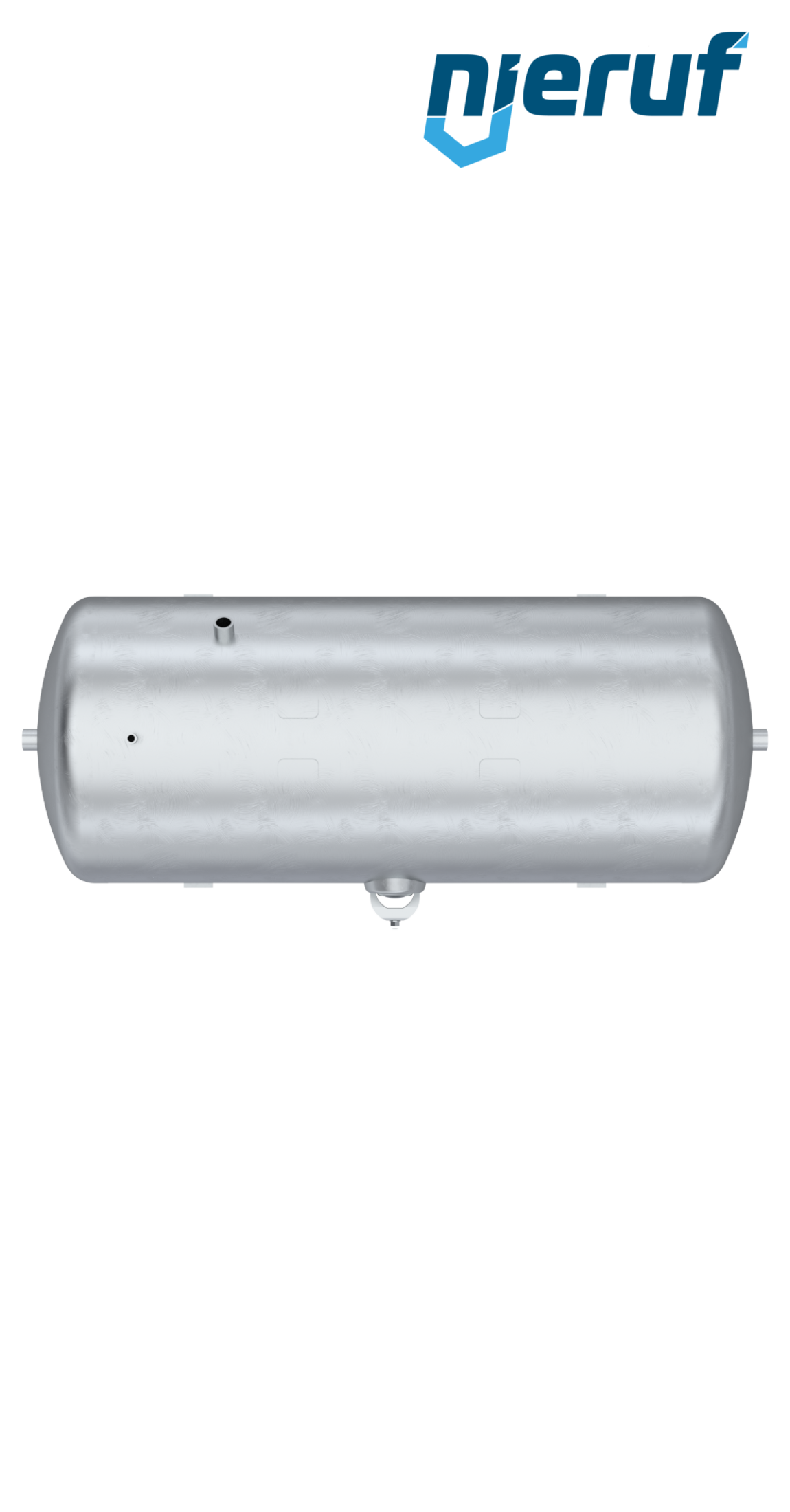

Pressure vessel horizontal BE01 250 liter, 0-11 bar, steel primed
Pressure vessel BE01 with 250 liter volume horizontal with operating pressure 0-11 bar made of steel primed (inside raw) and nominal size 500 mm
| product | Pressure vessel |
|---|---|
| type | BE01 |
| manufacturer | NieRuf |
| volume | 250 liter |
| nominal size | 500 mm |
| height | 632 mm |
| length | 1400 mm |
| operating pressure | 0-11 bar |
| version | horizontal |
| temperature | -20°C up to +50°C |
| material | steel primed (inside raw) |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel horizontal BE01 250 liter, 0-11 bar, steel primed
Article no.
: BE01010104
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
250 liter
nominal size:
500 mm
height:
632 mm
length:
1400 mm
operating pressure:
0-11 bar
version:
horizontal
temperature:
-20°C up to +50°C
material:
steel primed (inside raw)
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 16,0 bar without filling, dry
