BE01001111
Pressure vessel horizontal BE01 3000 liter, 0-16 bar, steel galvanized
- Delivery time
- 3 - 5 working days
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 25,0 bar without filling, dry
€164.70 VAT included.
2 way ball valve DN25 - 1" inch GK01 female thread
€19.52 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

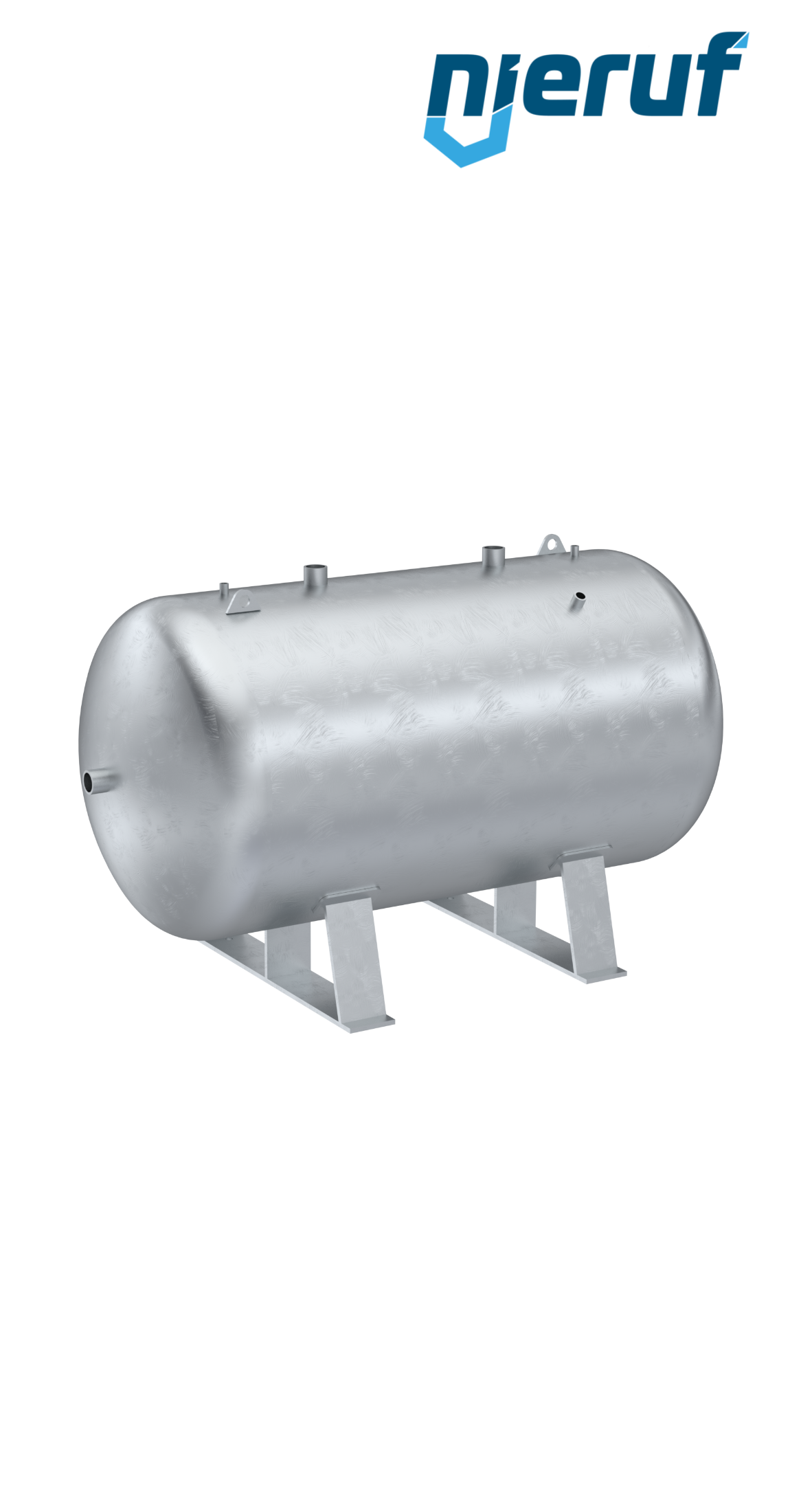

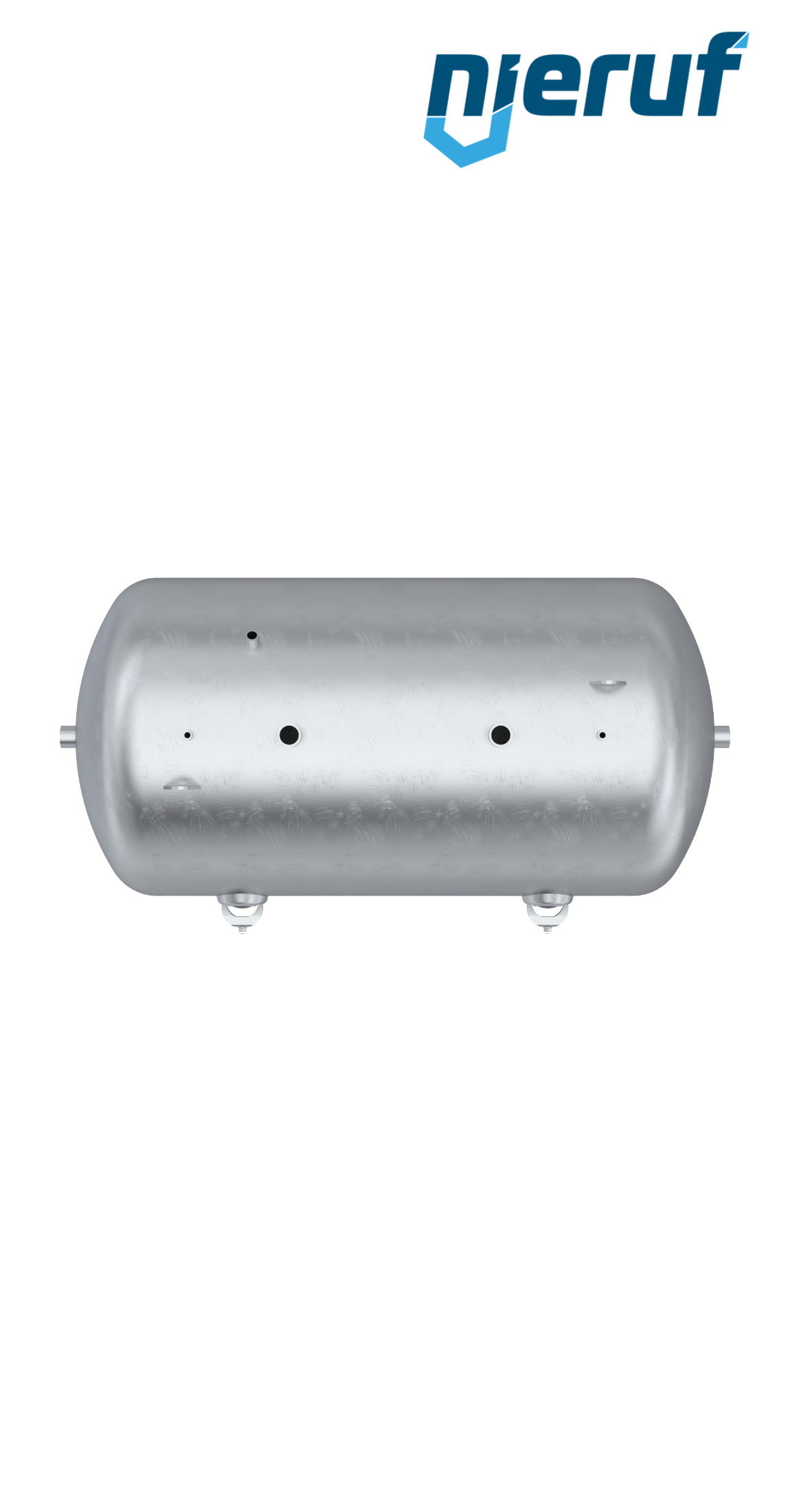

Pressure vessel horizontal BE01 3000 liter, 0-16 bar, steel galvanized
Pressure vessel BE01 with 3000 liter volume horizontal with operating pressure 0-16 bar made of steel galvanized and nominal size 1250 mm
| product | Pressure vessel |
|---|---|
| type | BE01 |
| manufacturer | NieRuf |
| volume | 3000 liter |
| nominal size | 1250 mm |
| height | 1450 mm |
| length | 2560 mm |
| operating pressure | 0-16 bar |
| version | horizontal |
| temperature | -20°C up to +50°C |
| material | steel galvanized |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel horizontal BE01 3000 liter, 0-16 bar, steel galvanized
Article no.
: BE01001111
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
3000 liter
nominal size:
1250 mm
height:
1450 mm
length:
2560 mm
operating pressure:
0-16 bar
version:
horizontal
temperature:
-20°C up to +50°C
material:
steel galvanized
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 25,0 bar without filling, dry
Delivery time: 2 - 3 weeks
