BE01011102
Pressure vessel horizontal BE01 90 liter, 0-16 bar, steel primed
- Delivery time
- 3 - 5 working days
Equipment
2 way ball valve DN15 - 1/2" inch GK01 female thread
€8.81 VAT included.
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 25,0 bar without filling, dry
€164.70 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

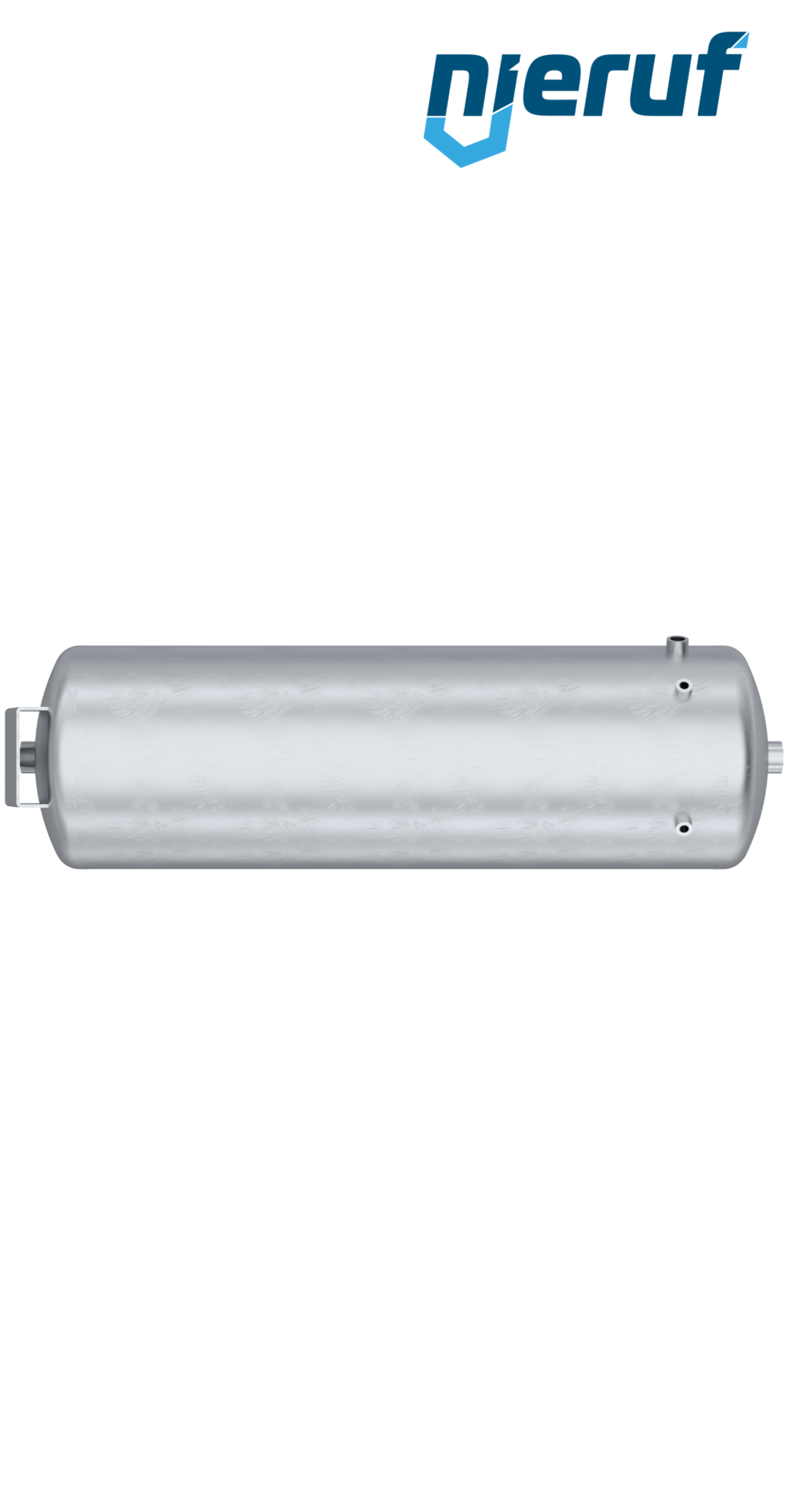

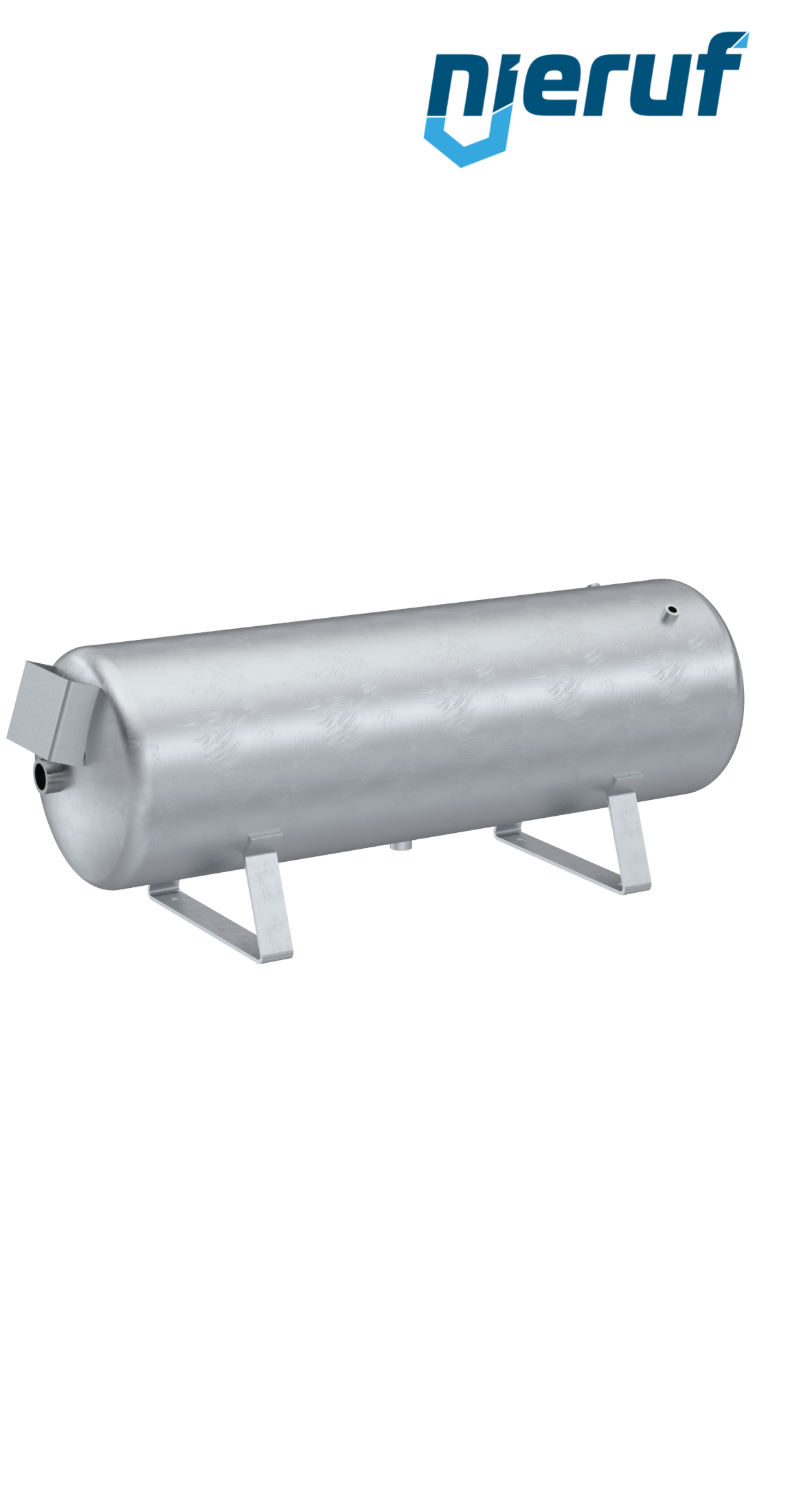

Pressure vessel horizontal BE01 90 liter, 0-16 bar, steel primed
Pressure vessel BE01 with 90 liter volume horizontal with operating pressure 0-16 bar made of steel primed (inside raw) and nominal size 360 mm
| product | Pressure vessel |
|---|---|
| type | BE01 |
| manufacturer | NieRuf |
| volume | 90 liter |
| nominal size | 360 mm |
| height | 430 mm |
| length | 980 mm |
| operating pressure | 0-16 bar |
| version | horizontal |
| temperature | -10°C up to +50°C |
| material | steel primed (inside raw) |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel horizontal BE01 90 liter, 0-16 bar, steel primed
Article no.
: BE01011102
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
90 liter
nominal size:
360 mm
height:
430 mm
length:
980 mm
operating pressure:
0-16 bar
version:
horizontal
temperature:
-10°C up to +50°C
material:
steel primed (inside raw)
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 25,0 bar without filling, dry
Delivery time: 2 - 3 weeks
