SV01000306

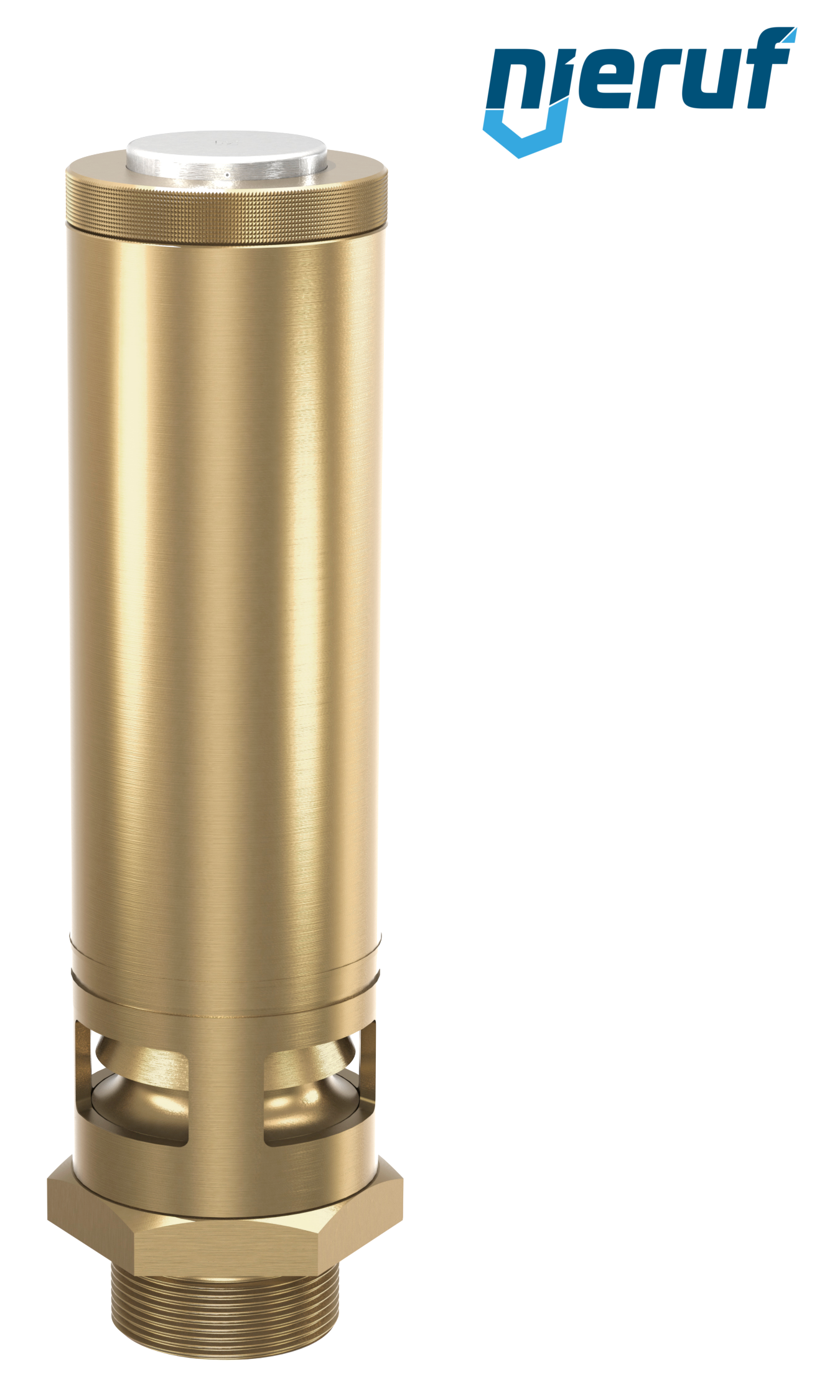

safety valve 1 1/4" m SV01 for air PTFE brass
- Delivery time
- 3 - 5 working days
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you
safety valve 1 1/4" m SV01 for air PTFE brass
safety valve 1 1/4" m Typ SV01 atmospheric discharg for air, made of brass with an PTFE seal, pressure 25,1 - 50,0 bar
| product | safety valve |
|---|---|
| type | SV01 |
| manufacturer | NieRuf |
| diameter | 1 1/4" m |
| d0 | 31,0 mm |
| connection | male screw threaded BSP-P |
| seal | PTFE |
| media | neutral gaseous media |
| temperature | -60°C to +225°C |
| set pressure | 25,1 - 50,0 bar |
| design | atmospheric discharg |
| material | brass |
| lifting | twist-type lifting mechanism |
| type test approval | TUV = D/G 2003 / EG = S/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position. |
| SIL - safety integrity level | SIL 3 |
| product feature 1 | for air |
| product feature 2 | cylindrical form, atmospheric discharge, for air and similar neutral, non-toxic and non-flammable gases that can be freely discharged into the atmosphere. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1 1/4" m SV01 for air PTFE brass
Article no.
: SV01000306
product:
safety valve
type:
SV01
manufacturer:
NieRuf
diameter:
1 1/4" m
d0:
31,0 mm
connection:
male screw threaded BSP-P
seal:
PTFE
media:
neutral gaseous media
temperature:
-60°C to +225°C
set pressure:
25,1 - 50,0 bar
design:
atmospheric discharg
material:
brass
lifting:
twist-type lifting mechanism
type test approval:
TUV = D/G 2003 / EG = S/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position.
SIL - safety integrity level:
SIL 3
product feature 1:
for air
product feature 2:
cylindrical form, atmospheric discharge, for air and similar neutral, non-toxic and non-flammable gases that can be freely discharged into the atmosphere.
