MV04110003

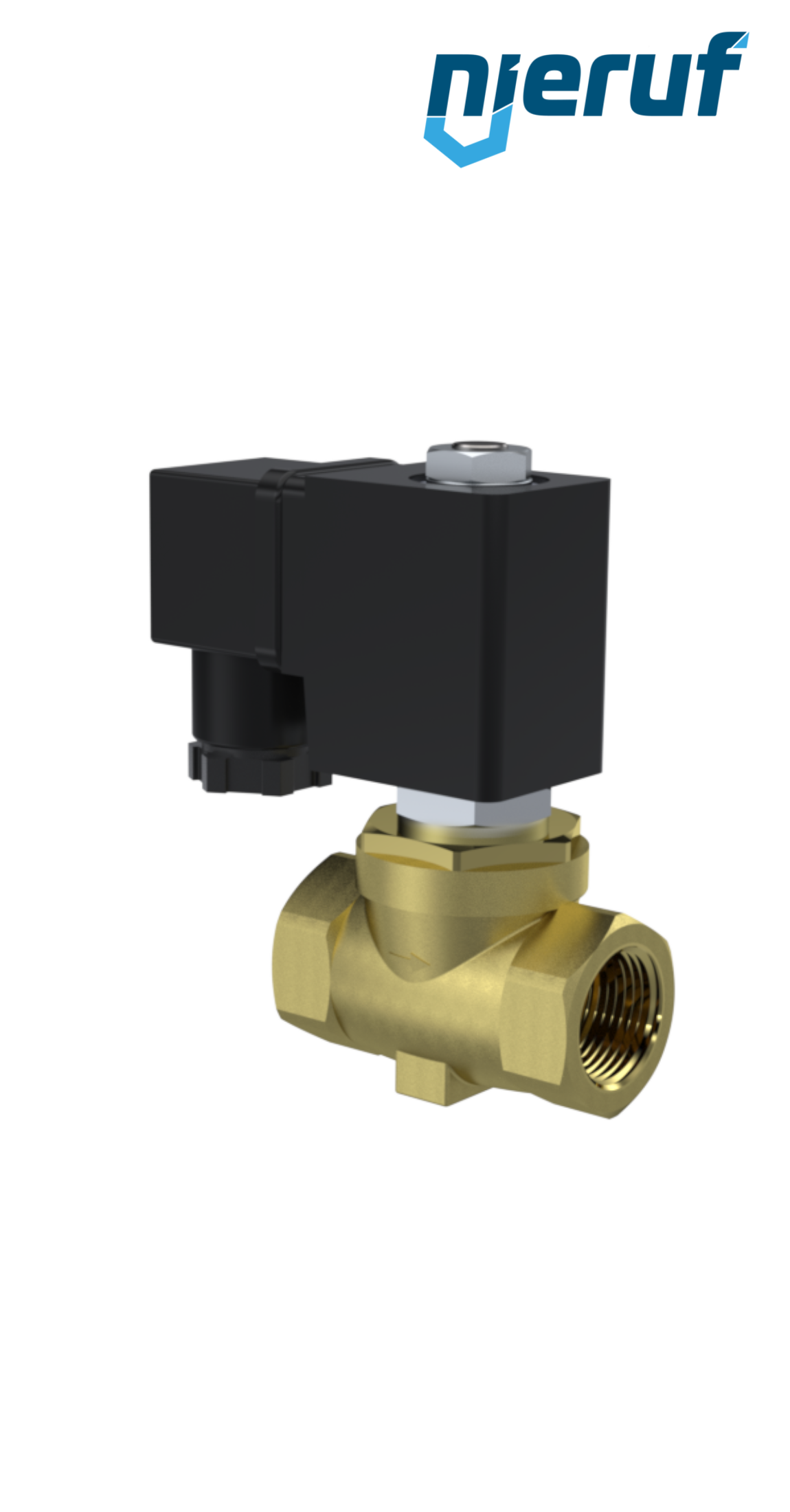

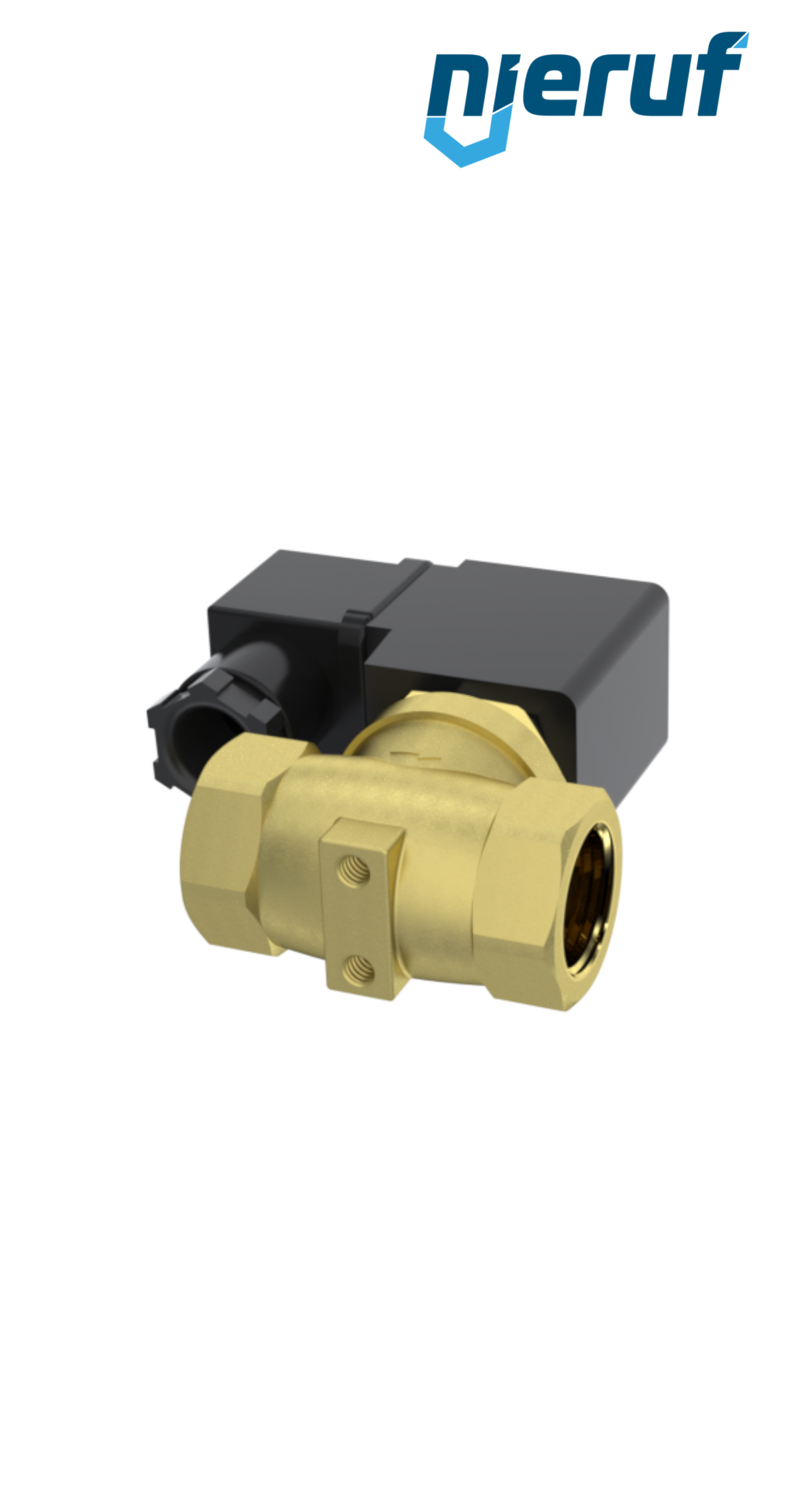

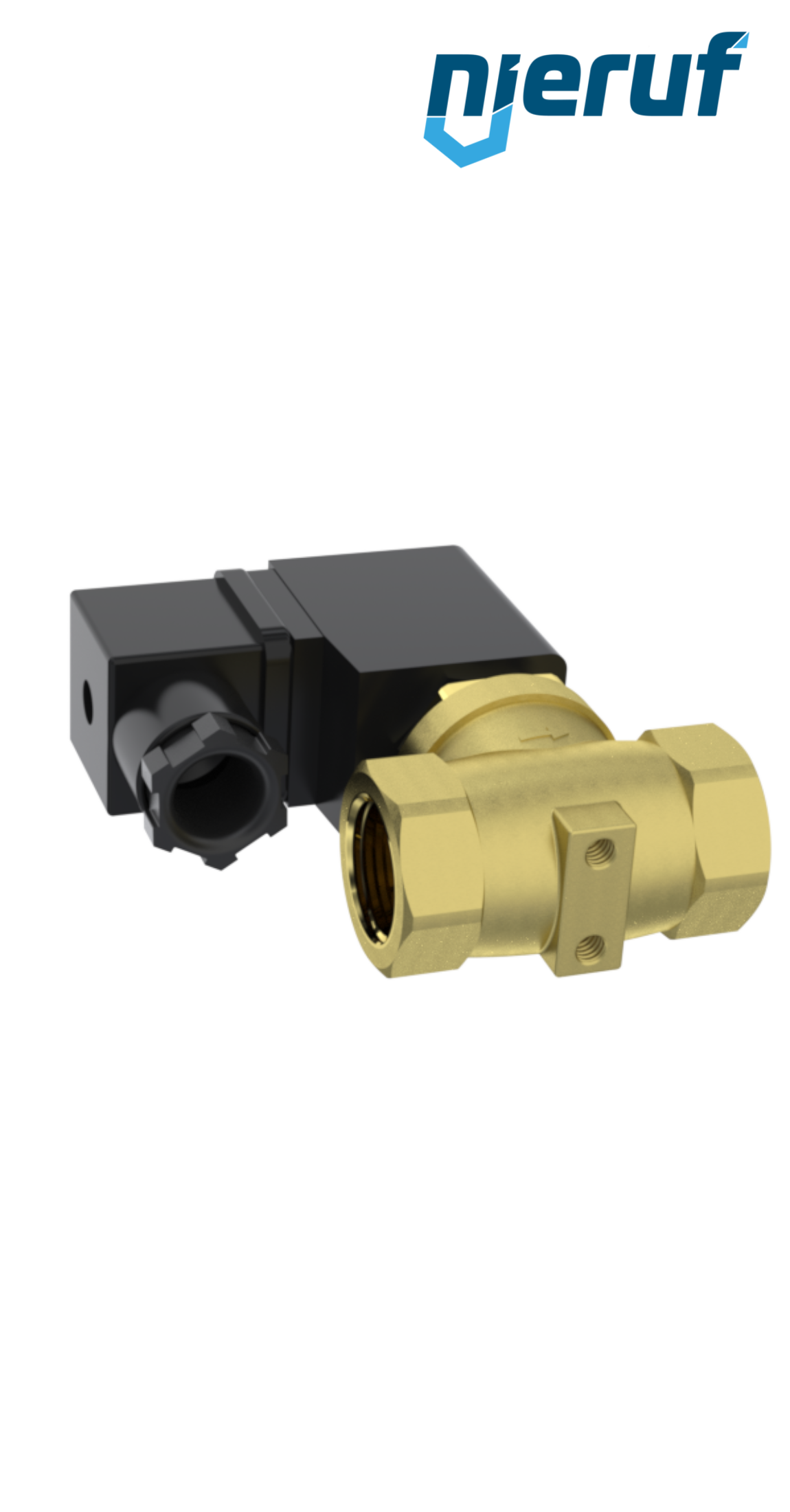

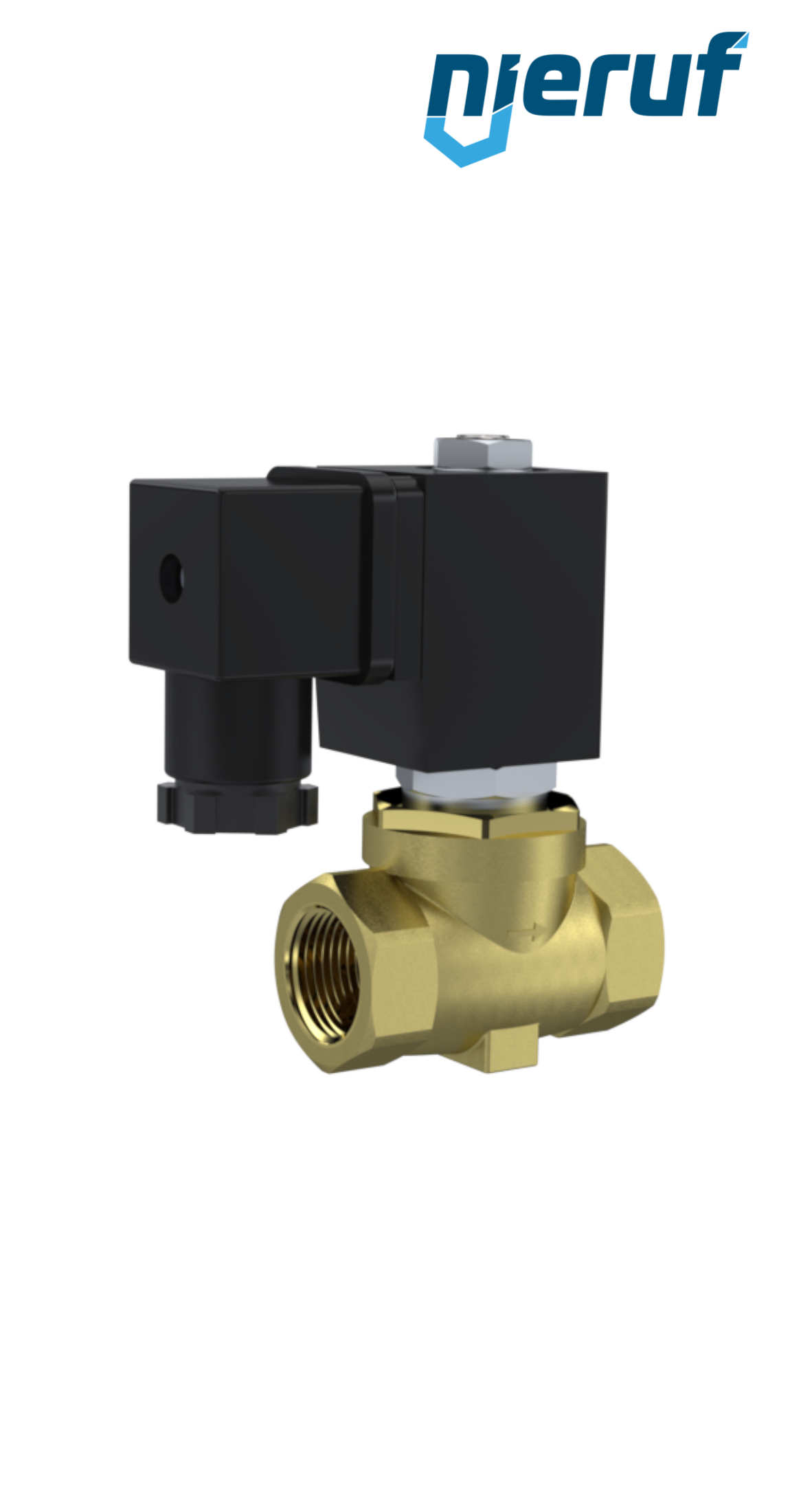

Solenoid valve G 1/2" Inch brass MV04 EPDM 230V 50Hz
- Delivery time
- 3 - 5 working days
Equipment
hexagon nipple 1/2" inch male stainless steel 316
€2.38 VAT included.
hose nozzle 1/2" 12.7 mm stainless steel 1.4408 ST01
€3.33 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Downloads
Solenoid valve G 1/2" Inch brass MV04 EPDM 230V 50Hz
Solenoid valve G 1/2" Inch DN 8.0 made of brass seal EPDM servo controlled nominal voltage 230V 50Hz pressure 0.1 - 16 bar
| product | Solenoid valve |
|---|---|
| type | MV04 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN 8.0 |
| connection | G 1/2" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 1,50 m³/h |
| function | NC - normally closed |
| control | servo controlled |
| material | brass |
| seal | EPDM |
| voltage | 230V 50Hz |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 22 VA |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | liquid and gaseous media |
| temperature media | -10°C up to +120°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0.1 - 16 bar |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve G 1/2" Inch brass MV04 EPDM 230V 50Hz
Article no.
: MV04110003
product:
Solenoid valve
type:
MV04
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN 8.0
connection:
G 1/2" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
1,50 m³/h
function:
NC - normally closed
control:
servo controlled
material:
brass
seal:
EPDM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
22 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0.1 - 16 bar
installation position:
any position, solenoid preferably standing
Equipment
reducing bush (welded) 26,9 x 2,0 to 21,3 x 2,0 stainless steel 1.4571
Delivery time: 3 - 5 working days
