MV04240001
Solenoid valve G 1/4" Inch brass MV04 NBR 24V DC
- Delivery time
- in stock
Equipment
hose nozzle 1/4" 9.0 mm stainless steel 1.4408 ST01
€2.14 VAT included.
hexagon nipple 1/4" inch male stainless steel 316
€1.90 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Downloads

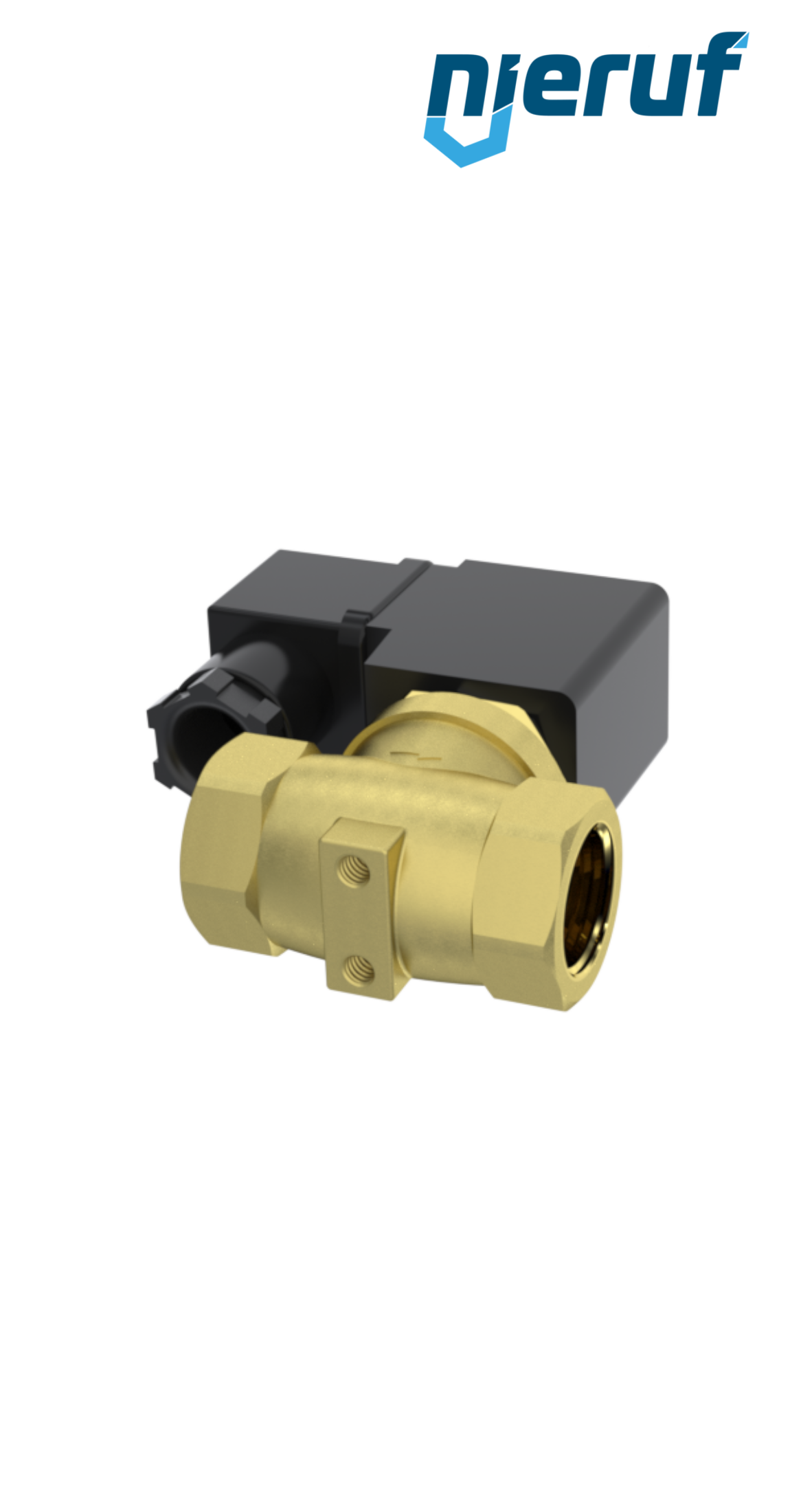

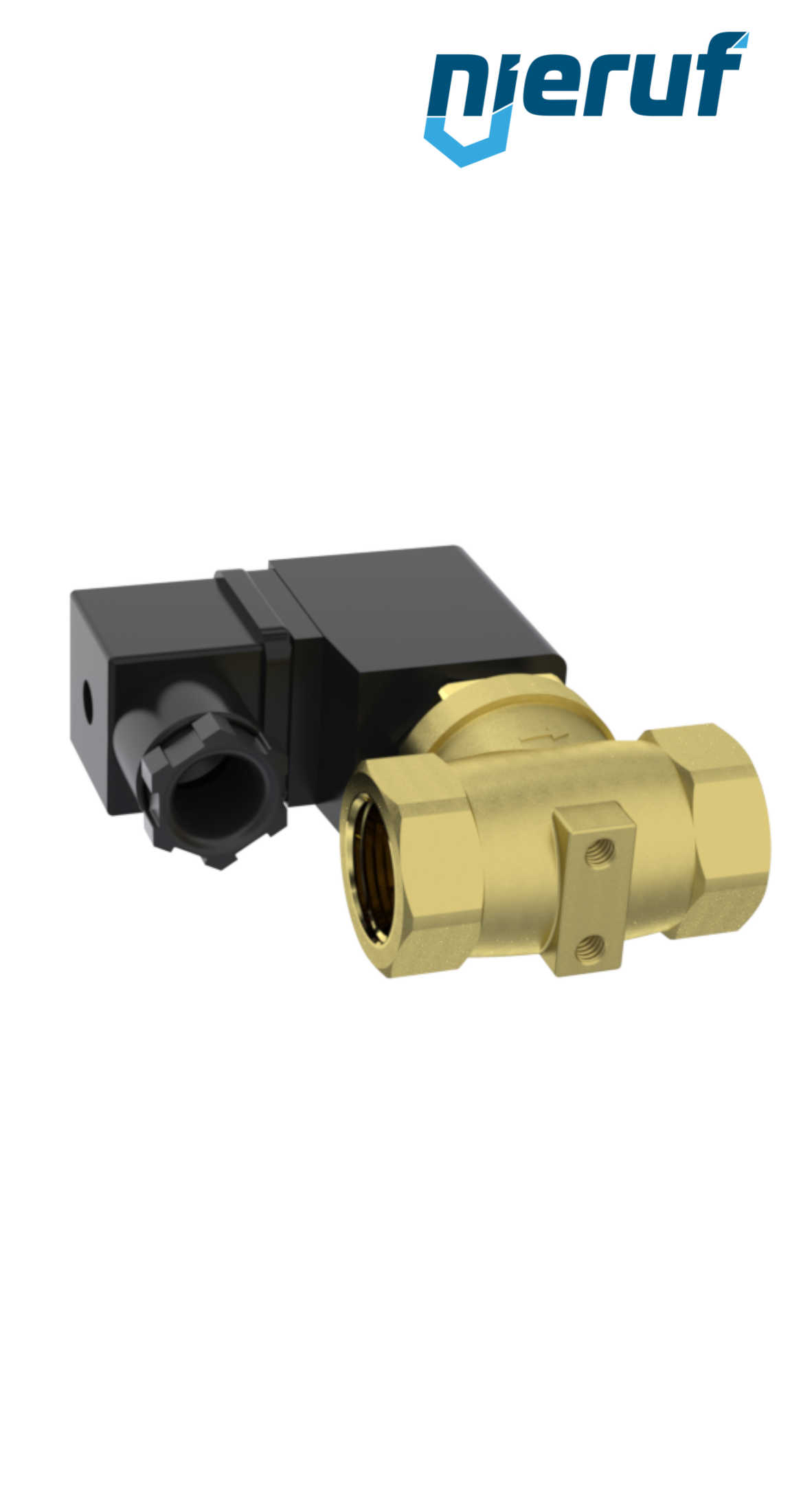

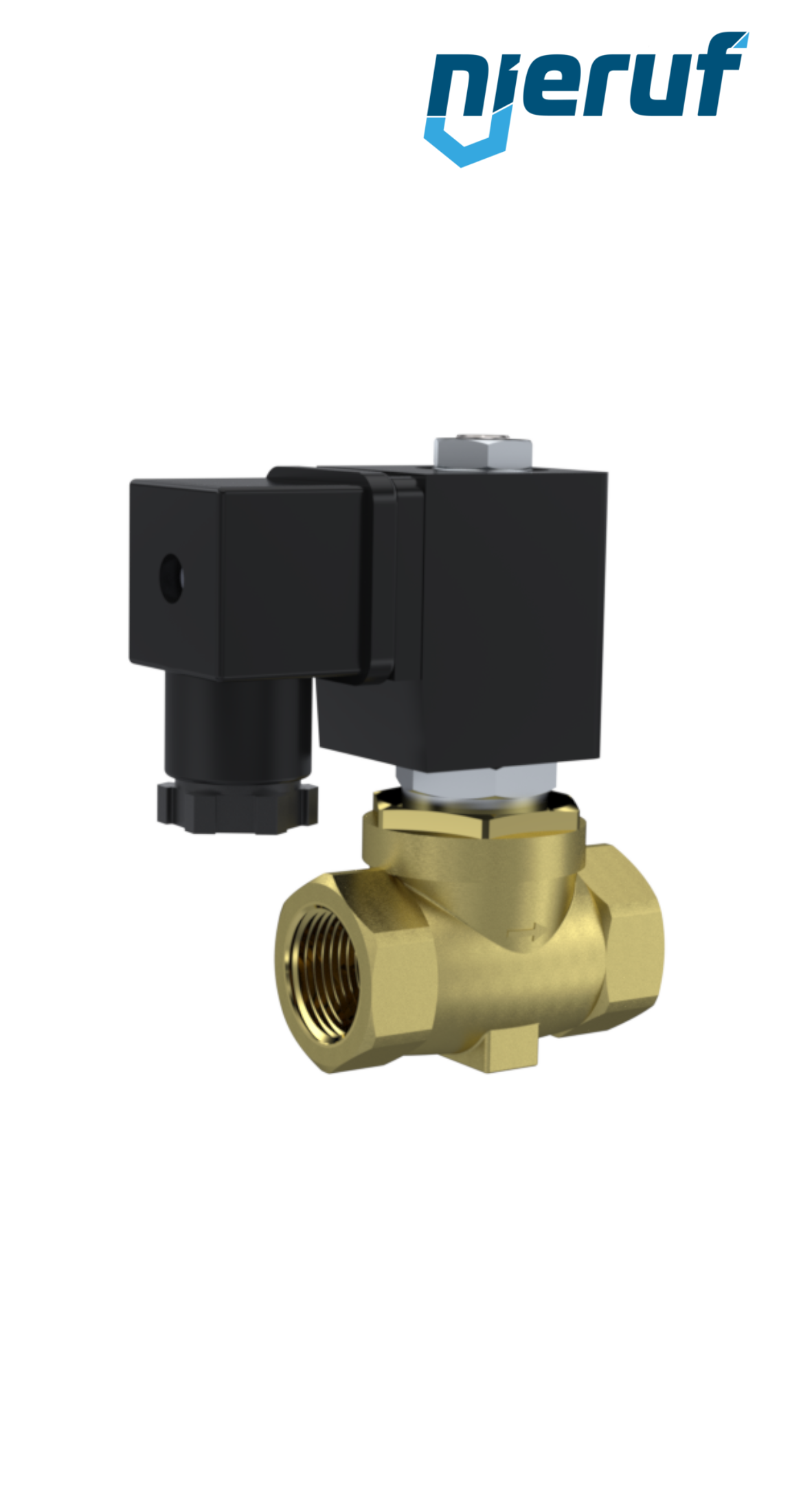

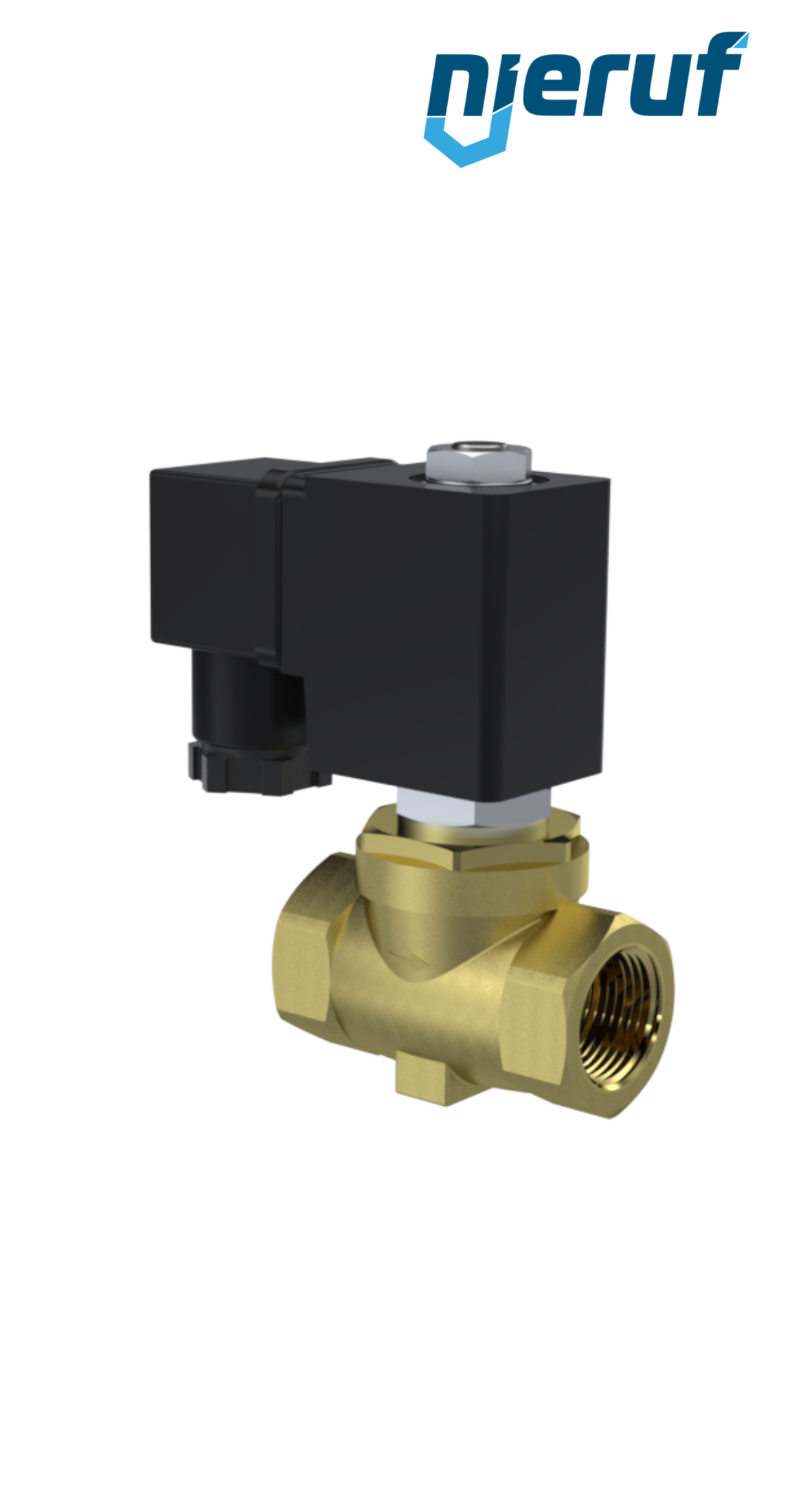

Solenoid valve G 1/4" Inch brass MV04 NBR 24V DC
Solenoid valve G 1/4" Inch DN 8.0 made of brass seal NBR servo controlled nominal voltage 24V DC pressure 0.1 - 10 bar
| product | Solenoid valve |
|---|---|
| type | MV04 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN 8.0 |
| connection | G 1/4" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 1.26 m³/h |
| function | NC - normally closed |
| control | servo controlled |
| material | brass |
| seal | NBR |
| voltage | 24V DC |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 13 Watt |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | liquid and gaseous media |
| temperature media | -10°C up to +80°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0.1 - 10 bar |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve G 1/4" Inch brass MV04 NBR 24V DC
Article no.
: MV04240001
product:
Solenoid valve
type:
MV04
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN 8.0
connection:
G 1/4" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
1.26 m³/h
function:
NC - normally closed
control:
servo controlled
material:
brass
seal:
NBR
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
13 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +80°C
temperature ambiente:
max up to +50°C
max. pressure:
0.1 - 10 bar
installation position:
any position, solenoid preferably standing
