FL06020409
Threaded flange DN65 PN40 EN1092-1 13 B1 C22.8 / P250GH bare
- Delivery time
- in stock
Equipment
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
€4.28 VAT included.
joint set flange/flange DN65 - 2 1/2" Inch for flange PN40 steel
€9.52 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Downloads

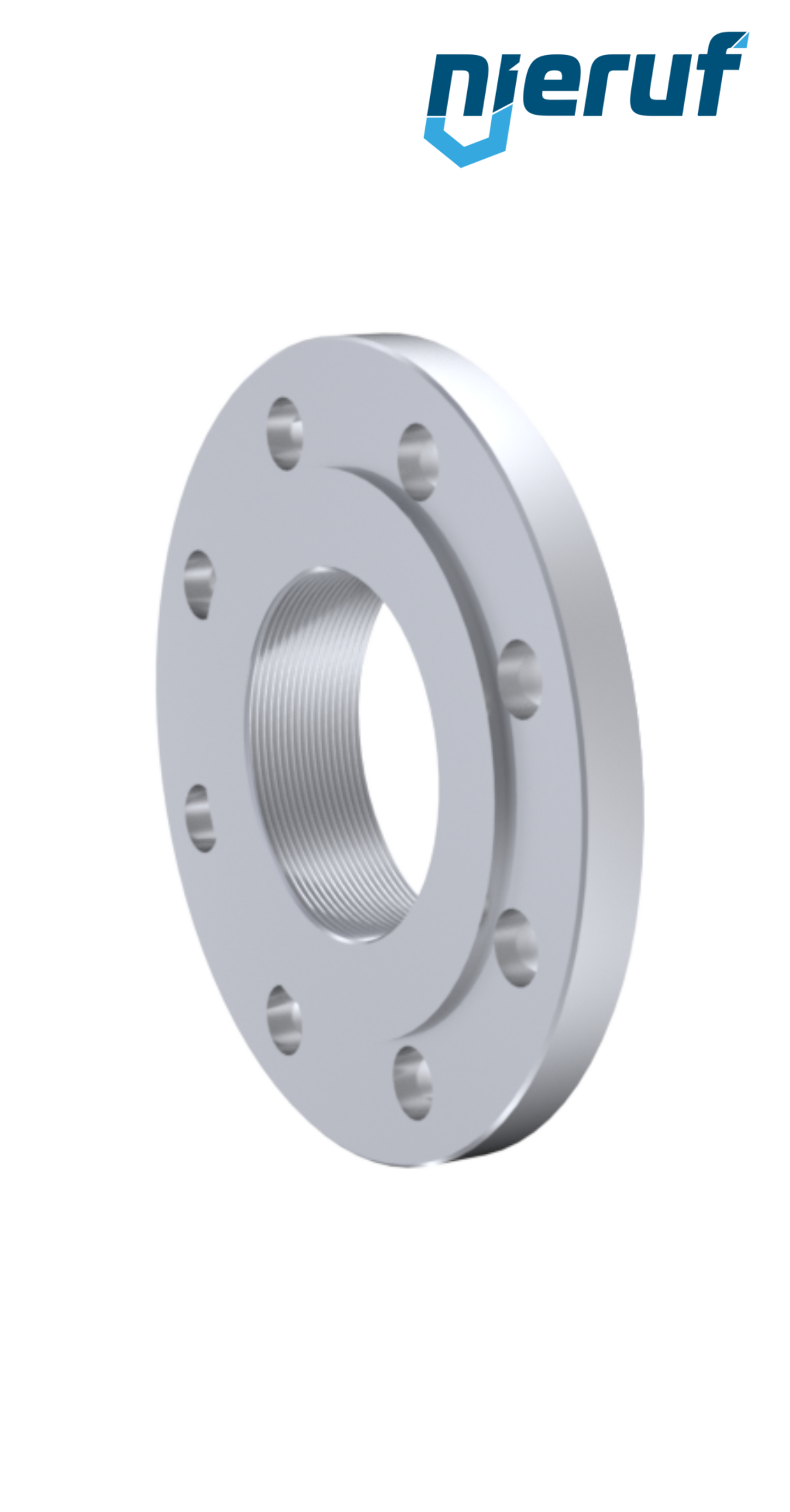

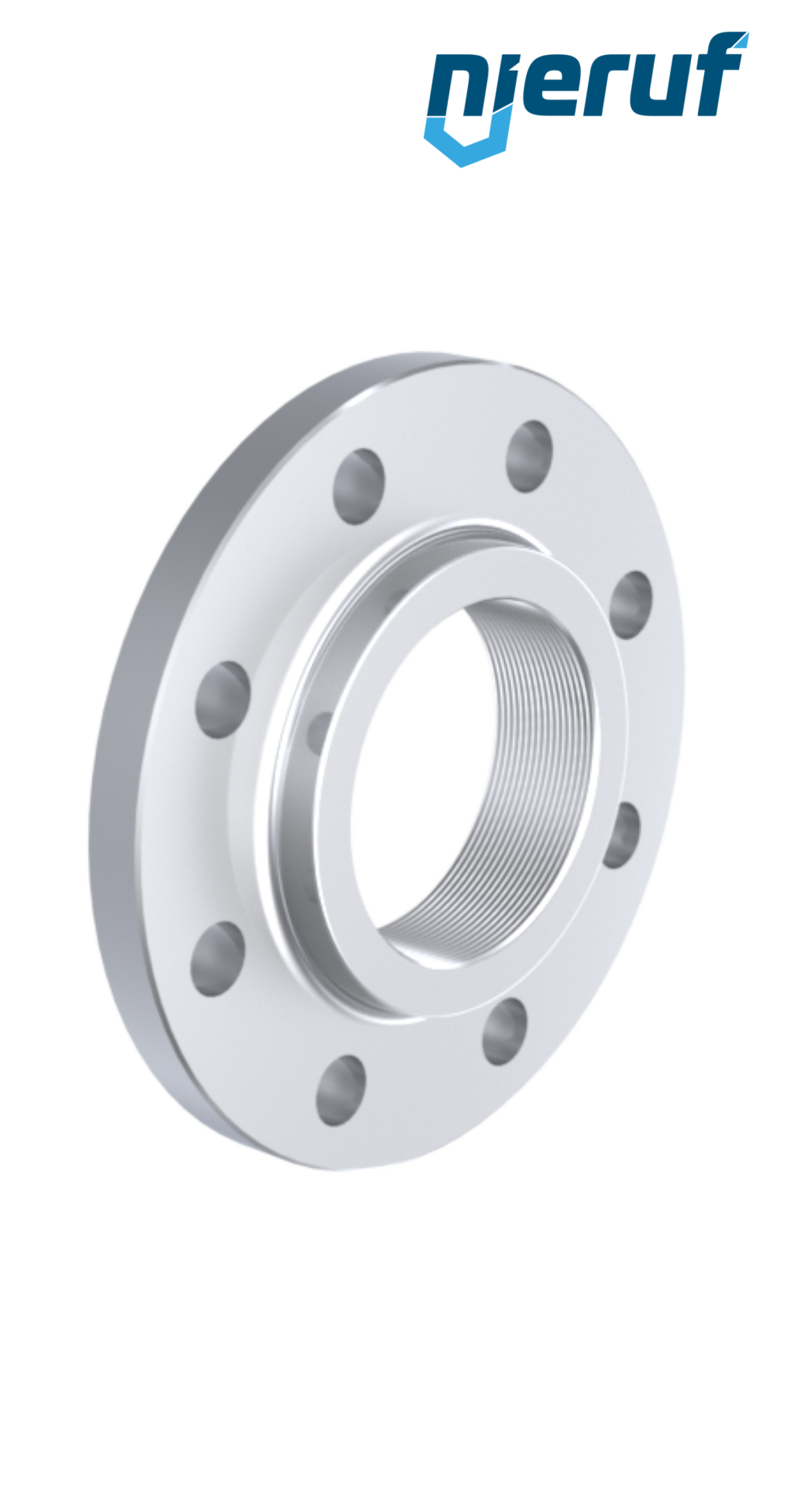

Threaded flange DN65 PN40 EN1092-1 13 B1 C22.8 / P250GH bare
Threaded flange made of steel C22.8 / P250GH bare DN65 flange according DIN PN40 EN1092-1 Typ 13 B1
| product | Threaded flange |
|---|---|
| type | FL06 |
| manufacturer | NieRuf |
| diameter | DN65 |
| connection | PN40 |
| material | steel |
| material nr. | C22.8 / P250GH bare |
| norm | EN1092-1 |
| norm-type | 13 |
| surface | B1 |
| Design | Threaded flange with projection |
| pipe thread | 2 1/2" inch |
| D | 185 |
| C2 | 22 |
| K | 145 |
| H1 | 38 |
| N2 | 104 |
| R1 | 6 |
| d1 | 122 |
| f1 | 3 |
| screw | M16 |
| Qty. Screws | 4 |
| L | 18 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Threaded flange DN65 PN40 EN1092-1 13 B1 C22.8 / P250GH bare
Article no.
: FL06020409
product:
Threaded flange
type:
FL06
manufacturer:
NieRuf
diameter:
DN65
connection:
PN40
material:
steel
material nr.:
C22.8 / P250GH bare
norm:
EN1092-1
norm-type:
13
surface:
B1
Design:
Threaded flange with projection
pipe thread:
2 1/2" inch
D:
185
C2:
22
K:
145
H1:
38
N2:
104
R1:
6
d1:
122
f1:
3
screw:
M16
Qty. Screws:
4
L:
18
