SV03000406
angle-type safety valve 1 1/4" x 2" fm SV03 neutral liquid media, gunmetal NBR
- Delivery time
- 3 - 5 working days
Equipment
hexagon nipple 1 1/4" inch male stainless steel 316
€7.02 VAT included.
hexagon nipple 2" inch male stainless steel 316
€12.14 VAT included.
tee 1 1/4" inch stainless steel 316 90° angle FM
€12.14 VAT included.
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you

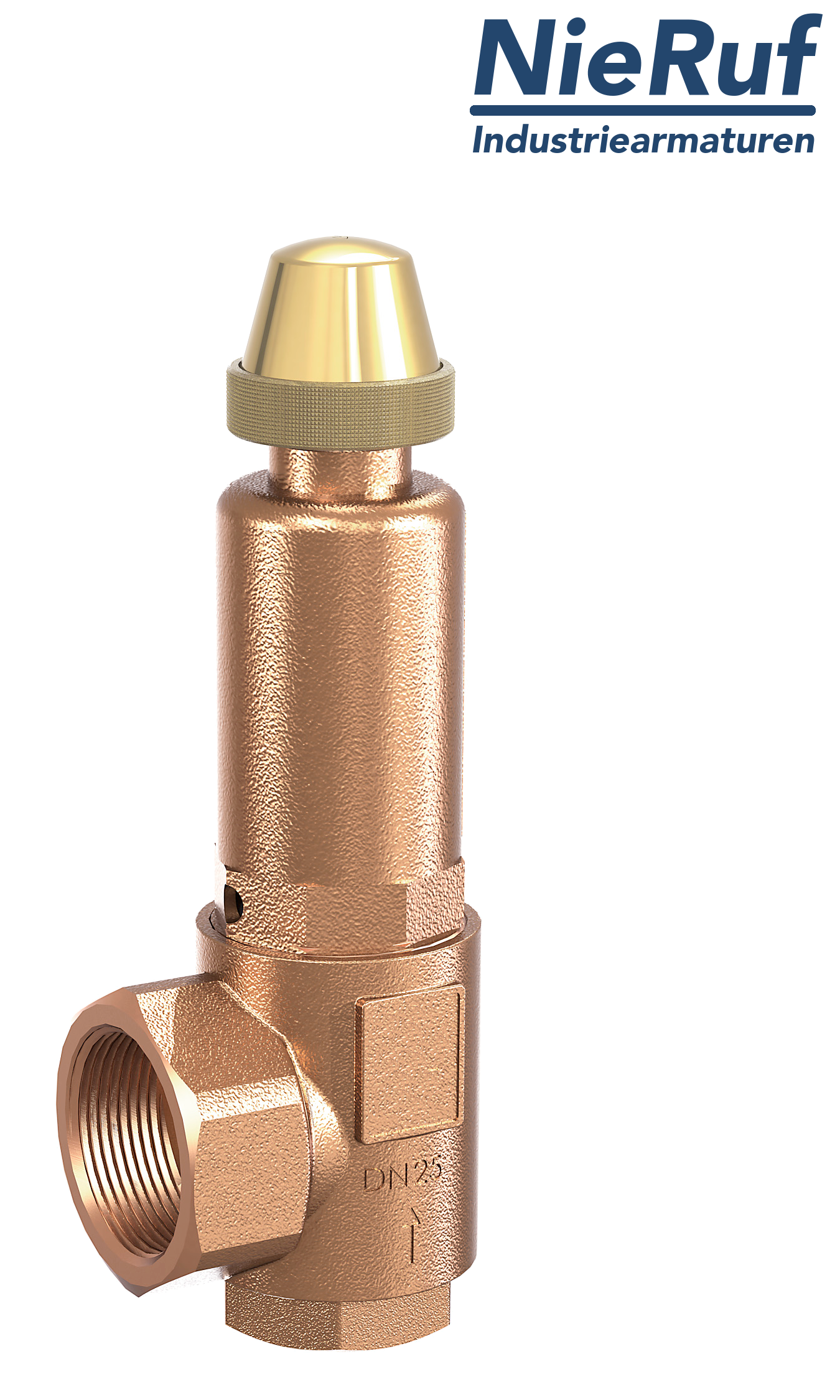

angle-type safety valve 1 1/4" x 2" fm SV03 neutral liquid media, gunmetal NBR
angle-type-safety-valve for liquid and gaseous media female thread 1 1/4" x 2" fm gunmetal NBR Typ SV03 with twist-type lifting mechanism without bellows
| product | angle-type safety valve |
|---|---|
| type | SV03 |
| manufacturer | NieRuf |
| diameter | 1 1/4" x 2" fm |
| d0 | 30,3 mm |
| connection | Female screw threaded BSP-P |
| seal | NBR |
| media | neutral liquid media |
| temperature | -30°C to +130°C |
| set pressure | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design | angle-type |
| material | gunmetal |
| lifting | twist-type lifting mechanism |
| type test approval | TÜV = F 666 / EG = L |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 |
| product feature 1 | without bellows |
| product feature 2 | for neutral media without counter pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
angle-type safety valve 1 1/4" x 2" fm SV03 neutral liquid media, gunmetal NBR
Article no.
: SV03000406
product:
angle-type safety valve
type:
SV03
manufacturer:
NieRuf
diameter:
1 1/4" x 2" fm
d0:
30,3 mm
connection:
Female screw threaded BSP-P
seal:
NBR
media:
neutral liquid media
temperature:
-30°C to +130°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
gunmetal
lifting:
twist-type lifting mechanism
type test approval:
TÜV = F 666 / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3
product feature 1:
without bellows
product feature 2:
for neutral media without counter pressure.
Equipment
reducing bush (welded) 42,4 x 2,0 to 33,7 x 2,0 stainless steel 1.4571
Delivery time: in stock
