GK05000002
Water ball valve DN10 - 3/8" inch GK05
- Delivery time
- in stock
Equipment
hexagon nipple 3/8" inch male stainless steel 316
€2.02 VAT included.
hose nozzle 3/8" 11.0 mm stainless steel 1.4408 ST01
€2.86 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

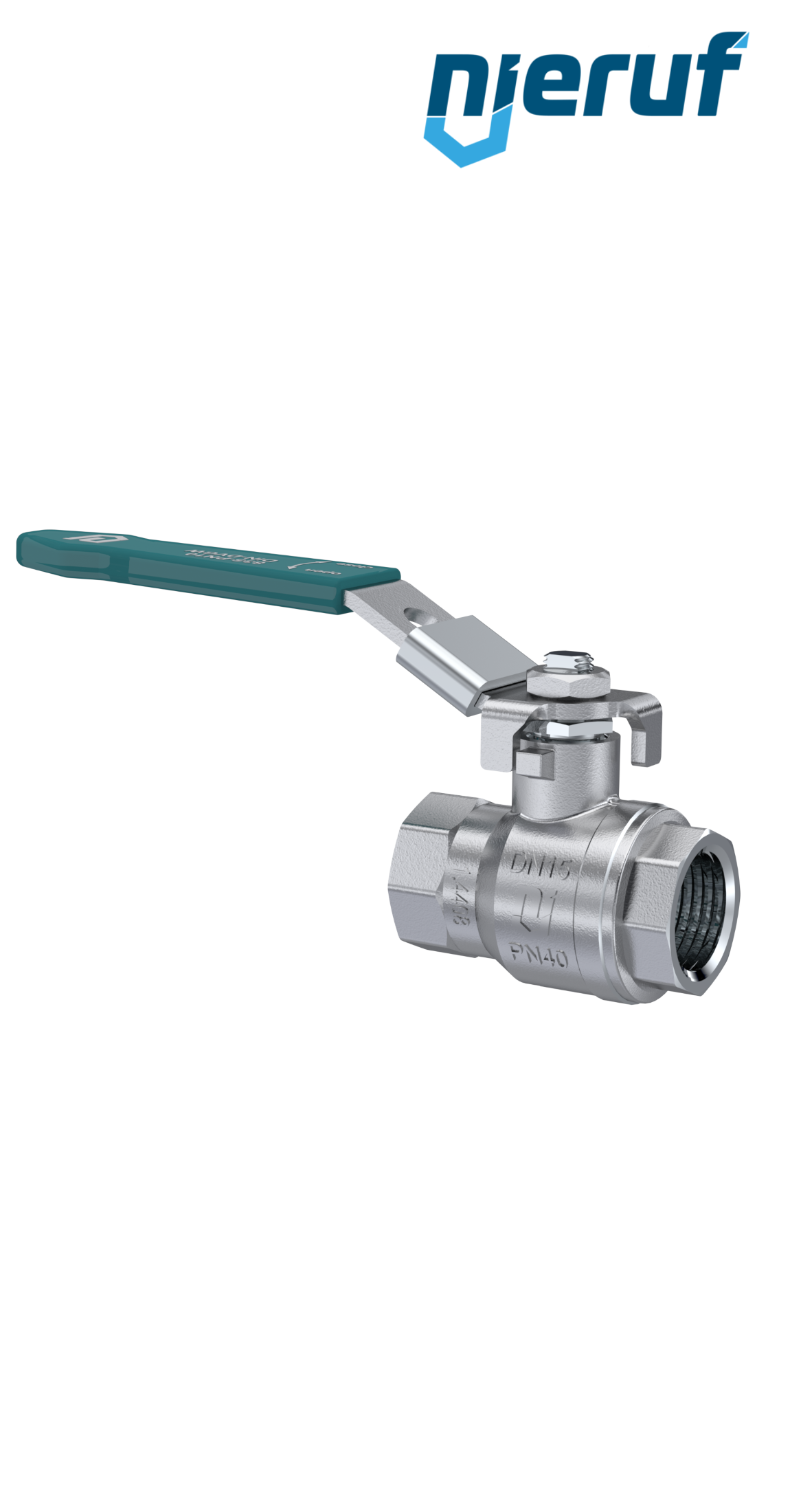

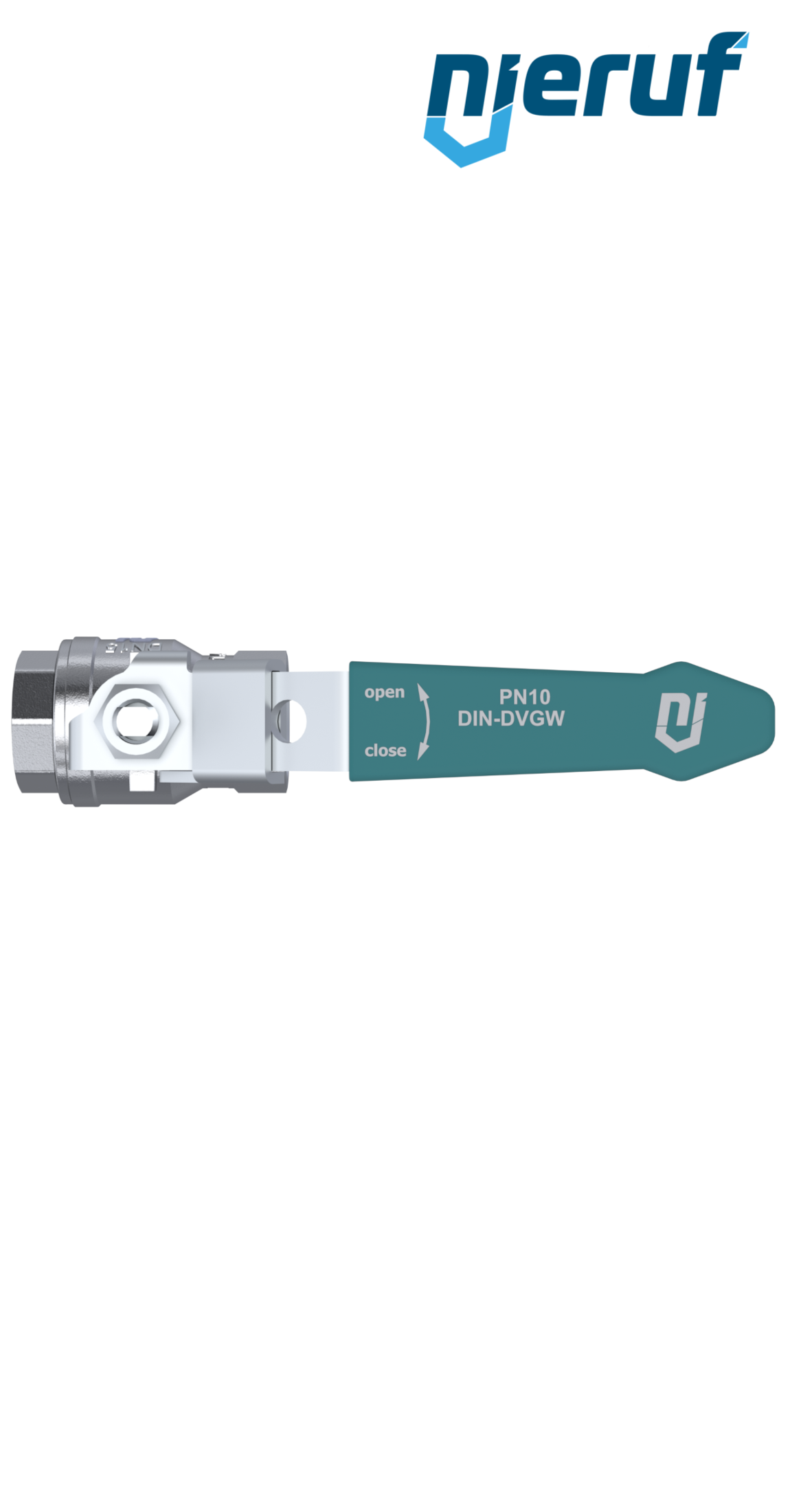

Water ball valve DN10 - 3/8" inch GK05
Water ball valve DN10 - 3/8" inch full port design seal made of PTFE for liquid and gaseous media
| product | Water ball valve |
|---|---|
| type | GK05 |
| manufacturer | NieRuf |
| diameter | DN10 - 3/8" inch |
| connection | female thread |
| Seal steam | PTFE |
| ball seal | PTFE |
| media | liquid and gaseous media, drinking water, DVGW-drinking water |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN40 |
| design | full port design |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4408 |
| length | 40mm |
| actuator | lever handle made of stainless steel with green plastic cover |
| installation position | any position |
| authorized for | DVGW-water |
| product description | This high quality ball valve is made of stainless steel. This two-piece ball valve "screwed design" is drinking water registrated acc. to DIN EN 13828 and DVGW W 570 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Water ball valve DN10 - 3/8" inch GK05
Article no.
: GK05000002
product:
Water ball valve
type:
GK05
manufacturer:
NieRuf
diameter:
DN10 - 3/8" inch
connection:
female thread
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media, drinking water, DVGW-drinking water
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN40
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
length:
40mm
actuator:
lever handle made of stainless steel with green plastic cover
installation position:
any position
authorized for:
DVGW-water
product description:
This high quality ball valve is made of stainless steel. This two-piece ball valve "screwed design" is drinking water registrated acc. to DIN EN 13828 and DVGW W 570
