GK17010009

three-pieces stainless steel ball valve DN65 - 2 1/2" inch butt welding

€280.70*

€334.03 VAT included.

*Prices excl. VAT plus shipping costs

Delivery time: 3 - 5 working days

Equipment

GF01700009

welding nipple DN65 - 2 1/2" inch male stainless steel 316 L

€14.10*

€16.78 VAT included.

Resistance check

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE

Certified

Downloads

3D model

Datasheet

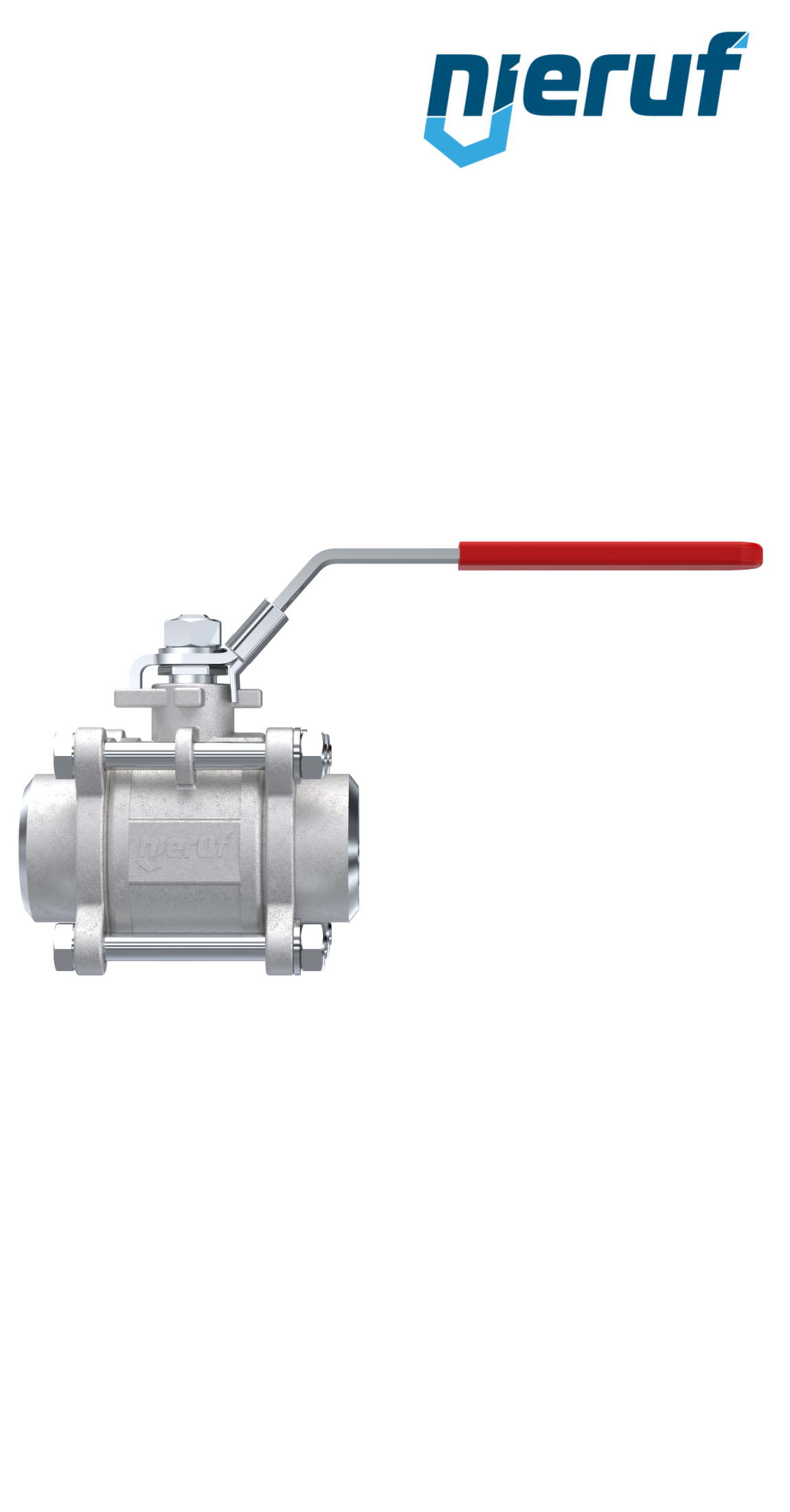

three-pieces stainless steel ball valve DN65 - 2 1/2" inch butt welding

three-pieces 2-way ball valve made of stainless steel 1.4408 DN65 - 2 1/2" inch butt welding for liquid and gaseous media

product	3 pieces ball valve
type	GK17
manufacturer	NieRuf
diameter	DN65 - 2 1/2" inch
connection	butt welding
Seal steam	PTFE
ball seal	PTFE
media	liquid and gaseous media
temperature	- 20°C up to 180°C - depending on working pressure and media
max. pressure	25 bar
design	full port design
body material	stainless steel 1.4408
ball material	stainless steel 1.4401
length	162mm
actuator	hand lever with red plastic cover
installation position	any position
product description	This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

three-pieces stainless steel ball valve DN65 - 2 1/2" inch butt welding

Article no. : GK17010009
product: 3 pieces ball valve
type: GK17
manufacturer: NieRuf
diameter: DN65 - 2 1/2" inch
connection: butt welding
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: - 20°C up to 180°C - depending on working pressure and media
max. pressure: 25 bar
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
length: 162mm
actuator: hand lever with red plastic cover
installation position: any position
product description: This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems.
