FK02000008
Flange ball valve DN50 FK02 GGG40 ball (solid) stainless steel 1.4408
- Delivery time
- 3 - 5 working days
Equipment
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 steel
€8.09 VAT included.
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
€3.57 VAT included.
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€22.37 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

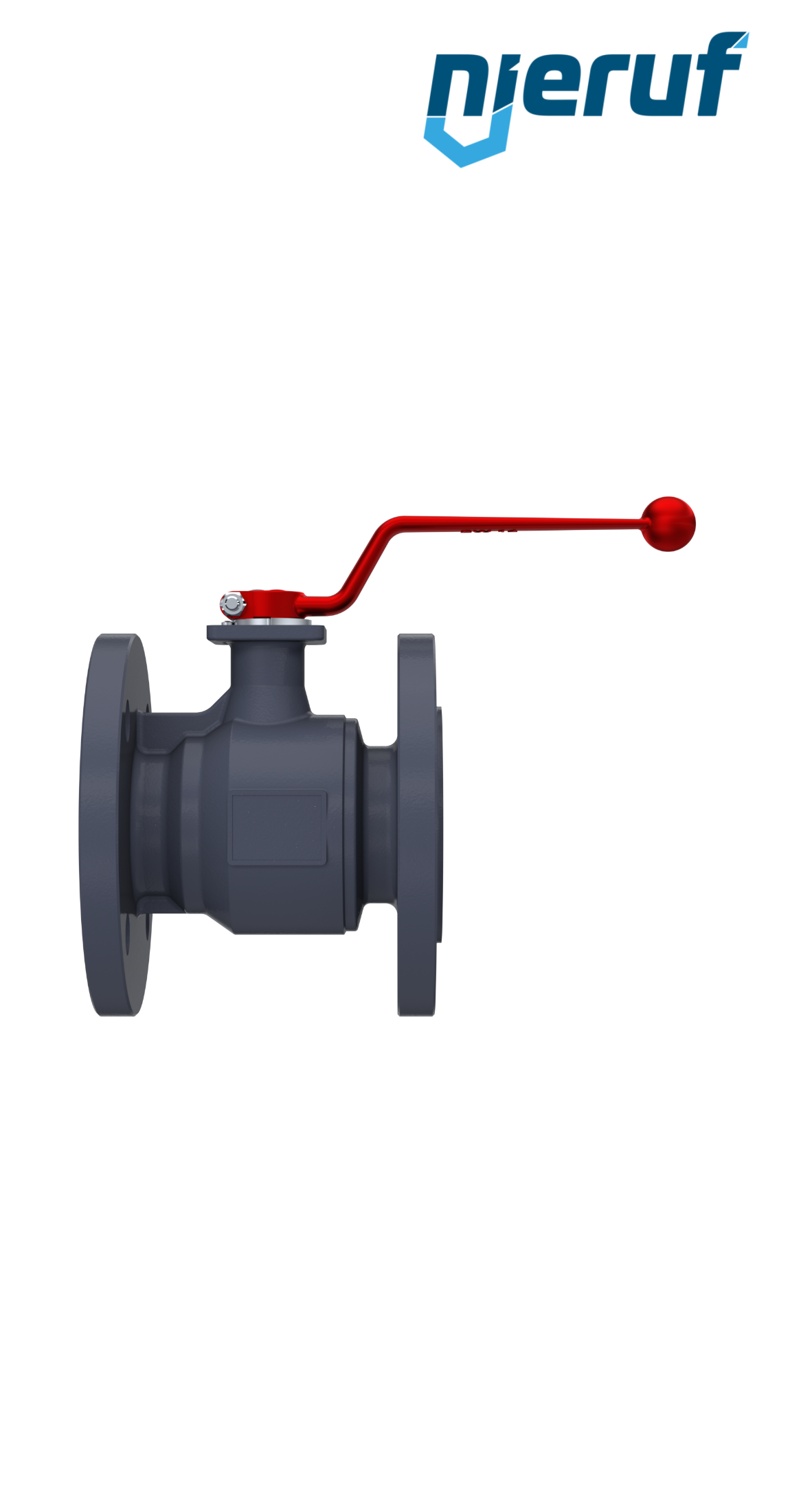

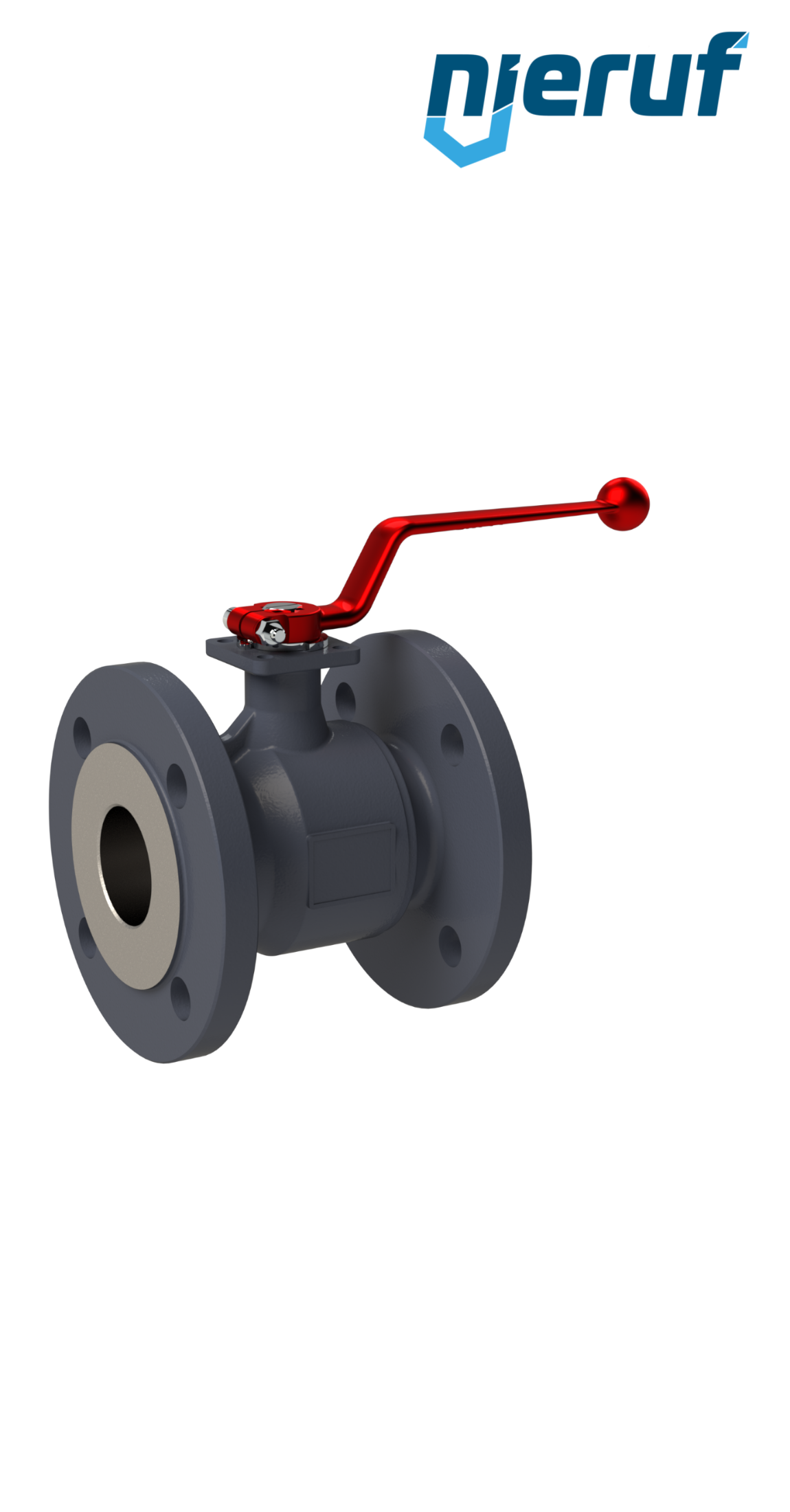

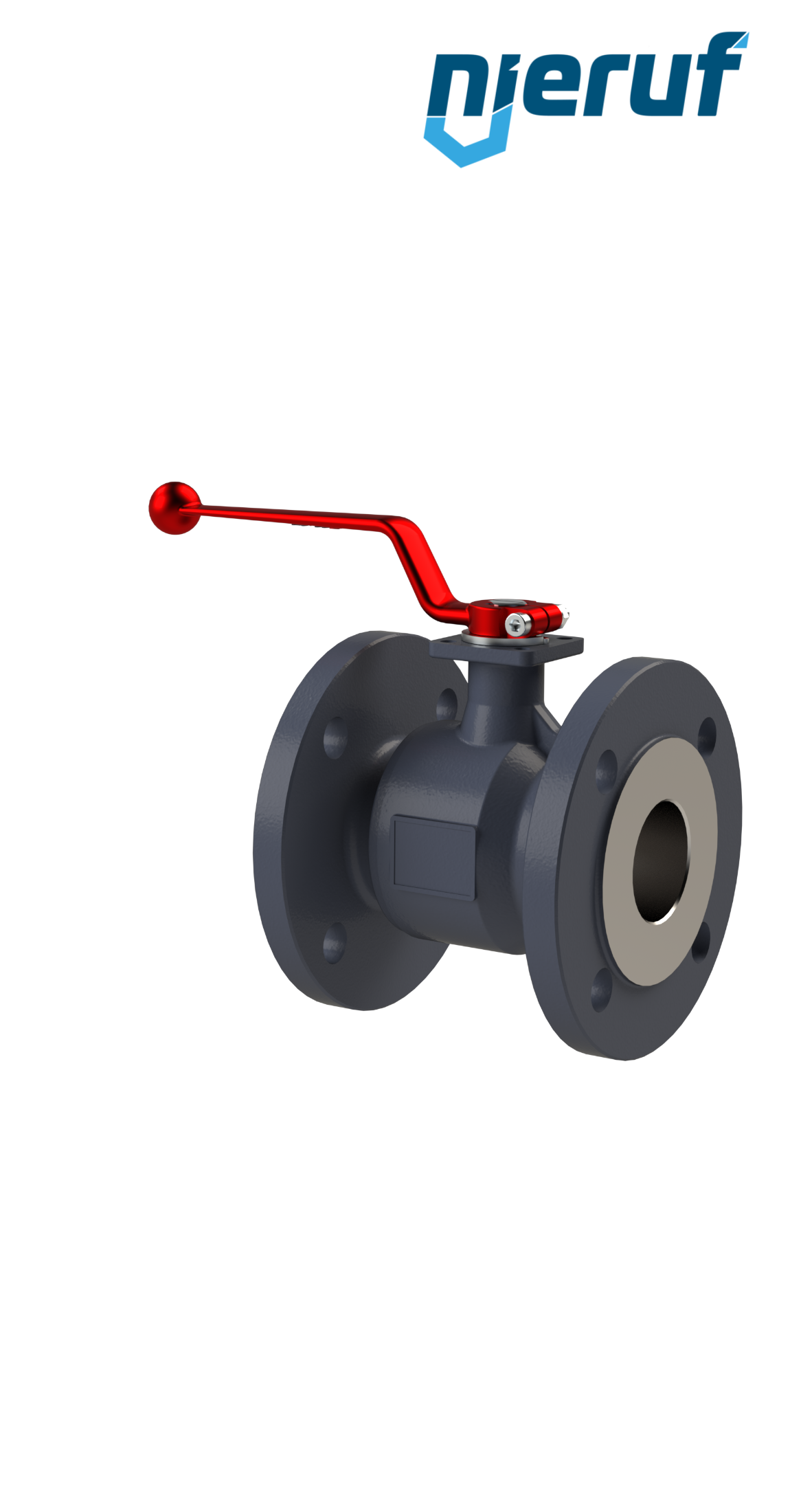

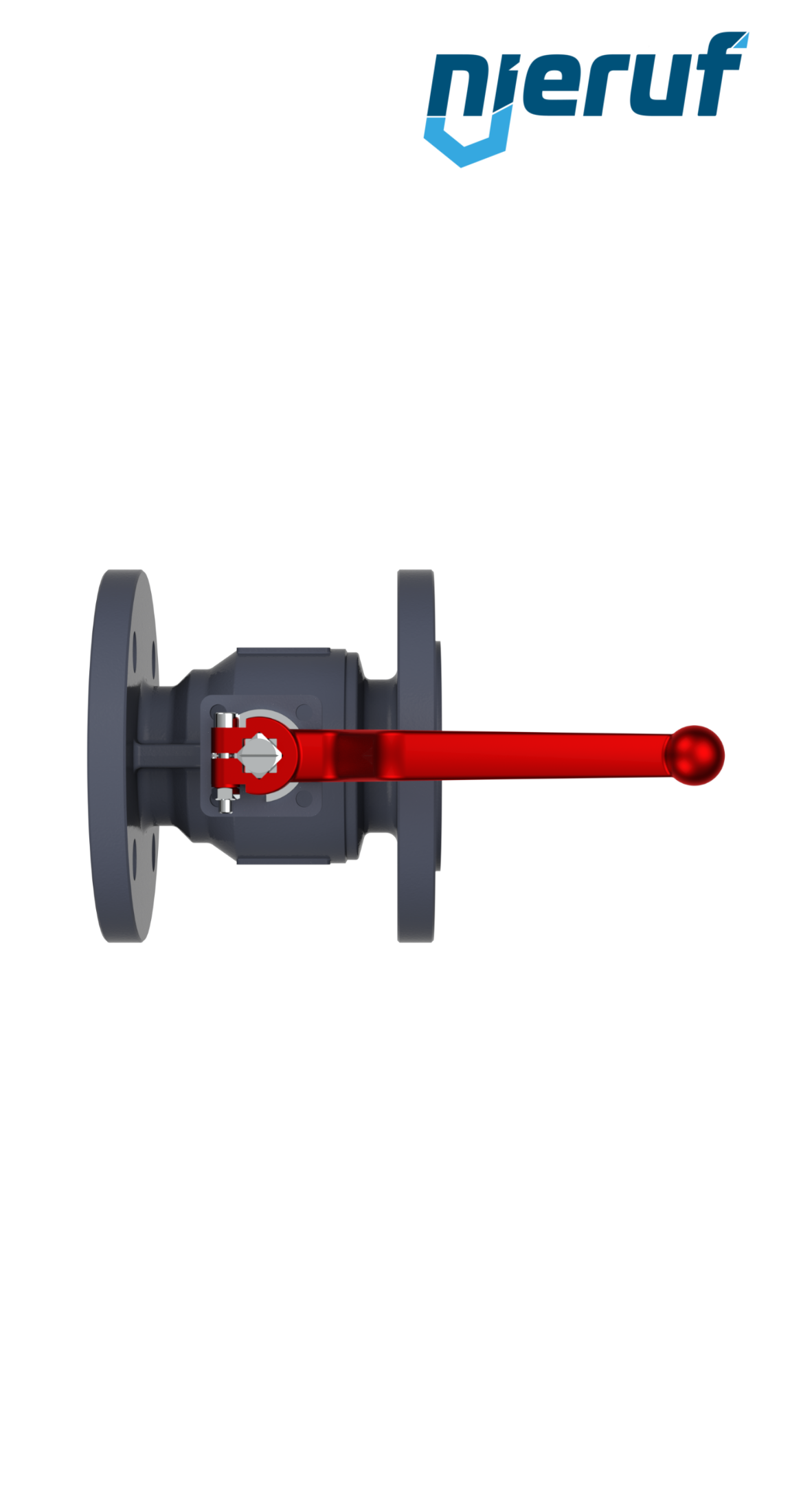

Flange ball valve DN50 FK02 GGG40 ball (solid) stainless steel 1.4408
Flange ball valve DN50 FK02 body spheroidal graphite cast iron GJS 400-18 ball (solid) stainless steel 1.4408 seal PTFE / GF for liquid and gaseous media
| product | Flange ball valve |
|---|---|
| type | FK02 |
| manufacturer | NieRuf |
| diameter | DN50 |
| connection | flange dimensions acc. DIN EN 1092-2 PN 16 |
| Seal steam | O-rings FKM |
| ball seal | PTFE / GF |
| media | liquid and gaseous media |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | full port design with stainless steel ball |
| body material | spheroidal graphite cast iron GJS 400-18 |
| ball material | (solid) stainless steel 1.4408 |
| length | DIN EN 558-1 R14 |
| actuator | hand lever made of alu in red |
| installation position | any position |
| product description | This high quality ball valve is made of spheroidal graphite cast iron with two-piece body and fire-safe-design. Full port design with stainless steel ball. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange ball valve DN50 FK02 GGG40 ball (solid) stainless steel 1.4408
Article no.
: FK02000008
product:
Flange ball valve
type:
FK02
manufacturer:
NieRuf
diameter:
DN50
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
O-rings FKM
ball seal:
PTFE / GF
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design with stainless steel ball
body material:
spheroidal graphite cast iron GJS 400-18
ball material:
(solid) stainless steel 1.4408
length:
DIN EN 558-1 R14
actuator:
hand lever made of alu in red
installation position:
any position
product description:
This high quality ball valve is made of spheroidal graphite cast iron with two-piece body and fire-safe-design. Full port design with stainless steel ball.
Equipment
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 steel
Delivery time: in stock
