FS02010111

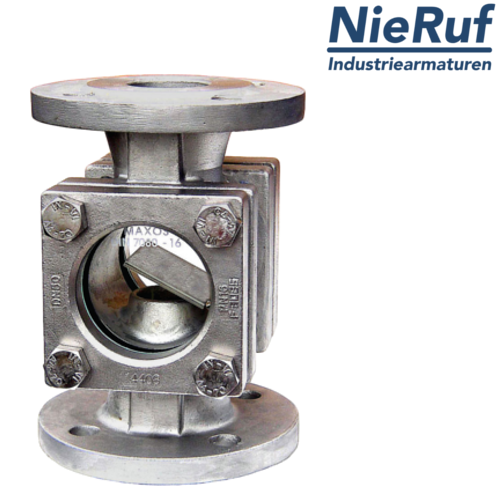

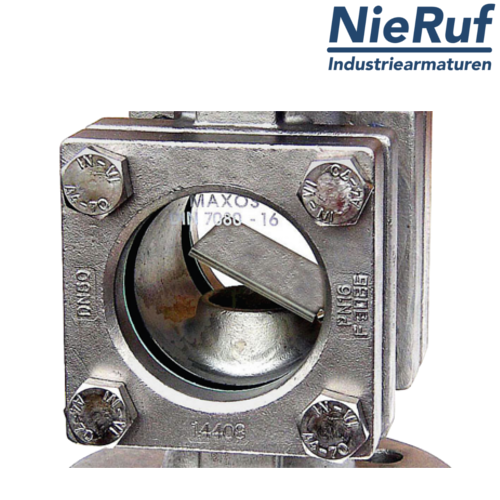

flange sight flow indicator DN100 - 4" Inch GS - C25 soda lime glass design with disc
- Delivery time
- 2 - 3 weeks
Equipment
Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€40.70 VAT included.
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
€5.36 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
€16.18 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Downloads
flange sight flow indicator DN100 - 4" Inch GS - C25 soda lime glass design with disc
flange sight flow indicator DN100 - 4" Inch GS - C25 Typ FS02 soda lime glass graphit max 16 bar design with disc
| product | flange sight flow indicator |
|---|---|
| type | FS02 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN100 - 4" Inch |
| connection | flange PN16 |
| body material | GS - C25 |
| cover material | GS - C25 |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | min -10°C up to max + 150°C |
| max. working pressure | max 16 bar |
| requirements | DIN 3237 |
| installation position | horizontal or vertical with direction of flow from the bottom up |
| product feature | design with disc |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN100 - 4" Inch GS - C25 soda lime glass design with disc
Article no.
: FS02010111
product:
flange sight flow indicator
type:
FS02
manufacturer:
NieRuf
design:
straightway form
diameter:
DN100 - 4" Inch
connection:
flange PN16
body material:
GS - C25
cover material:
GS - C25
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
min -10°C up to max + 150°C
max. working pressure:
max 16 bar
requirements:
DIN 3237
installation position:
horizontal or vertical with direction of flow from the bottom up
product feature:
design with disc
Equipment
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
Delivery time: in stock
pipe bend (welded) 90° 114,3 x 2,0 stainless steel 1.4571
Delivery time: 3 - 5 working days
reducing bush (welded) 139,7 x 2,9 to 60,3 x 2,0 stainless steel 1.4571
Delivery time: 3 - 5 working days
