FS03010113

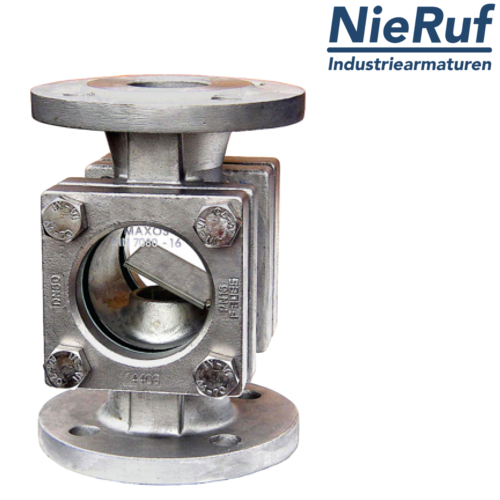

flange sight flow indicator DN150 - 6" Inch stainless steel soda lime glass design with disc
- Delivery time
- 2 - 3 weeks
Equipment
flange seal DN150 PN10/16 169x218x2 Klingersil C 4400
€8.45 VAT included.
Welding neck flange DN150 PN10/16 EN1092-1 11 B1 1.4541
€144.59 VAT included.
joint set flange/flange DN150 - 6" Inch for flange PN10/16/25 stainless steel
€34.27 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Downloads
flange sight flow indicator DN150 - 6" Inch stainless steel soda lime glass design with disc
flange sight flow indicator DN150 stainless steel disc Typ FS03 soda lime glass max 10 bar design with disc
| product | flange sight flow indicator |
|---|---|
| type | FS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN150 - 6" Inch |
| connection | flange PN16 |
| body material | stainless steel |
| cover material | stainless steel |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | min -60°C up to max + 150°C |
| max. working pressure | max 10 bar |
| requirements | DIN 3237 |
| installation position | horizontal or vertical with direction of flow from the bottom up |
| product feature | design with disc |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN150 - 6" Inch stainless steel soda lime glass design with disc
Article no.
: FS03010113
product:
flange sight flow indicator
type:
FS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN150 - 6" Inch
connection:
flange PN16
body material:
stainless steel
cover material:
stainless steel
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
min -60°C up to max + 150°C
max. working pressure:
max 10 bar
requirements:
DIN 3237
installation position:
horizontal or vertical with direction of flow from the bottom up
product feature:
design with disc
