FS03010209

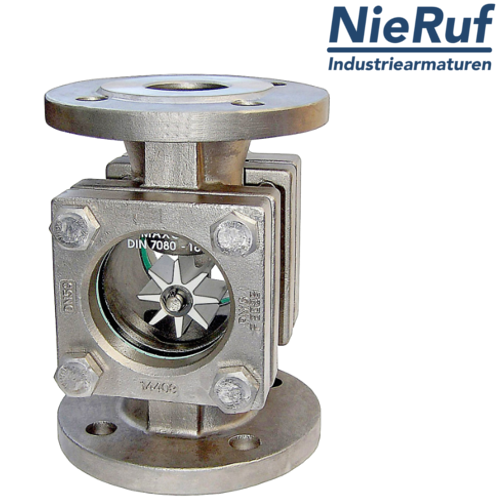

flange sight flow indicator DN65 - 2 1/2" Inch stainless steel soda lime glass design with PTFE-spinner
- Delivery time
- 2 - 3 weeks
Equipment
Welding neck flange DN65 PN10/16 EN1092-1 11 B1 1.4541
€62.71 VAT included.
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
€4.28 VAT included.
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 stainless steel
€10.00 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Downloads
flange sight flow indicator DN65 - 2 1/2" Inch stainless steel soda lime glass design with PTFE-spinner
flange sight flow indicator DN65 stainless steel soda lime glass Typ FS03 max 16 bar design with PTFE-spinner
| product | flange sight flow indicator |
|---|---|
| type | FS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN65 - 2 1/2" Inch |
| connection | flange PN16 |
| body material | stainless steel |
| cover material | stainless steel |
| glass | soda lime glass |
| seal | graphit |
| media | liquid media |
| temperature | min -60°C up to max + 150°C |
| max. working pressure | max 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
| product feature | design with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN65 - 2 1/2" Inch stainless steel soda lime glass design with PTFE-spinner
Article no.
: FS03010209
product:
flange sight flow indicator
type:
FS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN65 - 2 1/2" Inch
connection:
flange PN16
body material:
stainless steel
cover material:
stainless steel
glass:
soda lime glass
seal:
graphit
media:
liquid media
temperature:
min -60°C up to max + 150°C
max. working pressure:
max 16 bar
requirements:
DIN 3237
installation position:
any position
product feature:
design with PTFE-spinner
