SZ07000003

flange-strainer DN15 PN10/16 cast iron for steam

€60.10*

€71.52 VAT included.

*Prices excl. VAT plus shipping costs

Delivery time: 3 - 5 working days

Equipment

VS01010103

joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 steel

€3.20*

€3.81 VAT included.

FL01020103

Flange DN15 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare

€9.40*

€11.19 VAT included.

FD01000103

flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400

€1.60*

€1.90 VAT included.

Resistance check

×

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE

Certified

Downloads

3D model

Datasheet

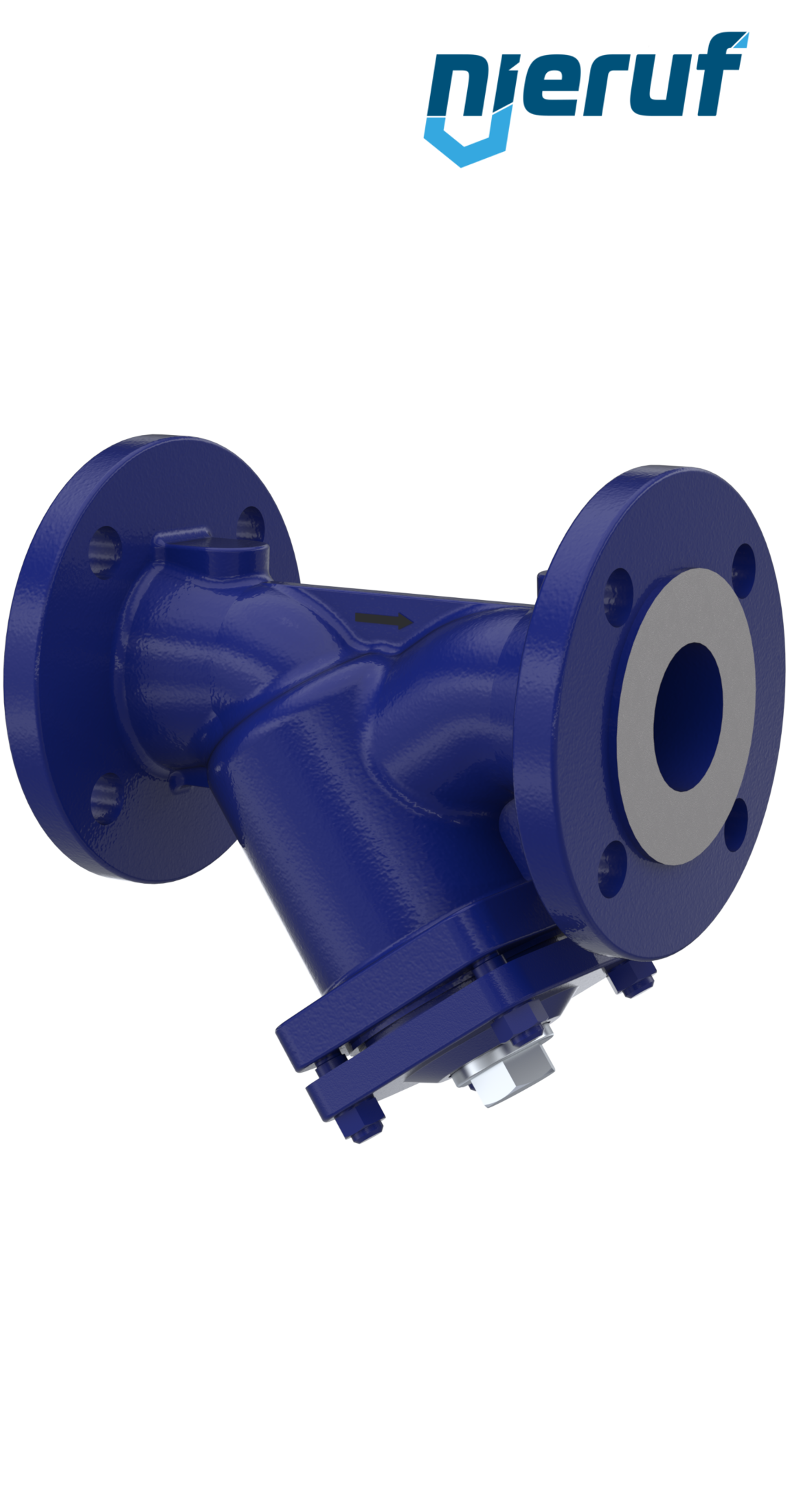

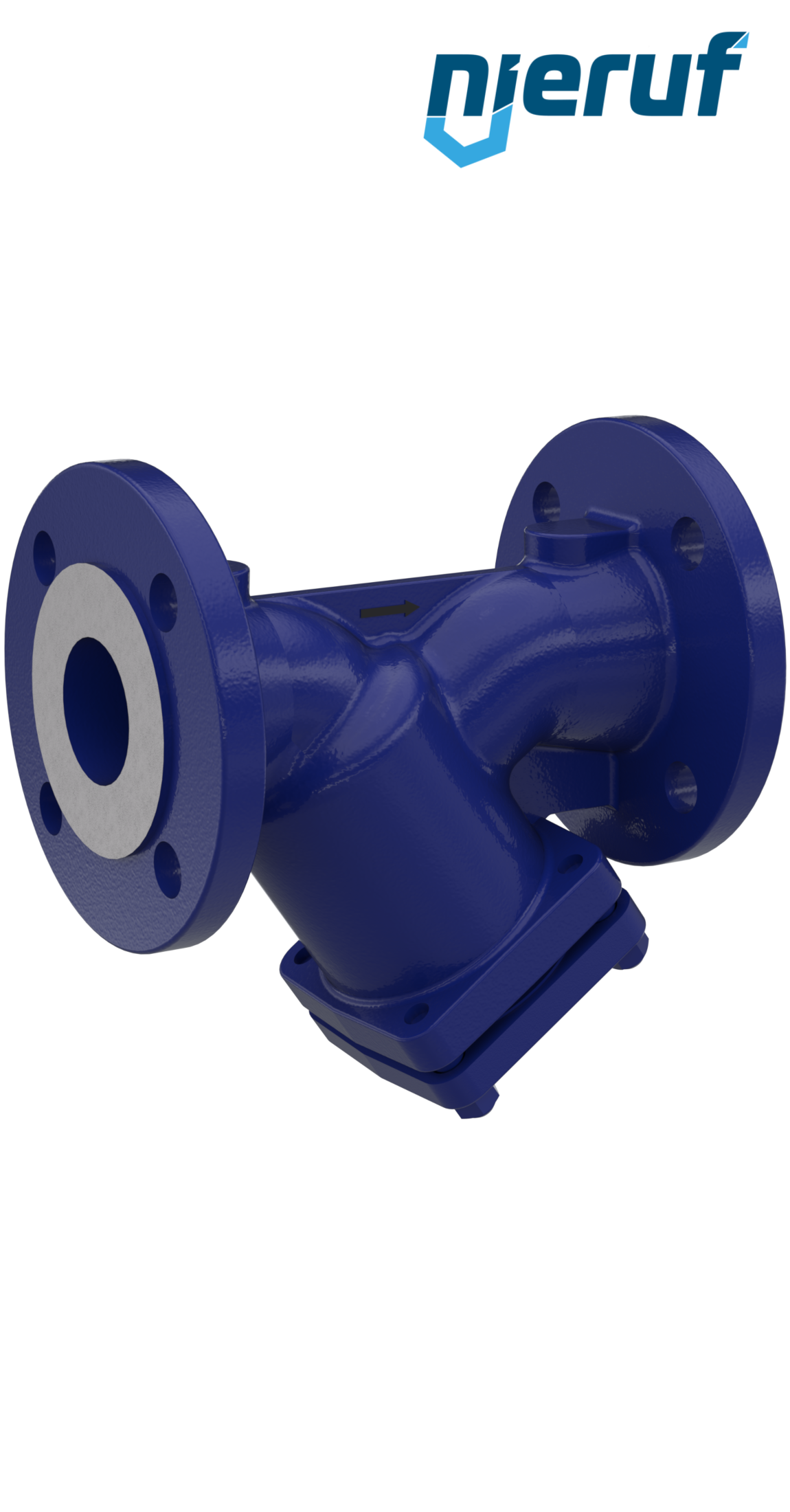

flange-strainer DN15 PN10/16 cast iron for steam

strainer DN15 made of cast iron (blue painting) for steam flange PN10/16 temperature up to +300°C 1 mm mesh

product	steam strainer
type	SZ07
manufacturer	NieRuf
design	Y-strainer with draining cap
diameter	DN15
connection	flange acc. DIN EN 1029-2
pressure	PN16
material	cast iron GG25 blue painting
mesh-material	stainless steel 1.4301
cap material	C35E
seal	graphite
media	liquid and gaseous media, steam
temperature	-10°C up to +300°C
norm	Directive 97/23/CE: CE No 0062 Risk Category III Module H
mesh	1,0 mm
installation position	horizontal or vertical position with descendant fluid
product feature	Y-strainer flange for steam made of cast iron with draining cap and removable stainless steel filter, horizontal or vertical position.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

flange-strainer DN15 PN10/16 cast iron for steam

Article no. : SZ07000003
product: steam strainer
type: SZ07
manufacturer: NieRuf
design: Y-strainer with draining cap
diameter: DN15
connection: flange acc. DIN EN 1029-2
pressure: PN16
material: cast iron GG25 blue painting
mesh-material: stainless steel 1.4301
cap material: C35E
seal: graphite
media: liquid and gaseous media, steam
temperature: -10°C up to +300°C
norm: Directive 97/23/CE: CE No 0062 Risk Category III Module H
mesh: 1,0 mm
installation position: horizontal or vertical position with descendant fluid
product feature: Y-strainer flange for steam made of cast iron with draining cap and removable stainless steel filter, horizontal or vertical position.
