DM14020005

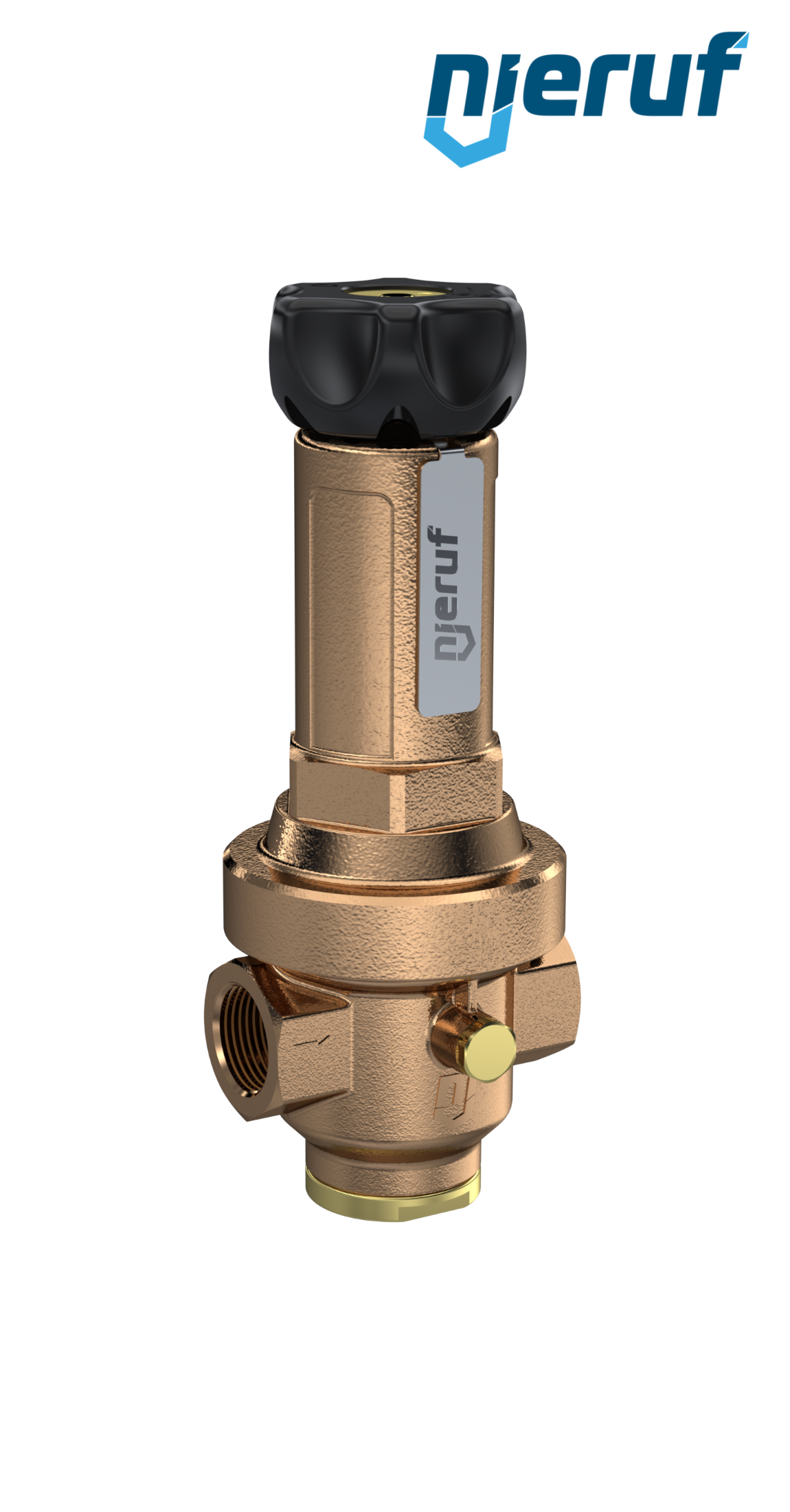

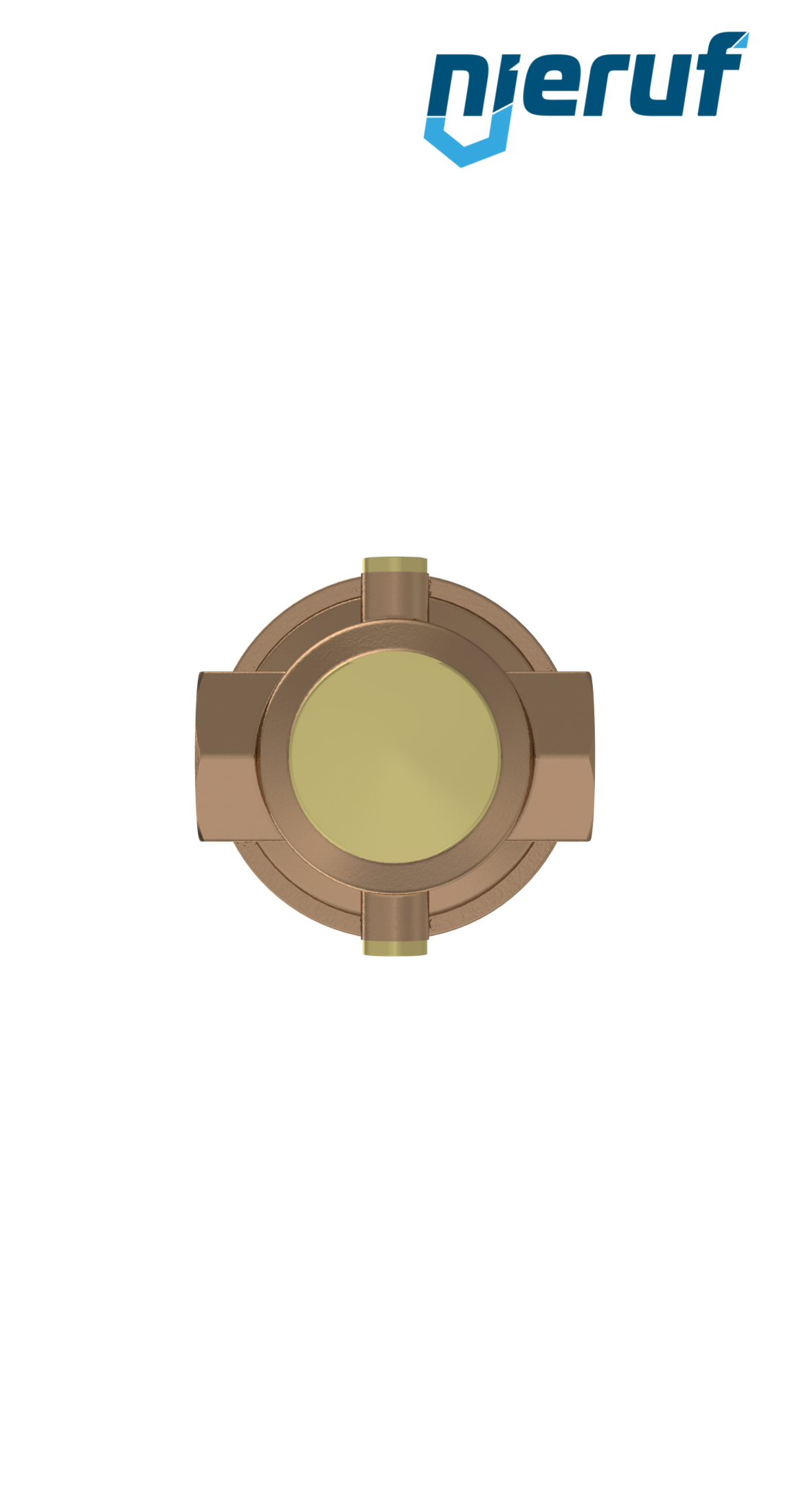

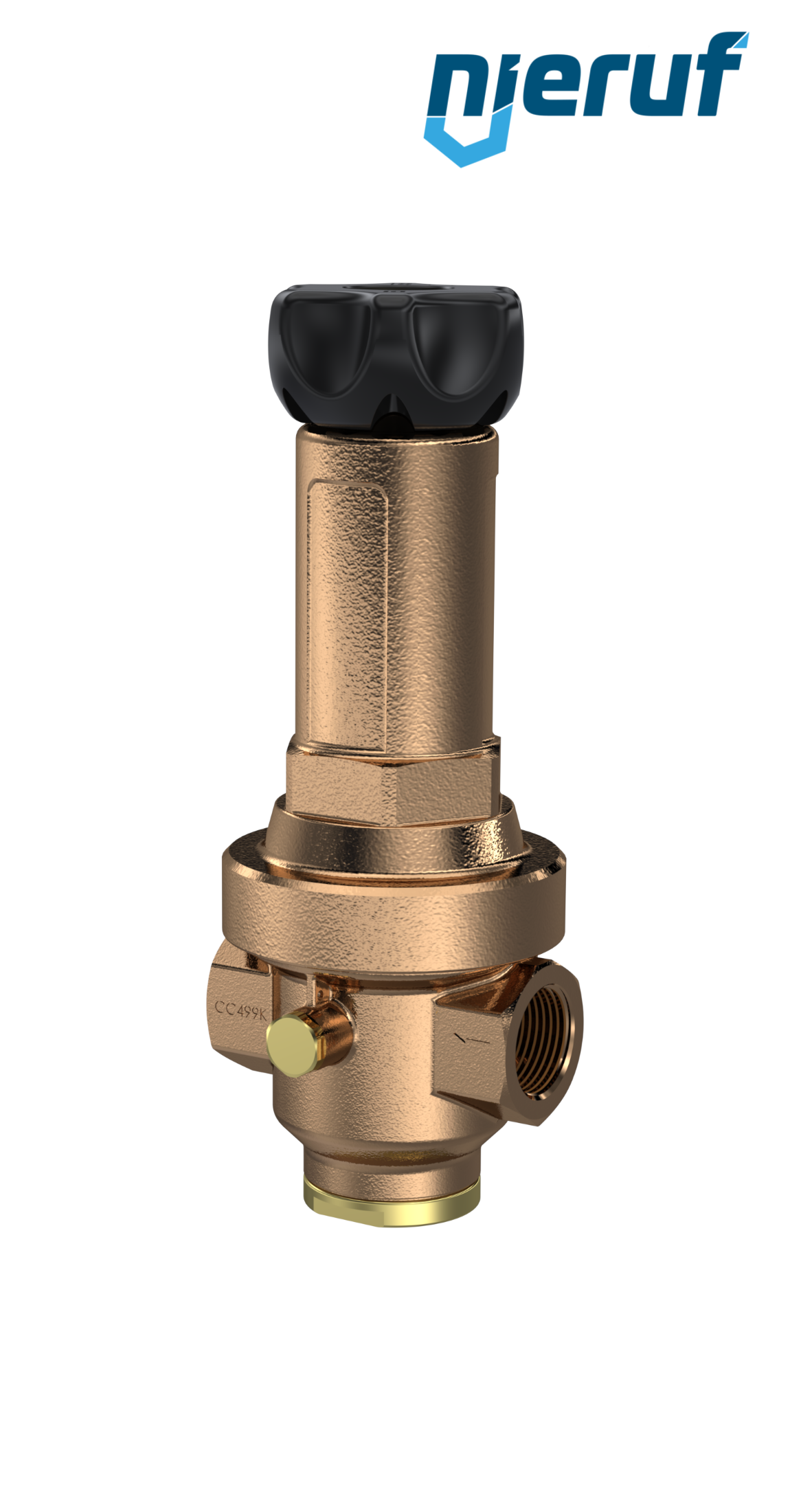

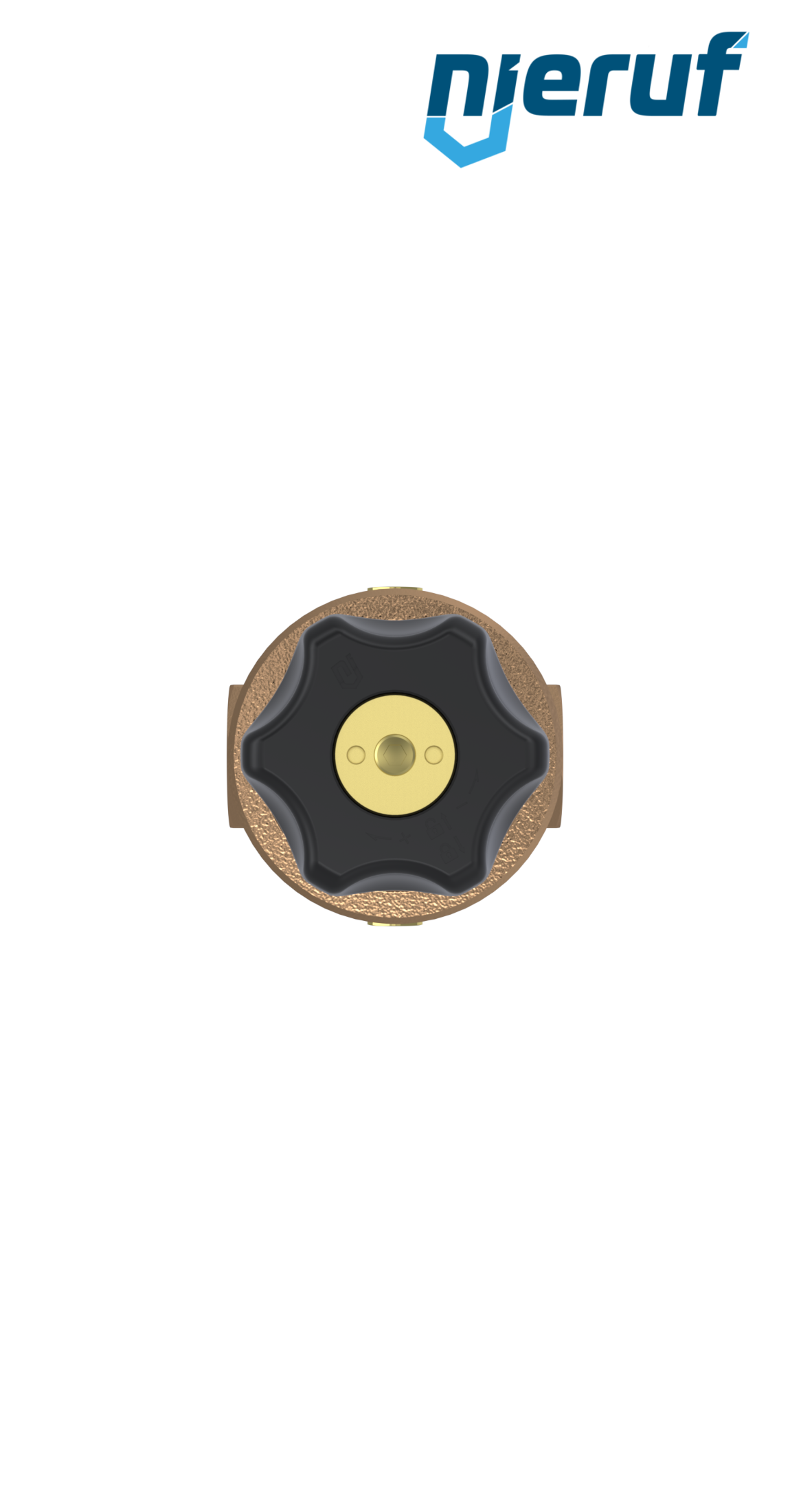

precision-pressure reducing valve with secondary venting 1" inch DM14 gunmetal FKM 0.5 - 15 bar
- Delivery time
- 3 - 5 working days
Equipment
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 16,0 bar
€12.61 VAT included.
hexagon nipple 1" inch male stainless steel 316
€4.64 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
precision-pressure reducing valve with secondary venting 1" inch DM14 gunmetal FKM 0.5 - 15 bar
precision-pressure reducing valve with secondary venting 1" inch female thread made of gunmetal FKM for neutral gaseous media, set pressure 0.5 - 15 bar
| product | precision-pressure reducing valve |
|---|---|
| type | DM14 |
| manufacturer | NieRuf |
| diameter | 1" inch |
| connection | female thread |
| material | gunmetal |
| seal | FKM |
| media | neutral gaseous media |
| temperature | -10°C up to +120°C |
| range of adjustment | 0.5 - 15 bar |
| max. inlet pressure | 60,0 bar |
| design | straightway form |
| installation position | any position |
| SIL - safety integrity level | SIL 2 |
| product feature | membrane-pressure reducing valve with supporting ring. Pressure adjustment about not rising spindle and manometer connection 1/4" |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
precision-pressure reducing valve with secondary venting 1" inch DM14 gunmetal FKM 0.5 - 15 bar
Article no.
: DM14020005
product:
precision-pressure reducing valve
type:
DM14
manufacturer:
NieRuf
diameter:
1" inch
connection:
female thread
material:
gunmetal
seal:
FKM
media:
neutral gaseous media
temperature:
-10°C up to +120°C
range of adjustment:
0.5 - 15 bar
max. inlet pressure:
60,0 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
membrane-pressure reducing valve with supporting ring. Pressure adjustment about not rising spindle and manometer connection 1/4"
