ED01000102
proportional motorised valve ED01 3/8" inch stainless steel 1.4404 FKM/FPM 4 - 20 mA
- Delivery time
- in stock
Equipment
hexagon nipple 3/8" inch male stainless steel 316
€2.02 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
NIERUF-SERVICE

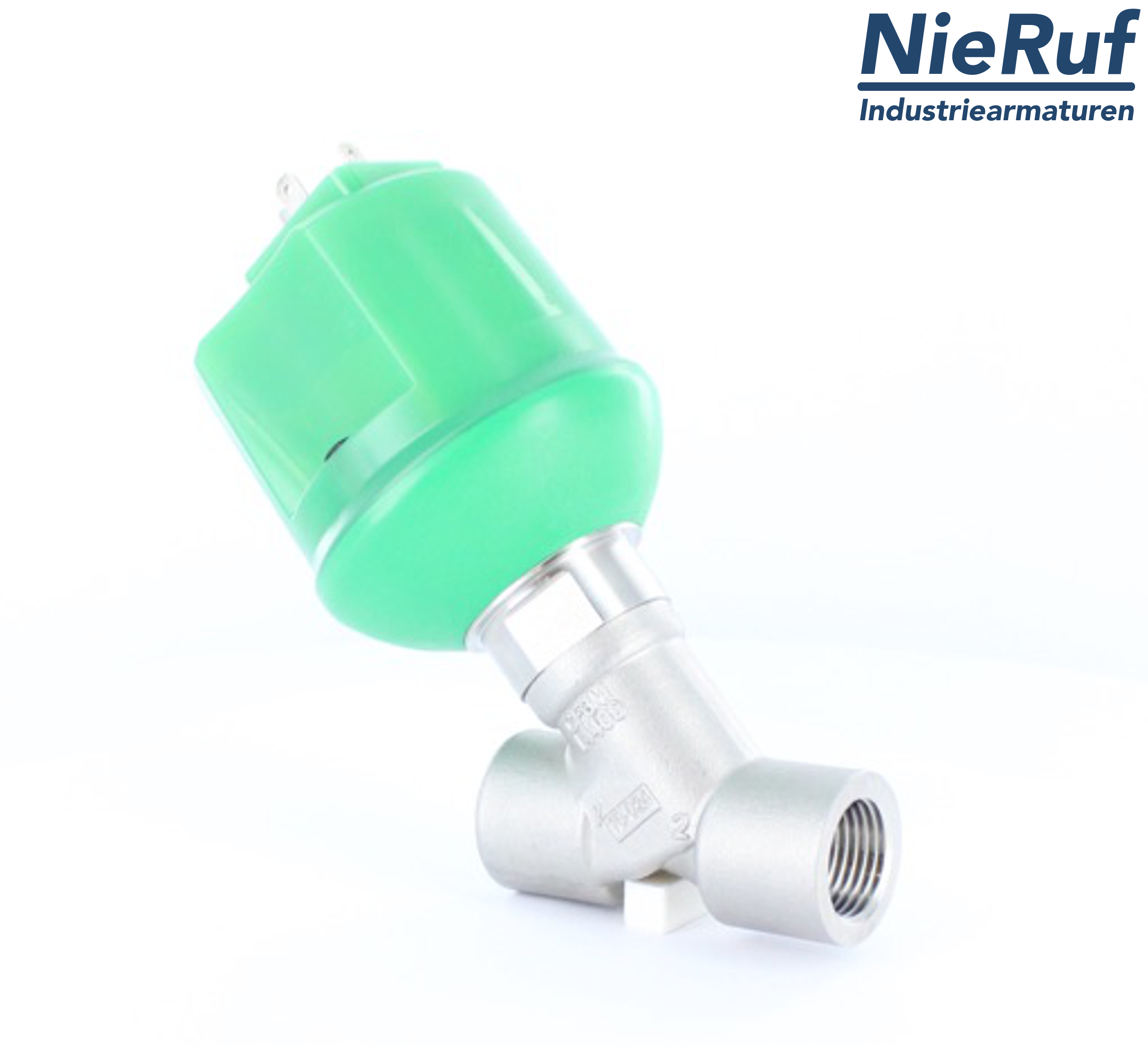

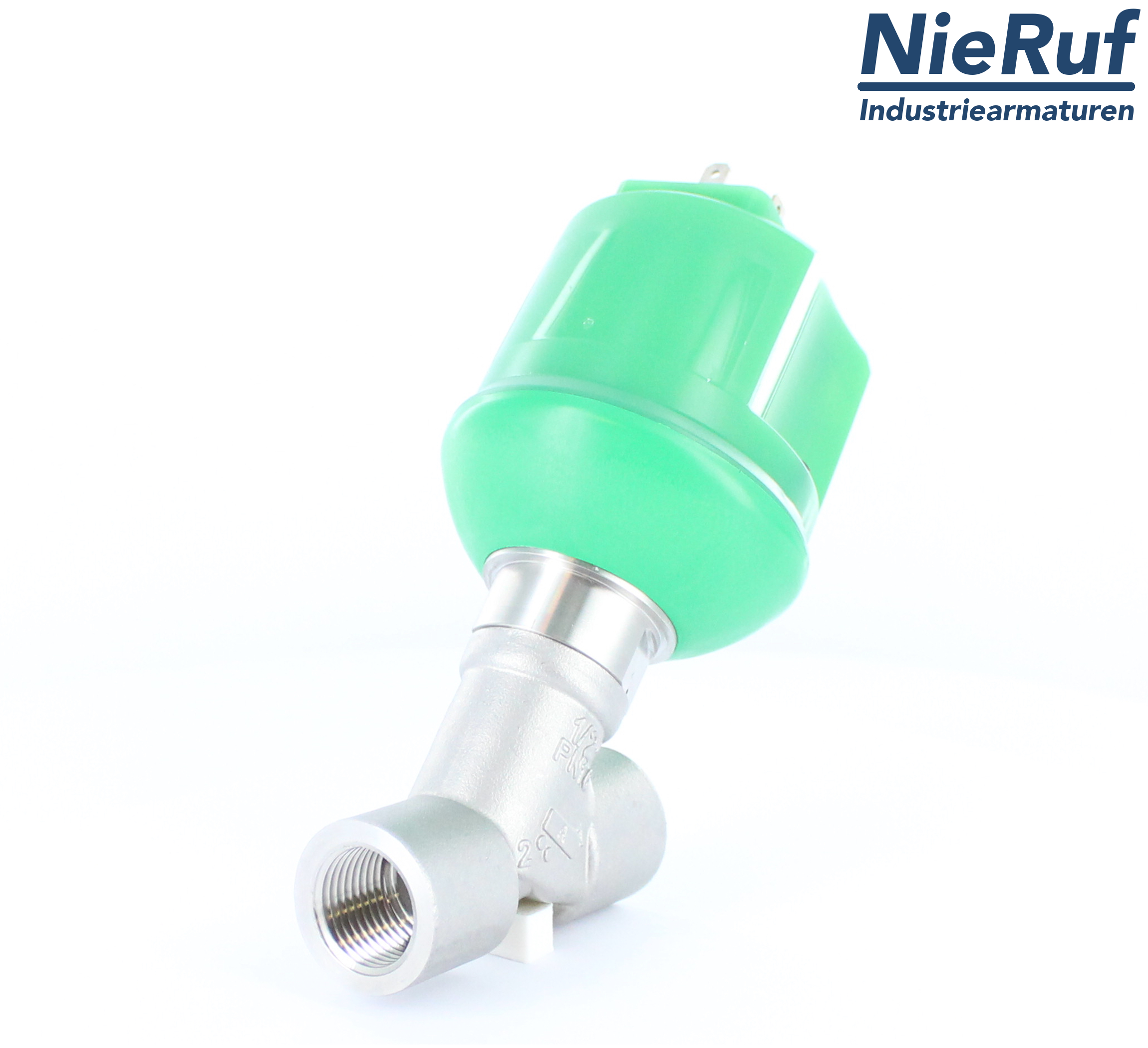

proportional motorised valve ED01 3/8" inch stainless steel 1.4404 FKM/FPM 4 - 20 mA
proportional motorised valve 3/8" inch made of stainless steel to control the flow in the system up to 2700 l/h with an setpoint of 4 - 20 mA FKM/FPM
| product | proportional motorised valve |
|---|---|
| type | ED01 |
| manufacturer | NieRuf |
| design | electric actuation |
| diameter | 3/8" inch |
| connection | female thread BSP-P |
| body material | stainless steel 1.4404 |
| media | liquid & gaseous |
| temperature media | -10°C up to +90°C (with steam up to +145°C) |
| ambient temperature | -10°C up to +50°C (with 145°C steam up to +40°C) |
| pressure range | 0 - 10 bar |
| seal | FKM/FPM |
| enclosure protection | IP65 |
| setpoint | 4 - 20 mA |
| KVS | 2700 l/h |
| voltage | 24V DC (+/- 10%) |
| actuating time | <1,3 s full opening & closing |
| display | LED open: green | closed: orange) |
| mounting position | any |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
proportional motorised valve ED01 3/8" inch stainless steel 1.4404 FKM/FPM 4 - 20 mA
Article no.
: ED01000102
product:
proportional motorised valve
type:
ED01
manufacturer:
NieRuf
design:
electric actuation
diameter:
3/8" inch
connection:
female thread BSP-P
body material:
stainless steel 1.4404
media:
liquid & gaseous
temperature media:
-10°C up to +90°C (with steam up to +145°C)
ambient temperature:
-10°C up to +50°C (with 145°C steam up to +40°C)
pressure range:
0 - 10 bar
seal:
FKM/FPM
enclosure protection:
IP65
setpoint:
4 - 20 mA
KVS:
2700 l/h
voltage:
24V DC (+/- 10%)
actuating time:
<1,3 s full opening & closing
display:
LED open: green | closed: orange)
mounting position:
any
