DM22000003

steam pressure reducing valve low pressure DN15 type DM22 stainless steel PTFE / EPDM / FEPM 0.3 - 2.0 bar

€1,045.00*

€1,243.55 VAT included.

*Prices excl. VAT plus shipping costs

Delivery time: 3 - 5 working days

Equipment

FD01000103

flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400

€1.60*

€1.90 VAT included.

VS01000103

joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 stainless steel

€4.00*

€4.76 VAT included.

Resistance check

×

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE

24 months warranty

Certified

Downloads

3D model

Datasheet

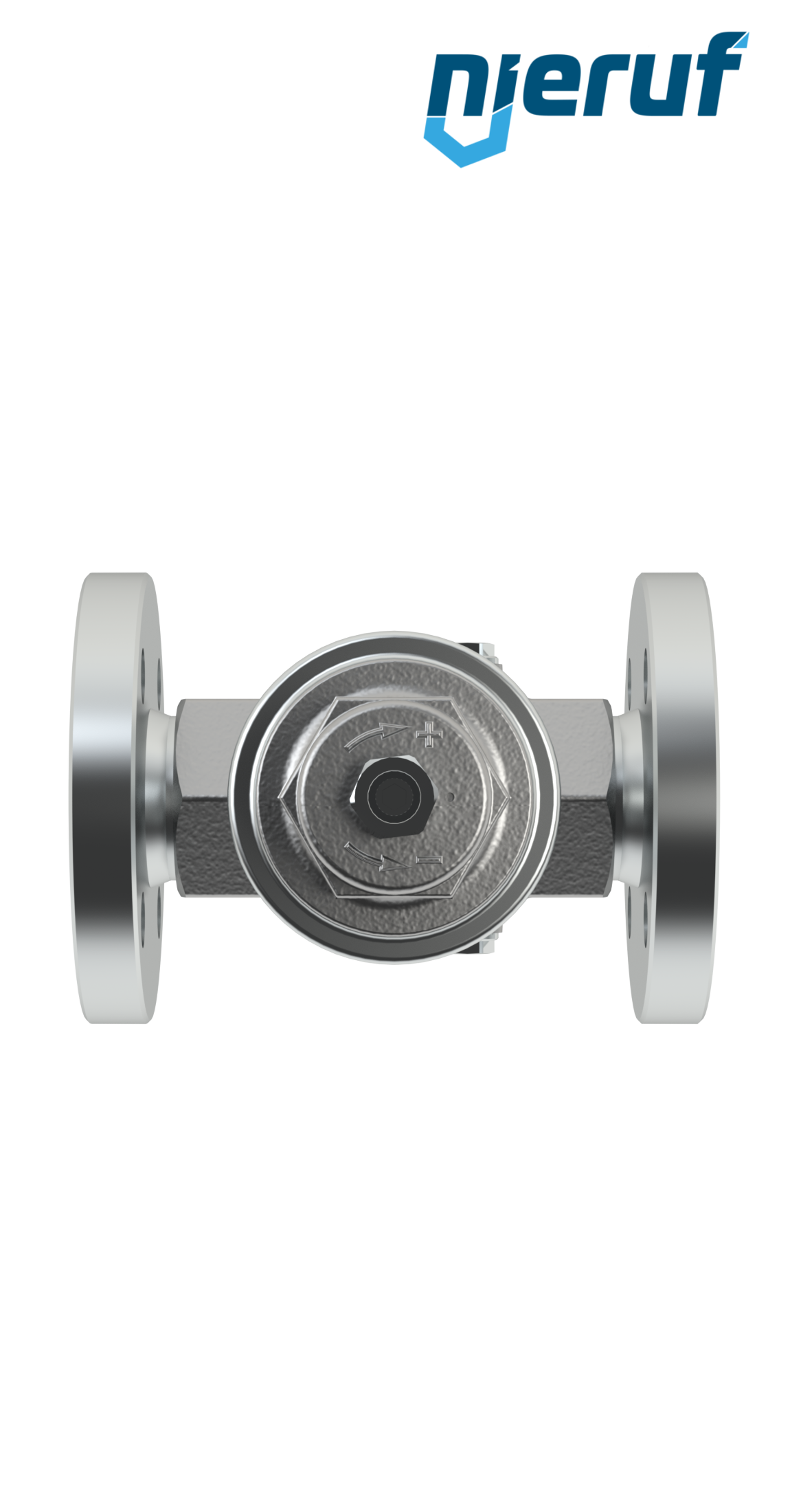

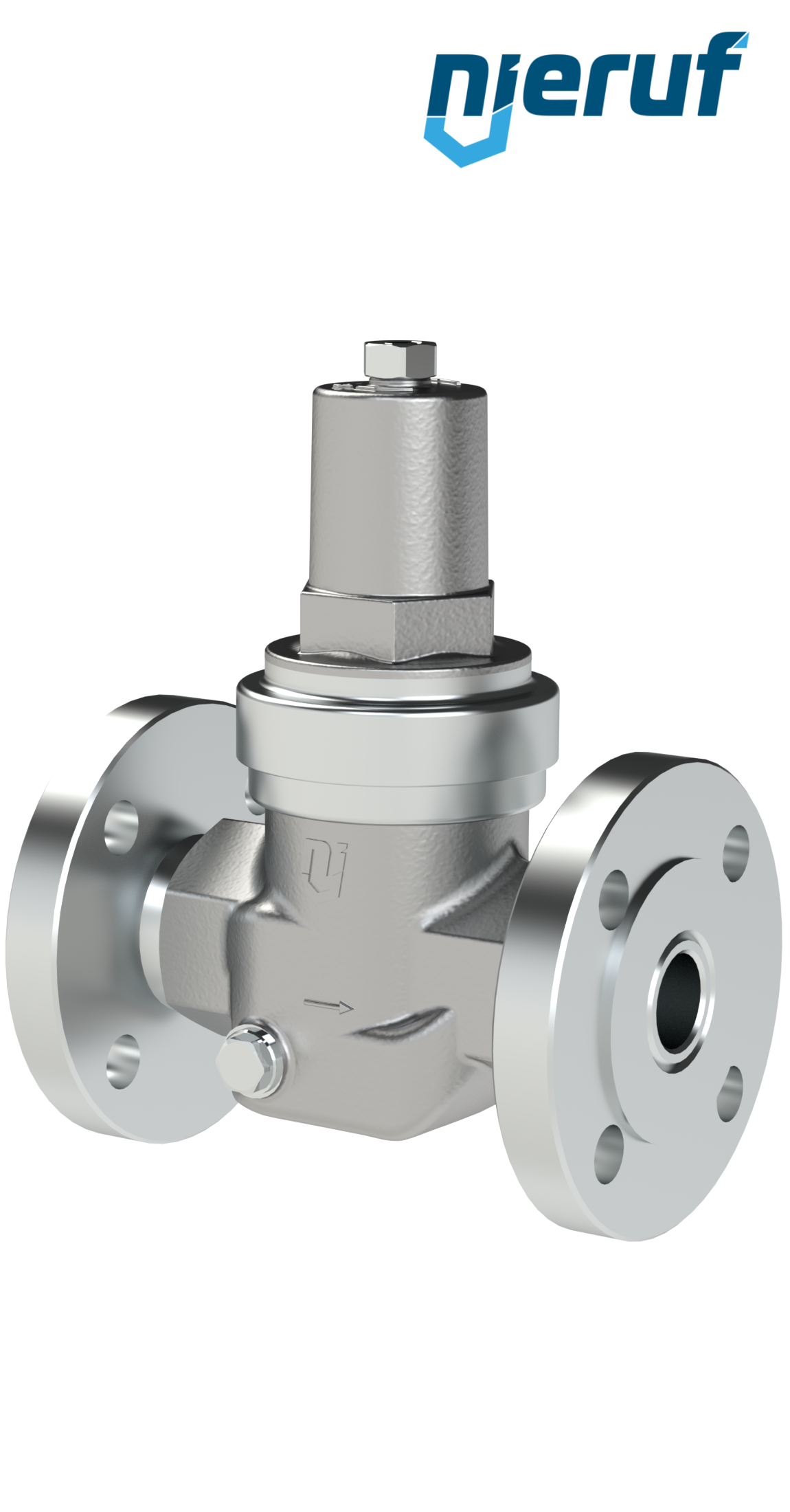

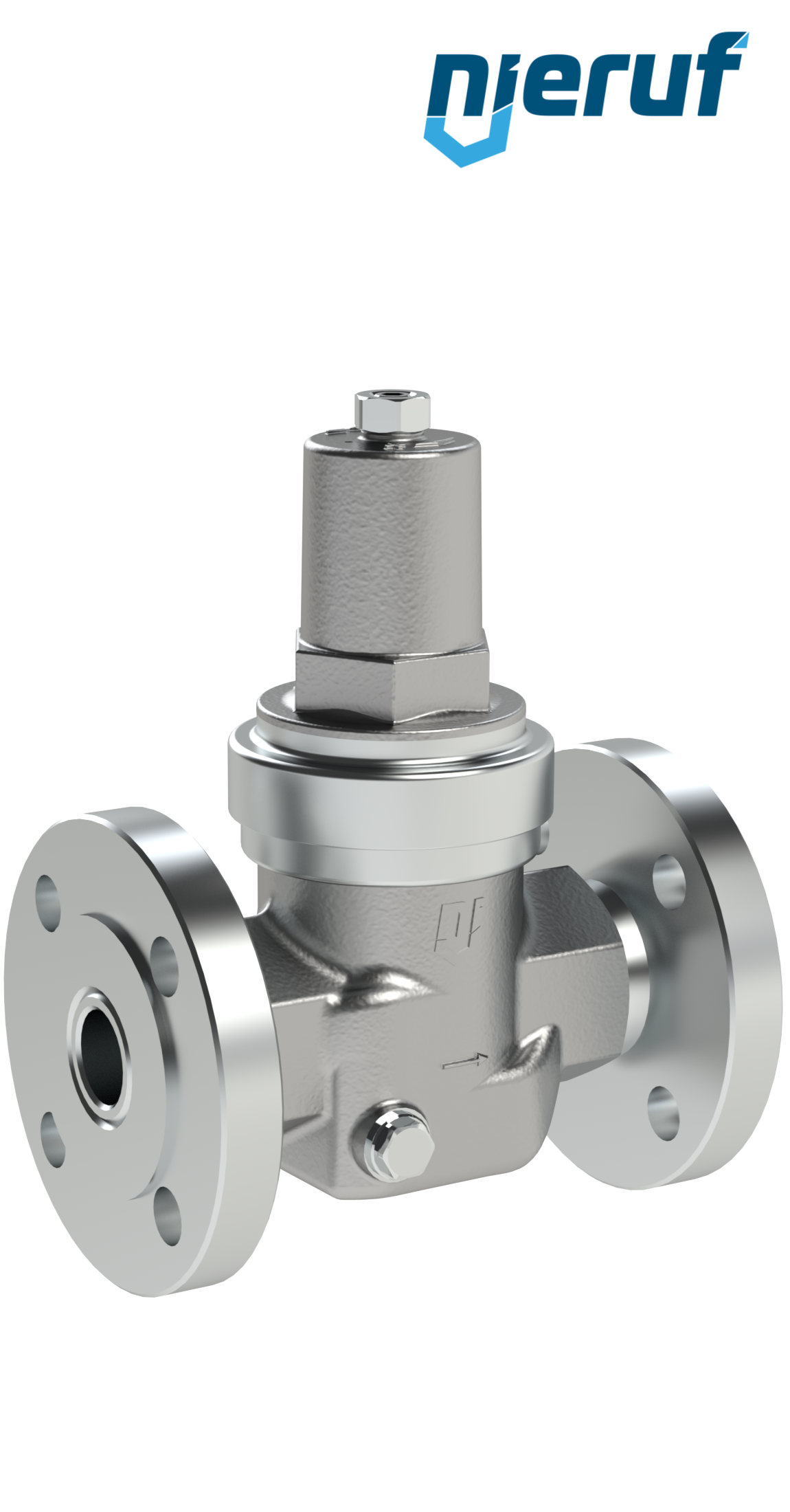

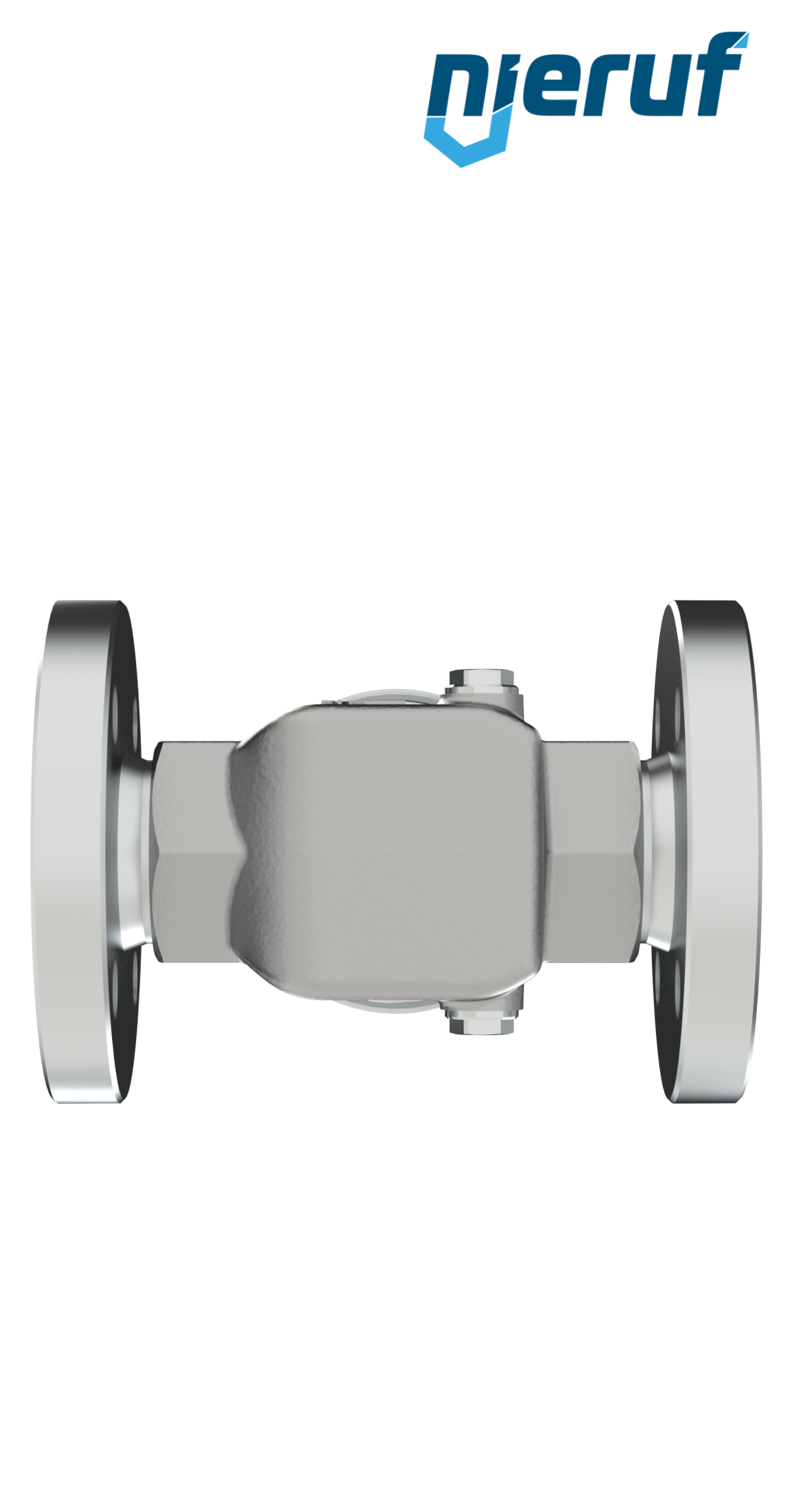

steam pressure reducing valve low pressure DN15 type DM22 stainless steel PTFE / EPDM / FEPM 0.3 - 2.0 bar

steam pressure reducing valve low pressure DN15 flange acc. DIN EN 1092 made of stainless steel seal PTFE / EPDM / FEPM for steam and hot water, set pressure 0.3 - 2.0 bar

product	steam pressure reducing valve low pressure
type	DM22
manufacturer	NieRuf
diameter	DN15
connection	flange acc. DIN EN 1092
material	stainless steel
seal	PTFE / EPDM / FEPM
media	steam and hot water
temperature	+20°C up to +200°C
range of adjustment	0.3 - 2.0 bar
max. inlet pressure	16 bar
design	straightway form
installation position	any position, preferably spring bonnet upside down
product feature	High quality pressure reducing valve made of stainless steel for steam. This version is piston-controlled, spring-loaded and inlet pressure relieved.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

steam pressure reducing valve low pressure DN15 type DM22 stainless steel PTFE / EPDM / FEPM 0.3 - 2.0 bar

Article no. : DM22000003
product: steam pressure reducing valve low pressure
type: DM22
manufacturer: NieRuf
diameter: DN15
connection: flange acc. DIN EN 1092
material: stainless steel
seal: PTFE / EPDM / FEPM
media: steam and hot water
temperature: +20°C up to +200°C
range of adjustment: 0.3 - 2.0 bar
max. inlet pressure: 16 bar
design: straightway form
installation position: any position, preferably spring bonnet upside down
product feature: High quality pressure reducing valve made of stainless steel for steam. This version is piston-controlled, spring-loaded and inlet pressure relieved.
