automatic-flange stainless steel ball valve DN20 stainless steel 1.4408 PK07 pneumatic actuator GD48 made of aluminium (mode of function: GD = double acting)
ball valve with actuator DN20 stainless steel 1.4408 PK05 pneumatic actuator GD040 made of aluminium (mode of function: GD = double acting)
compact-automatic-flange ball valve DN20 stainless steel 1.4408 EK07 electronic actuator L10 - series L (low voltage) for 24V AC/DC
Automatic-ball valves DN15 - 1/2" inch brass CW617N nickel plated EK01 electronic actuator L10 - series L (low voltage) 24V AC/DC
automatic ball valves DN15 - 1/2" inch brass CW617N nickel plated PK01 pneumatic actuator GD032 made of aluminium (mode of function: GD = double acting)
pneumatic-ball valve DN8 - 1/4" inch stainless steel 1.4408 PK02 pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting)
3 way automatic-ball valve 24-240V DN32 - 1 1/4" inch made of stainless steel 1.4408 with reduced port design with L drilling for liquid and gaseous media
automatic-flange stainless steel ball valve DN25 stainless steel 1.4408 PK07 pneumatic actuator GD48 made of aluminium (mode of function: GD = double acting)
automatic-ball valve DN50 - 2" inch stainless steel 1.4408 EK02 electronic actuator S55 - series S for 24V AC/DC
automatic-flange stainless steel ball valve DN25 stainless steel 1.4408 PK07 pneumatic actuator GS78 made of aluminium (mode of function: GS = single acting)

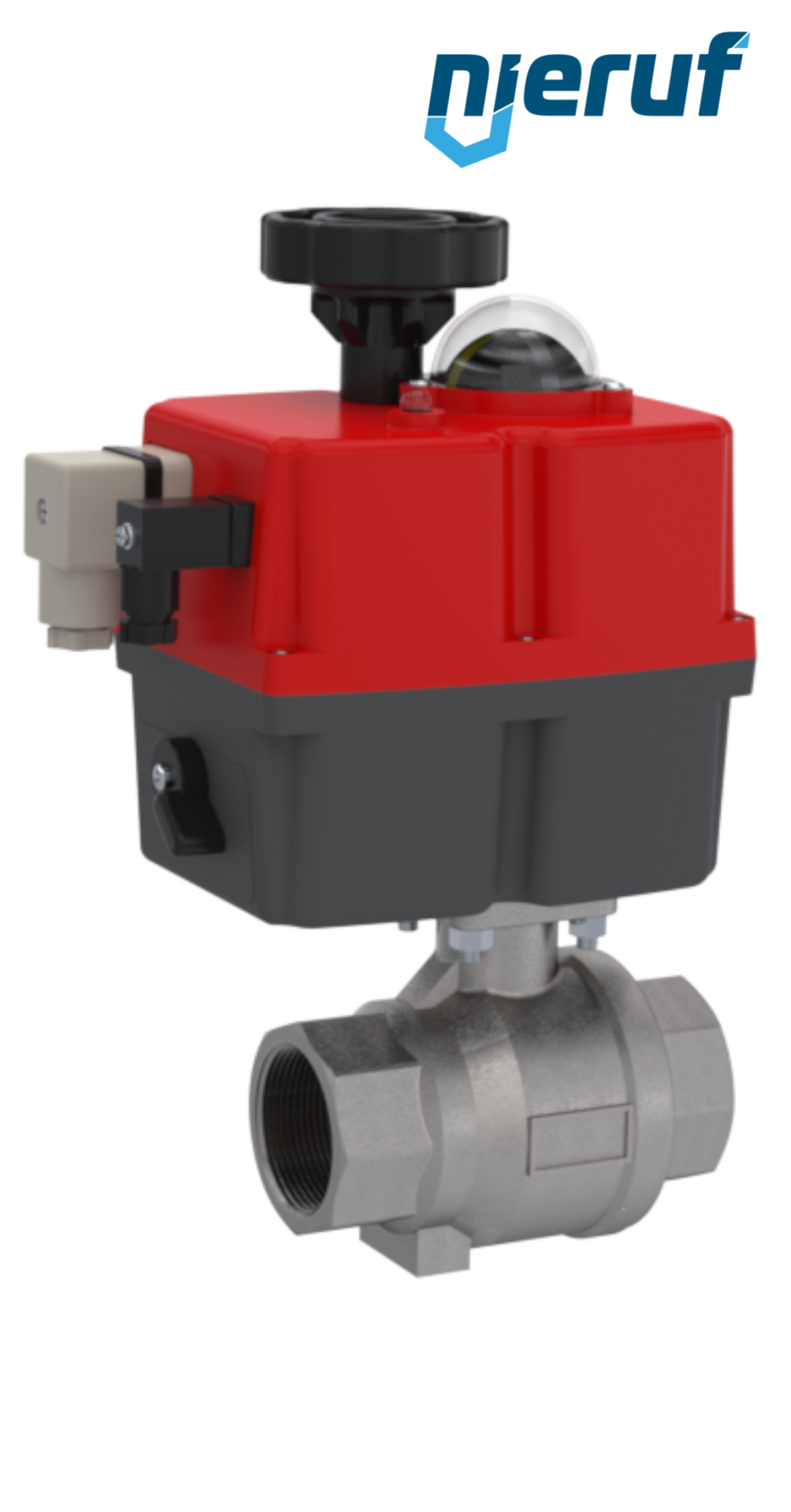

automatic-ball valve DN50 - 2" inch stainless steel 1.4408 EK02 electronic actuator S55 - series S for 24-240V AC/DC
automatic ball valves DN15 - 1/2" inch brass CW617N nickel plated PK01 pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting)
pneumatic-ball valve DN8 - 1/4" inch stainless steel 1.4408 PK02 pneumatic actuator GD032 made of aluminium (mode of function: GD = double acting)
3 way automatic-ball valve 24-240V DN50 - 2" inch made of stainless steel 1.4408 with reduced port design with L drilling for liquid and gaseous media
pneumatic-ball valve DN50 - 2" inch stainless steel 1.4408 PK02 pneumatic actuator GD063 made of aluminium (mode of function: GD = double acting)

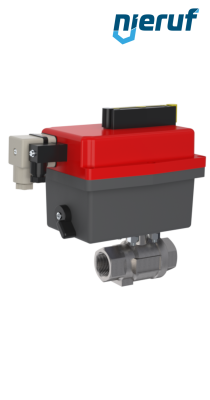

automatic-ball valve DN8 - 1/4" inch stainless steel 1.4408 EK02 electronic actuator H10 - series H (high voltage) for 85-240V AC/DC
3 way automatic-ball valve 24-240V DN40 - 1 1/2" inch made of stainless steel 1.4408 with reduced port design with T drilling for liquid and gaseous media
Automatic-ball valves DN15 - 1/2" inch brass CW617N nickel plated EK01 electronic actuator H10- series H (high voltage) for 110-240V AC+DC
automatic-ball valve DN8 - 1/4" inch stainless steel 1.4408 EK02 electronic actuator L10 - series L (low voltage) for 24V AC/DC
automatic-ball valve DN25 - 1" inch stainless steel 1.4408 EK02 electronic actuator S20 - series S for 24V AC/DC
automatic ball valves DN25 - 1" inch brass CW617N nickel plated PK01 pneumatic actuator GD032 made of aluminium (mode of function: GD = double acting)
3 way automatic-ball valve 24-240V DN10 - 3/8" inch made of stainless steel 1.4408 with reduced port design with T drilling for liquid and gaseous media
pneumatic-ball valve DN10 - 3/8" inch stainless steel 1.4408 PK02 pneumatic actuator GD032 made of aluminium (mode of function: GD = double acting)

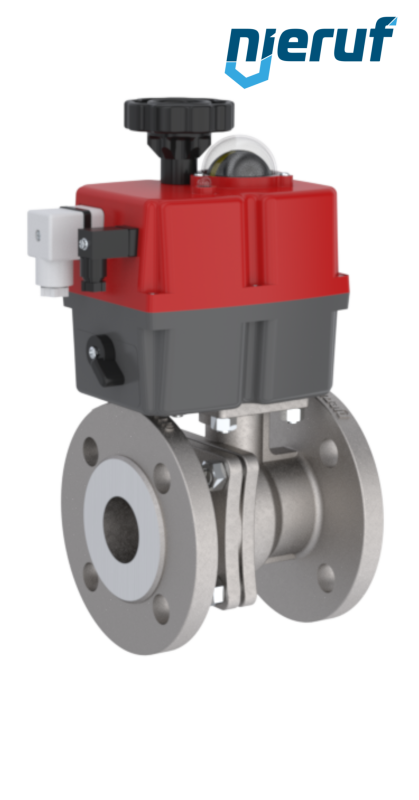

automatic-flange ball valve DN32 - 1 1/4" inch stainless steel 1.4408 EK05 electronic actuator S20 - series S for 24-240V AC/DC
To allow for maximum flexibility within your system, our ball valves with actuator come in several varieties and made from different materials. The ball valve with the pneumatic actuator is regulated using a compressed air system. It comes single-acting or double-acting. If you need an electrical actuator for your ball valve, we can provide it within the power range of 12-24 volt DC voltage or 85-240 volt AC voltage. The electrical actuator comes with electrical torque limiting, automatic voltage detection, and an additional manual override for safety reasons. Just as the regular ball valve, the ball valve with the rotary actuator is made of brass, spheroidal graphite iron or stainless steel. The electrical actuator is based on a synthetic body, the pneumatic actuator within an oxidized aluminium body. Naturally, we deliver our ball valves with actuator with flange or thread connections in all common sizes and with a variety of seals. Some of the actuators are certified up to protection class IP65- IP67, please find additional information on our data sheets on ball valves.
Several aspects determine the right choice of the ball valve and matching actuator. First, you should decide on a pneumatic or electrical actuator. Second, you need to determine whether or not the medium lubricates. Now you can choose the right ball valve with the actuator. We would love to help you make the right choice! So if you do not find the right ball valve or actuator in our shop, we would love to come up with a specific solution that fits your needs.
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Commitment engenders trust. We stand by our word and are convinced that as a result not only our customers but also everyone we work with can rely on us.
We always strive to find the best solution for our customers. It is our goal and incentive to have completely satisfied customers.
Technical and commercial expertise form the basis for developing qualified solutions tailored precisely to the needs of our customers.
We do not adhere to rigid guidelines but instead focus on the individual wishes and needs of our customers. They are more important to us than internal company processes.
