PK06000006
compact-automatic-flange ball valve DN32 PK06 pneumatic actuator double acting
- Delivery time
- 3 - 5 working days
Equipment
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€80.09 VAT included.
5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC
€47.60 VAT included.
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
€2.50 VAT included.
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel
€8.09 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

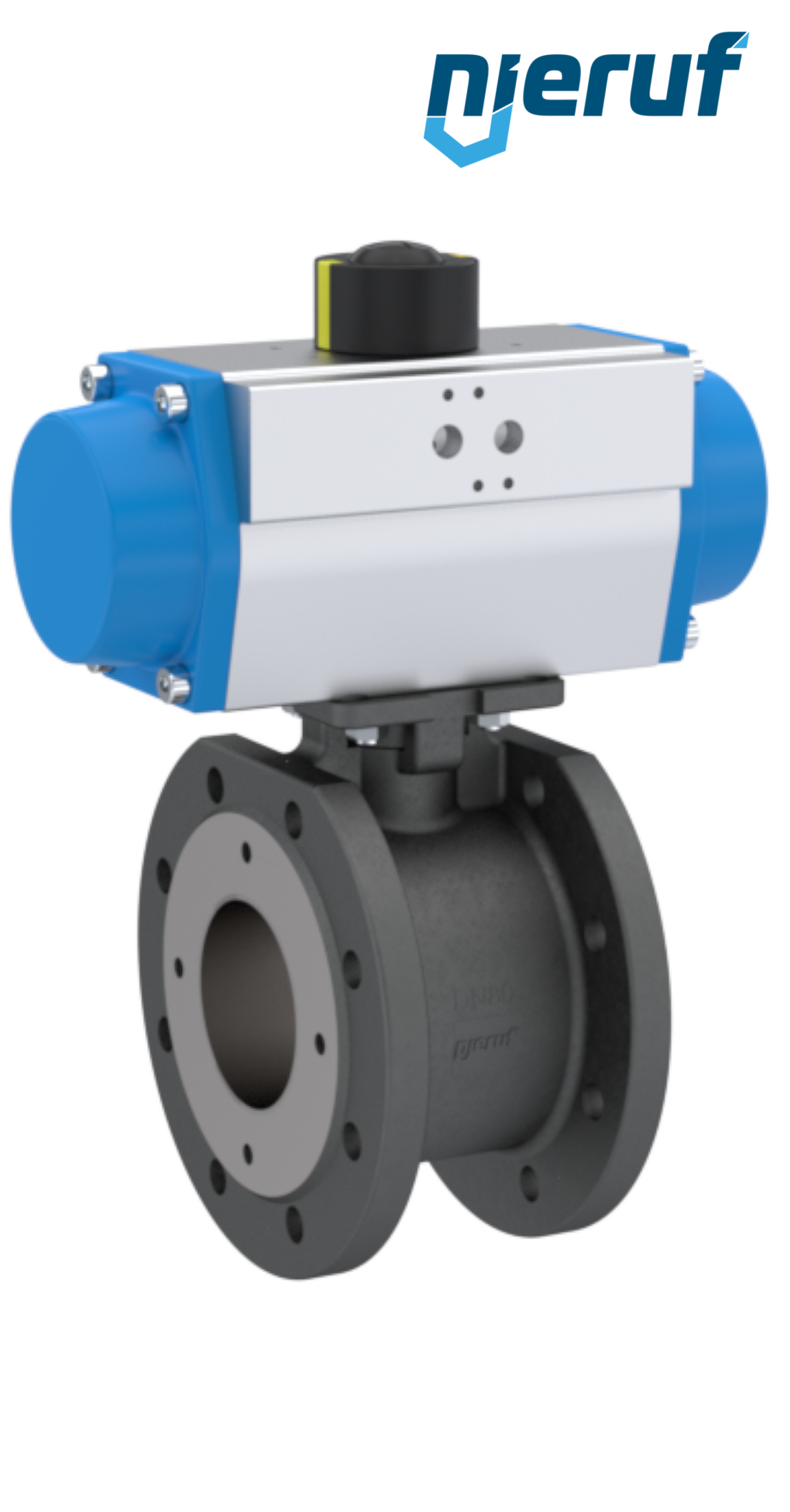

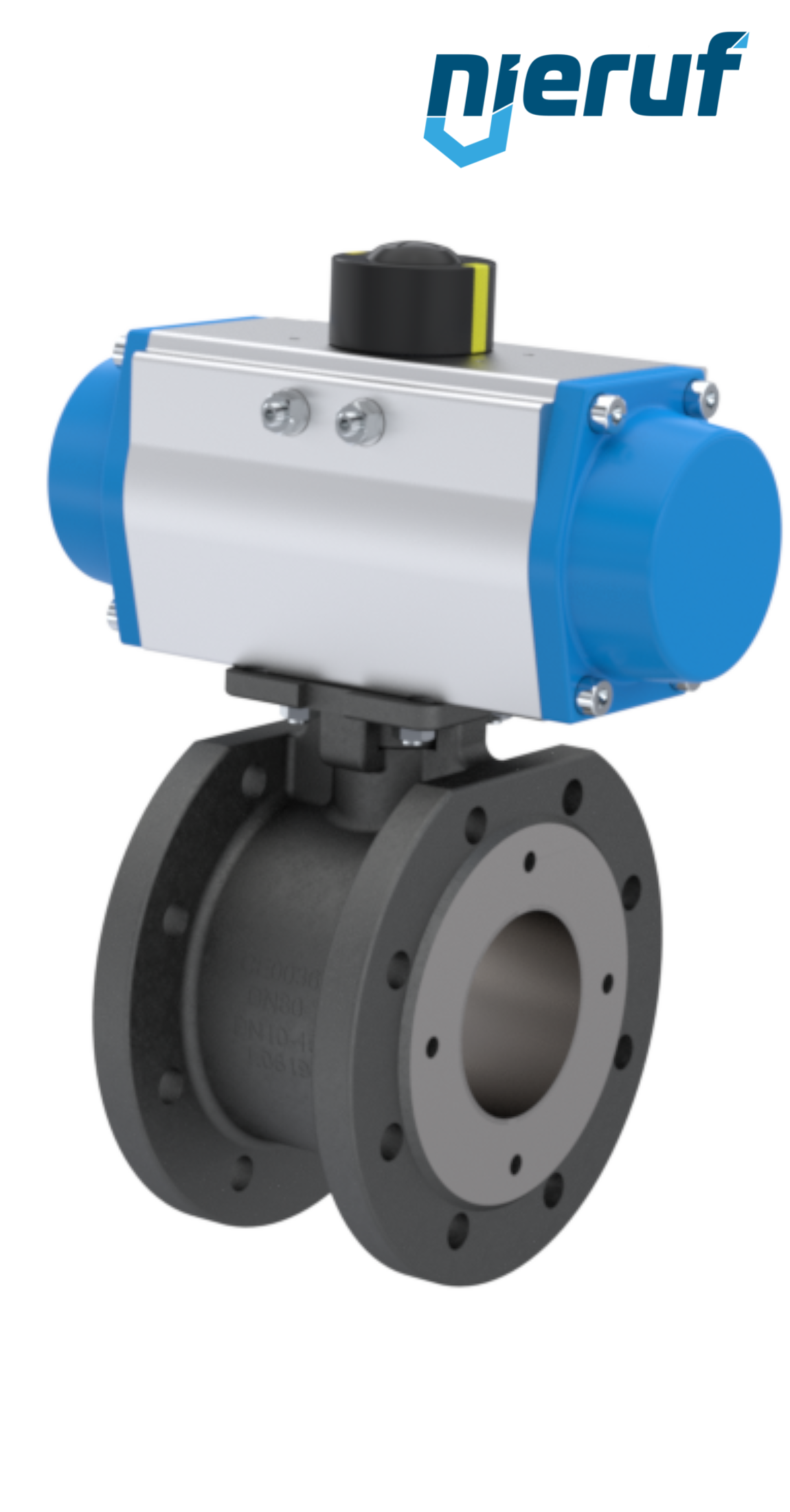

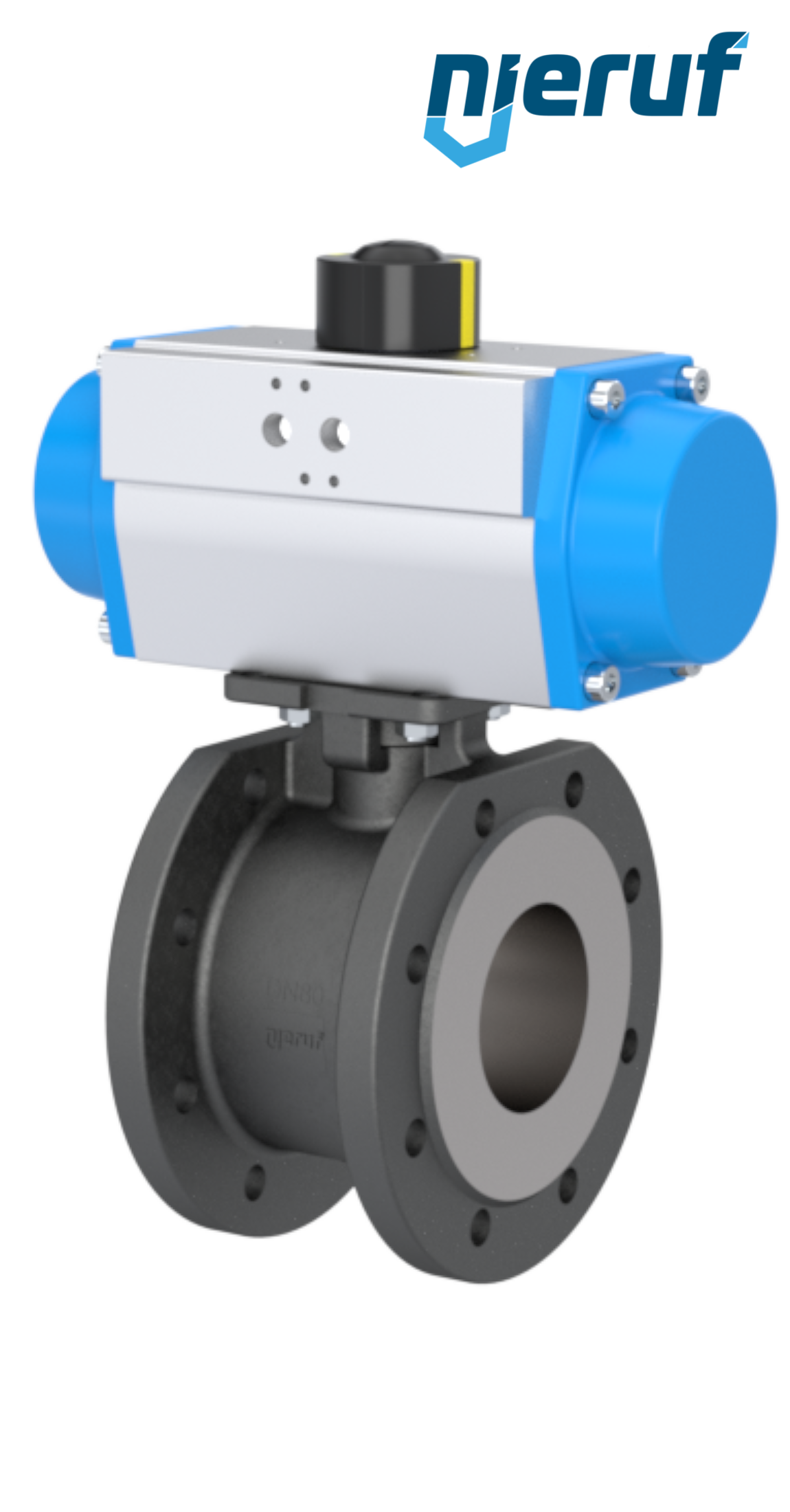

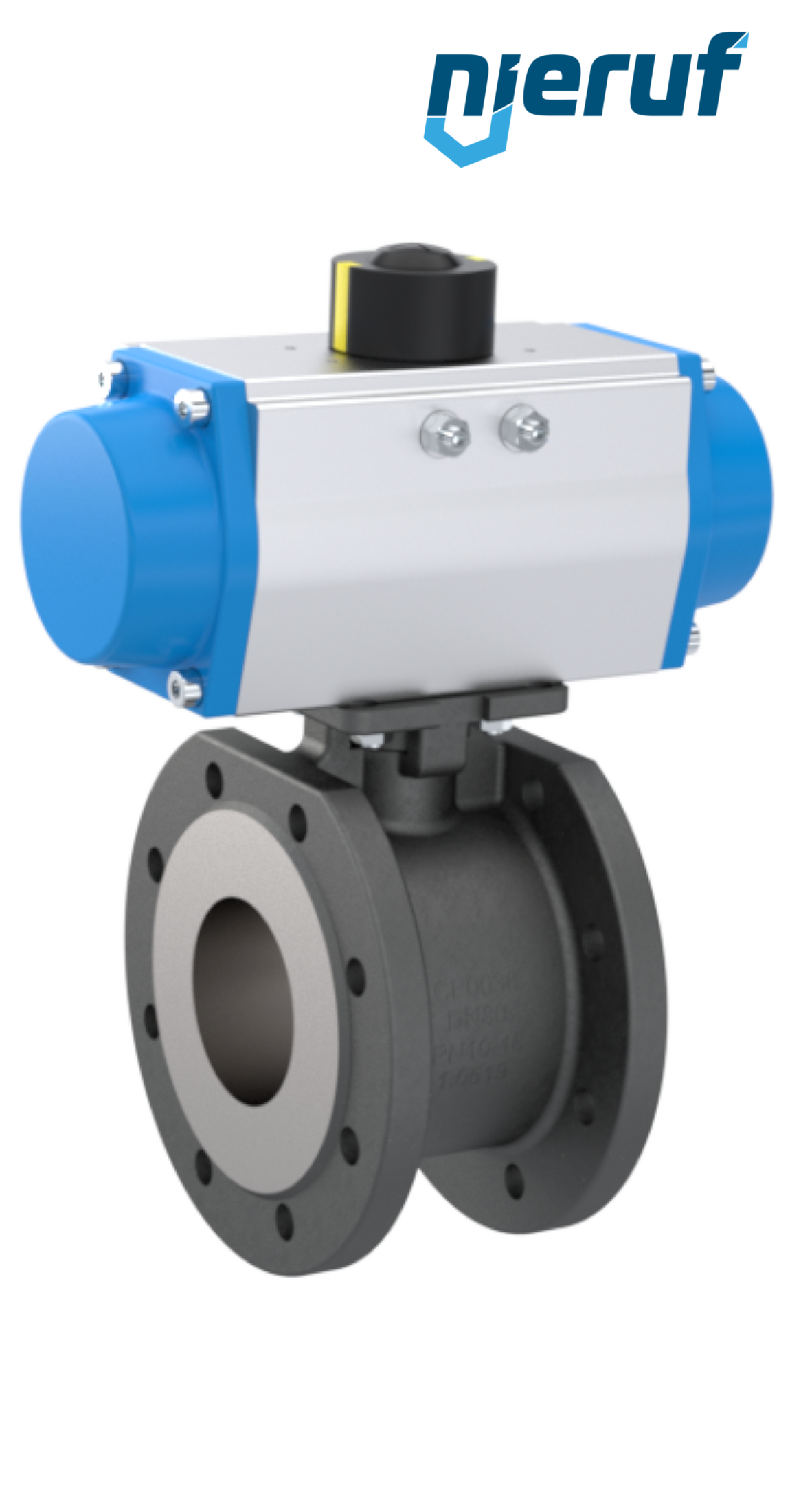

compact-automatic-flange ball valve DN32 PK06 pneumatic actuator double acting
compact-automatic-flange ball valve DN32 carbon steel 1.0619 PK06 pneumatic actuator GD052 made of aluminium (mode of function: GD = double acting)
| product | compact-automatic-flange ball valve |
|---|---|
| type | PK06 |
| manufacturer | NieRuf |
| diameter | DN32 - 1 1/4" inch |
| connection | flange dimensions acc. DIN EN 1092-1 PN 16 |
| Seal steam | PTFE |
| media | liquid and gaseous media |
| temperature | ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| max. pressure | PN16 |
| design | flange ball valve with pneumatic actuator (double acting) |
| body material | carbon steel 1.0619 |
| ball material | stainless steel 1.4308 |
| ball seal | PTFE + TFM |
| length | 60mm |
| actuator | pneumatic actuator GD052 made of aluminium (mode of function: GD = double acting) |
| actuator informations | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| authorized for | TA Luft |
| product description | This high quality automatic-carbon steel ball valves with pneumatic actuator (GD = double acting) with direct mounting of magnetic valves per Namur is also possible. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
compact-automatic-flange ball valve DN32 PK06 pneumatic actuator double acting
Article no.
: PK06000006
product:
compact-automatic-flange ball valve
type:
PK06
manufacturer:
NieRuf
diameter:
DN32 - 1 1/4" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN16
design:
flange ball valve with pneumatic actuator (double acting)
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4308
ball seal:
PTFE + TFM
length:
60mm
actuator:
pneumatic actuator GD052 made of aluminium (mode of function: GD = double acting)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for:
TA Luft
product description:
This high quality automatic-carbon steel ball valves with pneumatic actuator (GD = double acting) with direct mounting of magnetic valves per Namur is also possible.
Equipment
rotary elbow male adaptor parallel EF07 stainless steel FKM G1/4" D6mm
Delivery time: 3 - 5 working days
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel
Delivery time: in stock
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
Delivery time: in stock
