AN02000000
pneumatic actuator AN02 double acting 90° GD-032
- Delivery time
- in stock
Equipment
Position indicator Typ PR01 for pneumatic actuator
€69.26 VAT included.
5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC
€47.60 VAT included.
manual operated Block form flow regulator for 5/2 way valve
€71.04 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

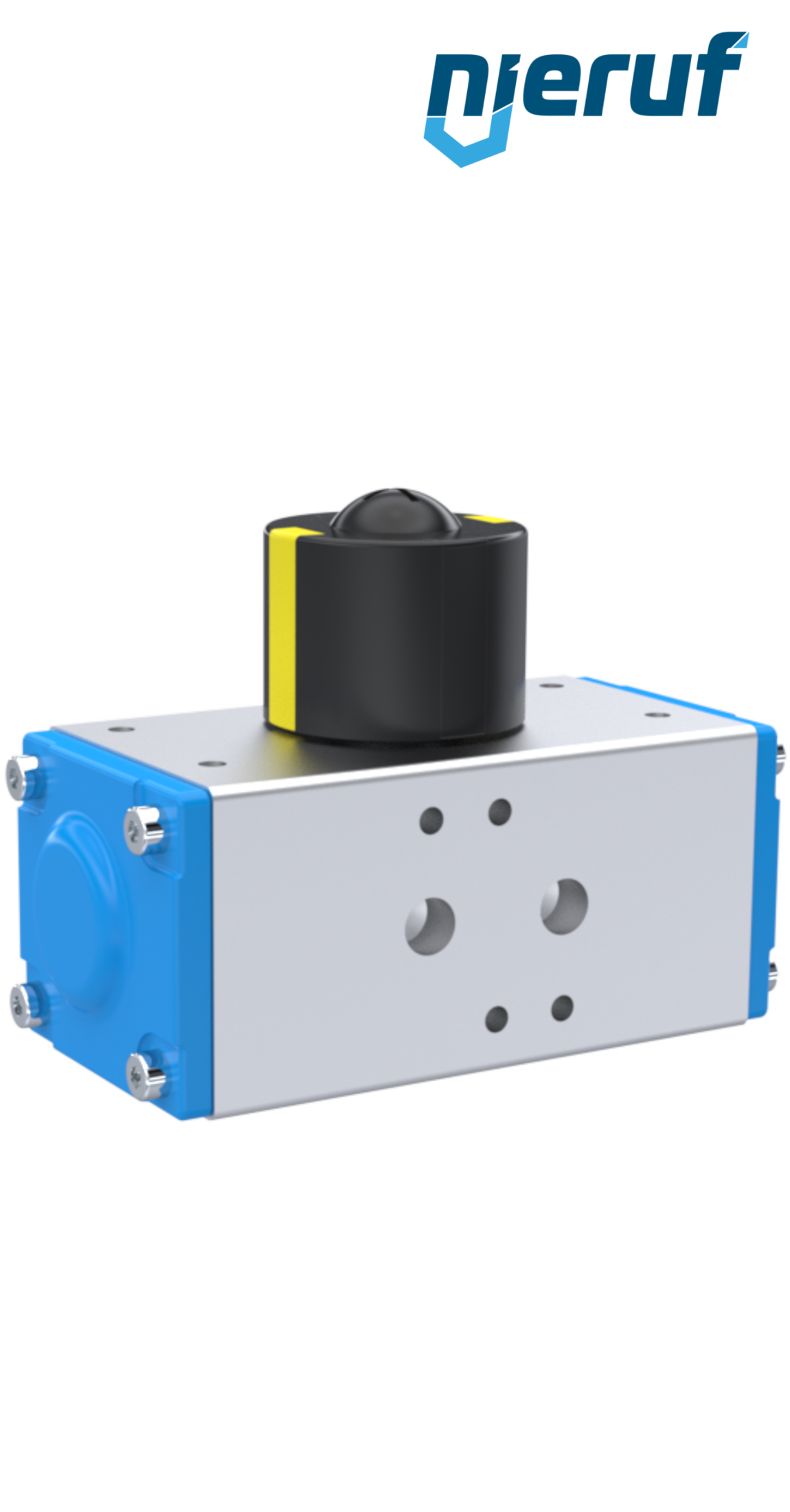

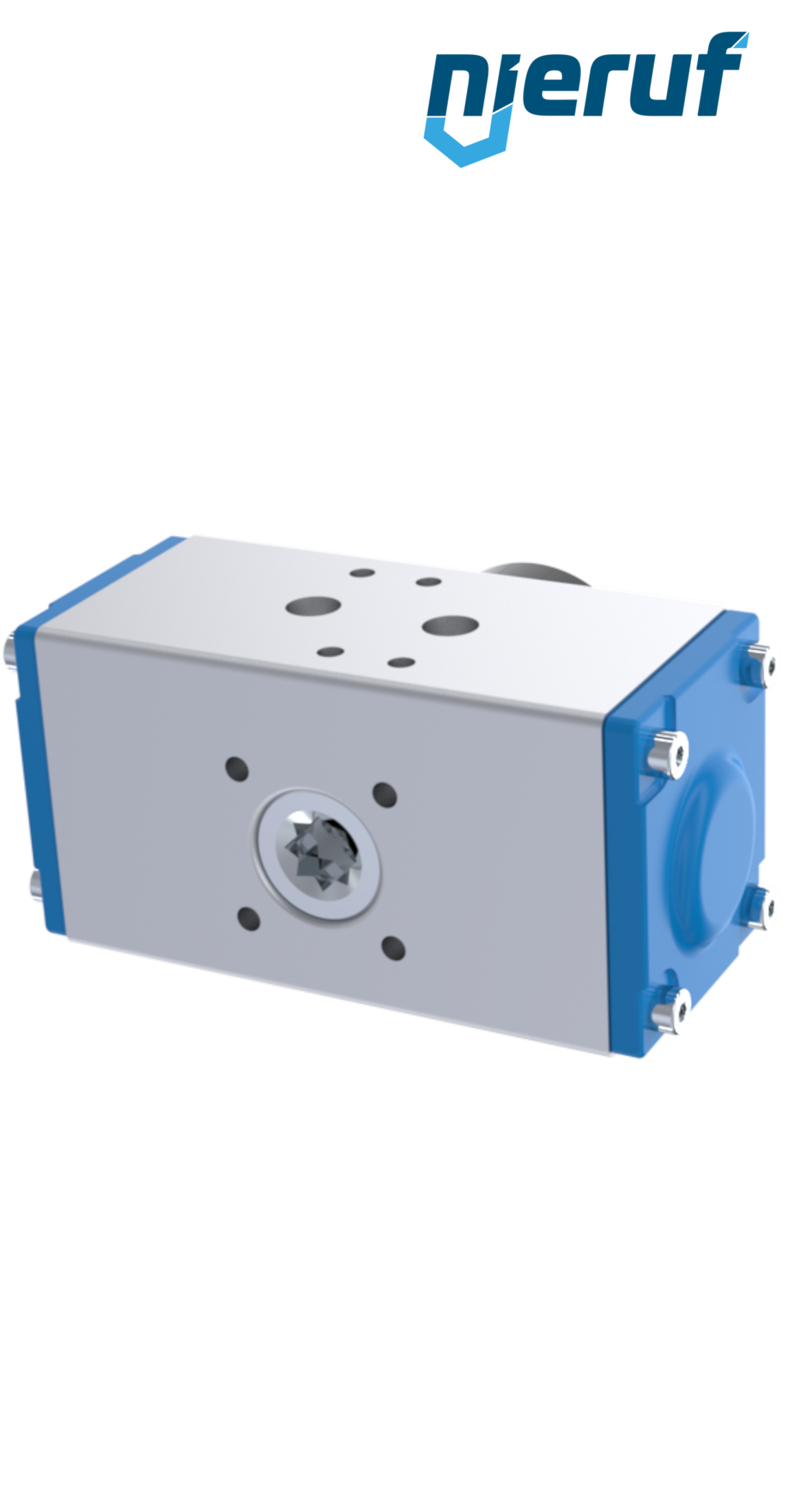

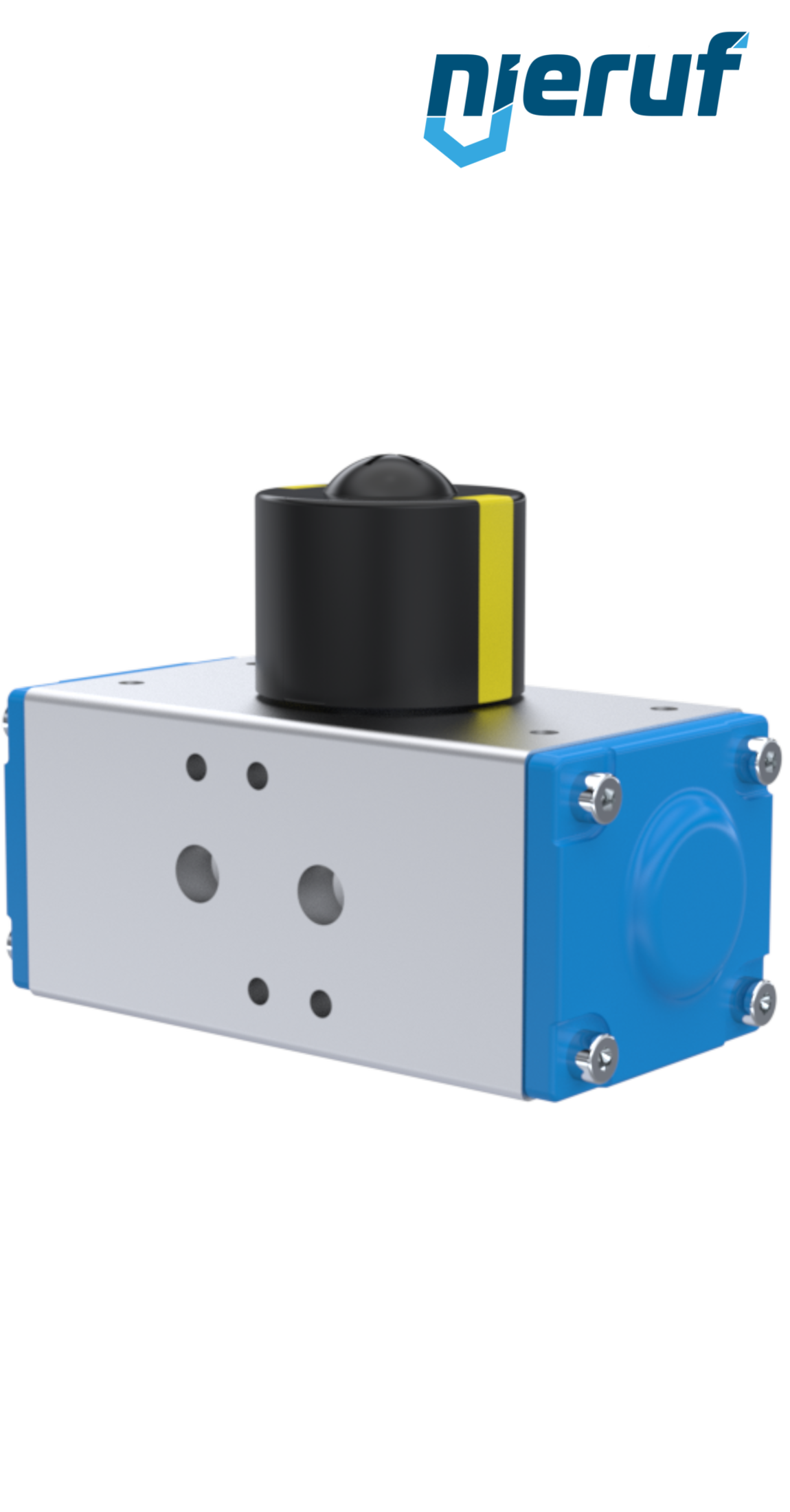

pneumatic actuator AN02 double acting 90° GD-032
pneumatic actuator double acting with 90° pan angle GD-032 according to ISO 5211 F03 for control pressure 2 to 8 bar
| product | pneumatic actuator |
|---|---|
| type | AN02 |
| manufacturer | NieRuf |
| SIL - safety integrity level | SIL 3 |
| ISO flange 5211 | F03 |
| stem intake | 9mm |
| screw depth | 11mm |
| torque | min. 3Nm up to max. 12Nm |
| drive sprocket design | octagon |
| temperature | - 20°C up to +80°C |
| length | 114mm |
| width | 55mm |
| high | 86mm |
| actuator | GD-032 |
| actuator informations | Robust, high-quality design for aggressive environments. Adjustable by 5° |
| body material | Hard-coated aluminum alloy |
| function | double acting |
| swivel angle | 90° |
| control pressure | 2 bar to 8 bar |
| seals | NBR |
| control medium | filtered air with regard to residual oil content, dust and water, at least according to DIN ISO 8573-1: 2010 [7:-:4] |
| installation position | any position |
| product description | Compact, double-acting, pneumatic actuator for controlling and regulating valves. Preset swing angle 90° with optical position indicator. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pneumatic actuator AN02 double acting 90° GD-032
Article no.
: AN02000000
product:
pneumatic actuator
type:
AN02
manufacturer:
NieRuf
SIL - safety integrity level:
SIL 3
ISO flange 5211:
F03
stem intake:
9mm
screw depth:
11mm
torque:
min. 3Nm up to max. 12Nm
drive sprocket design:
octagon
temperature:
- 20°C up to +80°C
length:
114mm
width:
55mm
high:
86mm
actuator:
GD-032
actuator informations:
Robust, high-quality design for aggressive environments. Adjustable by 5°
body material:
Hard-coated aluminum alloy
function:
double acting
swivel angle:
90°
control pressure:
2 bar to 8 bar
seals:
NBR
control medium:
filtered air with regard to residual oil content, dust and water, at least according to DIN ISO 8573-1: 2010 [7:-:4]
installation position:
any position
product description:
Compact, double-acting, pneumatic actuator for controlling and regulating valves. Preset swing angle 90° with optical position indicator.
